Name: HARTING 09330322701 Pin inset Han® E 32 + PE Screws 1 pc(s) Single
Brand: HARTING
SKU: 3007997

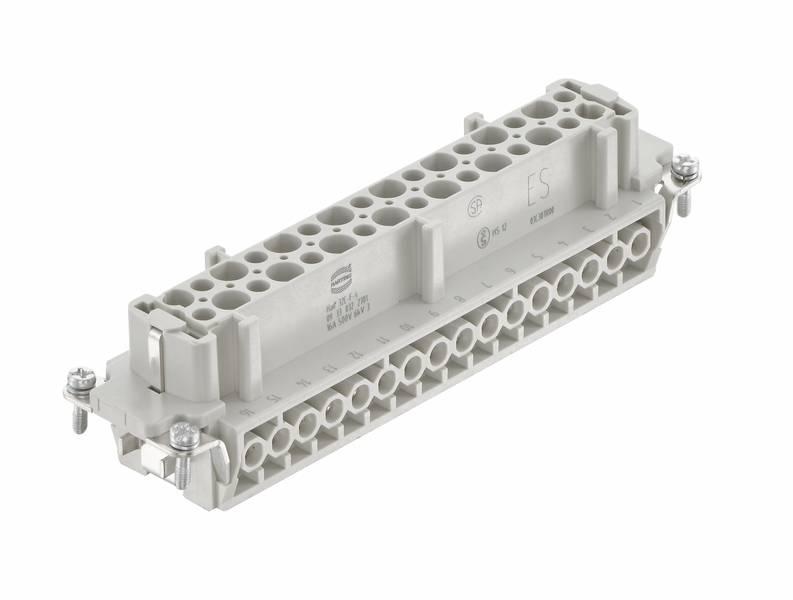

A grey electrical connector with multiple socket connections and screw terminals, suitable for industrial wiring.

Packaging type

Single

Product type

Pin inset

Series

Han® E

Connection

Screws

Total no. of pins

32 + PE

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Series: HAN E®
Connection type: screw terminals.
Number of contacts: 32
Rated current ‌ 16 A
Insulation resistance >1010 Ω
Continuous resistance ≤ 1 mΩ
Temperature limit: -40 ... +125 °C
Mating cycles ≥ 500
Material application: Polycarbonate (PC)
Colour use: RAL 7032 (pebble gray)
Material contacts: Copper alloy
Silver-plated contact surface
Material flammability class acc. To UL 94: V-0
Standards IEC 60664-1; IEC 61984
Net weight: 156.01 g
Rated voltage: 500 V
Dimensioning surge voltage: 6 kV
Pollution level 3
Gender: Jack
Conductor cross-section: AWG 18 ... AWG 14
Wire stripping length: 7.5 mm
Tightening torque: ‌0,5 Nm
Frame size L32 B
Approvals DNV GL
PE contact: Yes
Rated voltage according to UL: 600 V.
Rated voltage according to CSA 600 V
With wire protection: Yes

Packaging type: Single

Product type: Pin inset

Factory colour: Pebble grey (RAL 7032)

Series: Han® E

Features: with screw connection
+ wire protection

Connection: Screws

Number of pins: 32

Total no. of pins: 32 + PE

Core cross section (min.): 0.75 mm²

Core cross section (max.): 2.5 mm²

Mating cycles: 500

Series: Han E®

Content: 1 pc(s)

Max. temperature: 125 °C

Min. temperature: -40 °C

Leading contact (PE): Yes

: 500 V

: TRUE

: 32

: Bus

: -40-125 °C

: V0

: 6 kV

: Screw connection

: Silver

: 3

: FALSE

: 0.75-2.5 mm²

: 0.75-2.5 mm²

: TRUE

: Other copper alloys

: Thermoplastic

: 16 A

: Thermoplastic

: 500

: 32

UKCA: yes
