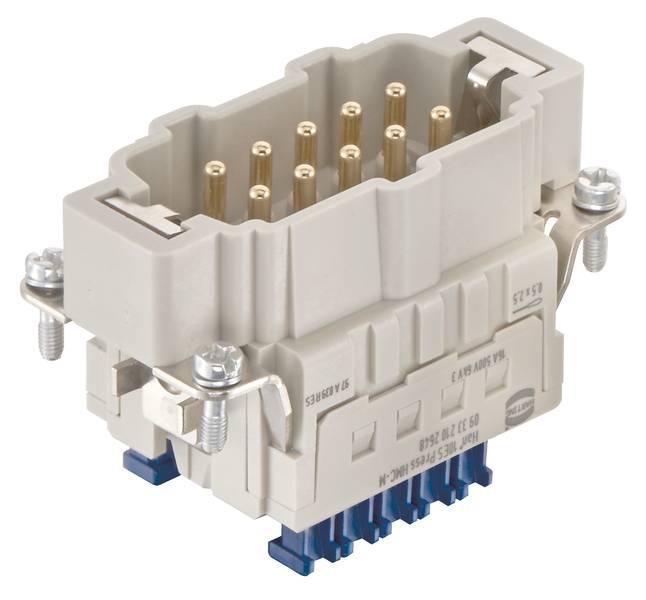

HARTING 09332102648 Pin inset Han® 10B 10 + PE Spring-loaded heavy duty connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® 10B
Connection
Spring-loaded heavy duty connector
Total no. of pins
10 + PE
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Technical specifications
- Series: HAN® ES Press HMC
- Connection type: Spring-cage connection
- Number of contacts: 10
- Rated current 16 A
- Insulation resistance >1010 Ω
- Constant resistance: 3 mΩ
- Temperature limit: -40 ... +125 °C
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Contact surface: Gold-plated HMC
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 72.7 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Notes: Only for housing of high type; blue actuator
- Gender: Pen
- Conductor cross-section: AWG 26 ... AWG 14
- Stripping length: 9 ... 11 mm
- Colour Accessories: Blue
- Design size 10 B
- Approvals DNV GL
- PE contact: Yes
- Mating cycles with other HMC components: ≥ 10,000
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® 10B
- Features
gold-plated contacts
- Connection
Spring-loaded heavy duty connector
- Number of pins
10
- Total no. of pins
10 + PE
- Mating cycles
≥ 10.000
- Series
Han® ES Press HMC
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
500 V
FALSE
10
Pin
-40-125 °C
V0
6 kV
Spring clamp connection
Gold
3
FALSE
0.14-2.5 mm²
0.14-2.5 mm²
TRUE
Other copper alloys
Thermoplastic
16 A
Thermoplastic
10000
10
Documents & Downloads
Datasheet
Datasheet 3007933 HARTING 09332102648 Pin inset Han® 10B 10 + PE Spring-loaded heavy duty connector 1 pc(s)
Datasheet 3007933 HARTING 09332102648 Pin inset Han® 10B 10 + PE Spring-loaded heavy duty connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007933 HARTING 09332102648 Pin inset Han® 10B 10 + PE Spring-loaded heavy duty connector 1 pc(s)
Description
Inserts, cage spring connector, pin, polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 10 B, contacts 10
