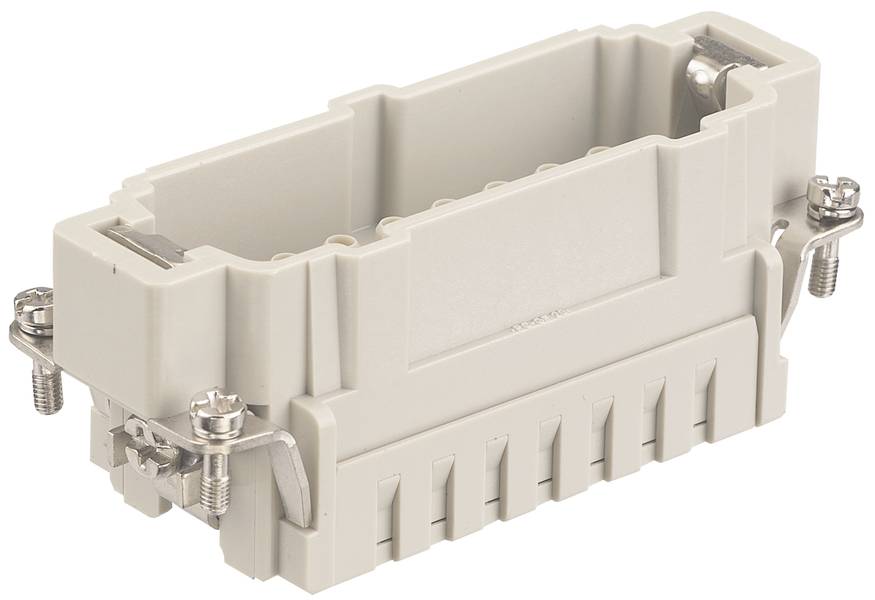

HARTING 09332162602 Pin inset Han® E 16 + PE Crimp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Series
Han® E
Connection
Crimp
Total no. of pins
16 + PE
Datasheet (PDF)
Technical specifications
- Series: HAN E® HMC
- Connection type: Crimp connection
- Number of contacts: 16
- Rated current 16 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 56.92 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Note: Please order crimp contacts separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: AWG 26 ... AWG 12
- Design size 16 B
- Approvals DNV GL
- PE contact: Yes
- Mating cycles with other HMC components: ≥ 10,000
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® E
- Connection
Crimp
- Number of pins
16
- Total no. of pins
16 + PE
- Mating cycles
≥ 10.000
- Series
Han E® HMC
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
500 V
FALSE
16
Pin
-40-125 °C
V0
6 kV
Crimp connection
Other
3
FALSE
0.14-4 mm²
0.14-4 mm²
TRUE
Other
Thermoplastic
16 A
Thermoplastic
10000
16
Documents & Downloads
Datasheet
Datasheet 3007883 HARTING 09332162602 Pin inset Han® E 16 + PE Crimp 1 pc(s) Piece
Datasheet 3007883 HARTING 09332162602 Pin inset Han® E 16 + PE Crimp 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007883 HARTING 09332162602 Pin inset Han® E 16 + PE Crimp 1 pc(s) Piece
Description
Inserts, Crimp connector, Pin, Polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 16 B, contacts 16
