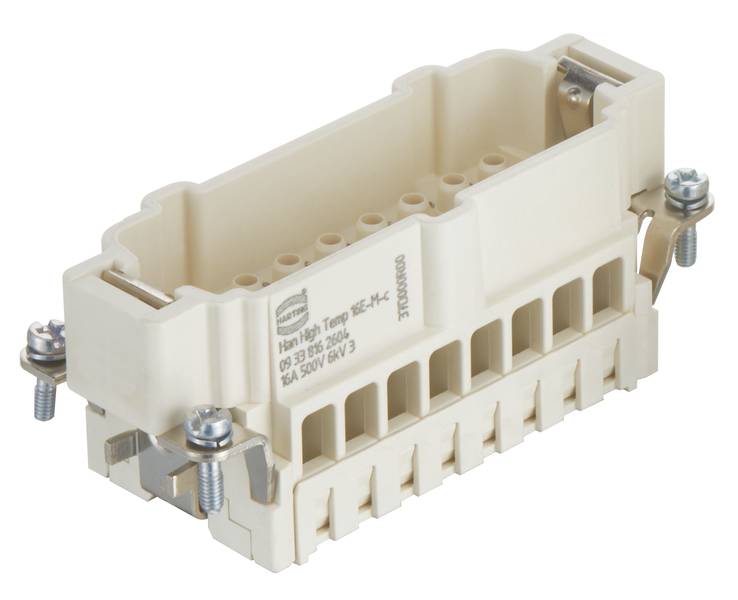

HARTING 09338162604 Pin inset Han® E 16 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® E
Connection
Crimp
Total no. of pins
16 + PE
Number of pins
16
Datasheet (PDF)
Technical specifications
- Series: HAN E® High Temp
- Connection type: Crimp connection
- Number of contacts: 16
- Rated current 16 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +200 °C with HAN® High Temp components
- Mating cycles ≥ 500
- Material application: Liquid-crystal polymer (LCP)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 68.4 g
- Rated voltage: 500 V
- Dimensioning surge voltage: 6 kV
- Pollution level 3
- Note: Please order crimp contacts separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: AWG 20 ... AWG 14
- Design size 16 B
- PE contact: Yes
- Product type
Pin inset
- Series
Han® E
- Connection
Crimp
- Number of pins
16
- Total no. of pins
16 + PE
- Mating cycles
500
- Series
Han E® High Temp
- Content
1 pc(s)
- Max. temperature
+200 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
500 V
FALSE
16
Pin
-40-200 °C
V0
6 kV
Crimp connection
Other
3
FALSE
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
Other
Thermoplastic
16 A
Thermoplastic
500
16
Documents & Downloads
Datasheet
Datasheet 3007841 HARTING 09338162604 Pin inset Han® E 16 + PE Crimp 1 pc(s)
Datasheet 3007841 HARTING 09338162604 Pin inset Han® E 16 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007841 HARTING 09338162604 Pin inset Han® E 16 + PE Crimp 1 pc(s)
Description
Inserts, crimp connector, pin, liquid crystal polymer (LCP), rated current 16 A, Size 16 B, contacts 16
