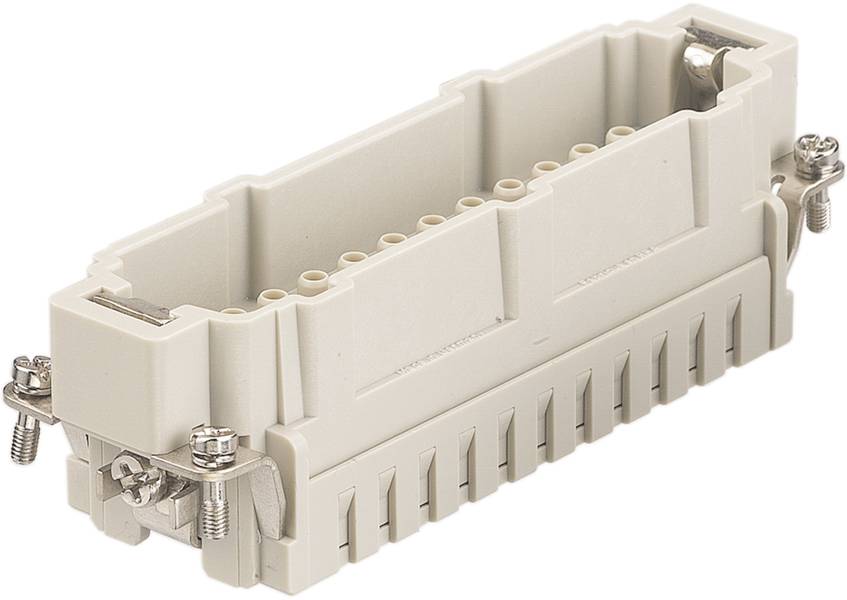

HARTING 09360242602 Pin inset 24 + PE Crimp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Connection
Crimp
Total no. of pins
24 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
Technical specifications
- Series: HAN® Ex
- Connection type: Crimp connection
- Number of contacts: 24
- Rated current 16 A
- Insulation resistance >1010 Ω
- Temperature limit: -20 ... +40 °C).
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Net weight: 74.7 g
- Rated voltage: 90 V
- Note: Caution! Can only be used in conjunction with HAN® Ex housings!
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 0.14 ... 4 mm².
- Design size 24 B
- PE contact: Yes
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Features
Complies with ATEX Ex standards
- Connection
Crimp
- Number of pins
24
- Total no. of pins
24 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
4 mm²
- Mating cycles
≥ 500
- Series
Han® Ex
- Content
1 pc(s)
- Max. temperature
+40 °C
- Min. temperature
-20 °C
- Leading contact (PE)
Yes
90 V
FALSE
24
Pin
-20-40 °C
V0
Crimp connection
Other
FALSE
0.14-4 mm²
0.14-4 mm²
TRUE
Other
Thermoplastic
16 A
Thermoplastic
500
24
Documents & Downloads
Datasheet
Datasheet 3007889 HARTING 09360242602 Pin inset 24 + PE Crimp 1 pc(s) Piece
Datasheet 3007889 HARTING 09360242602 Pin inset 24 + PE Crimp 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3007889 HARTING 09360242602 Pin inset 24 + PE Crimp 1 pc(s) Piece
Description
Inserts, Crimp connector, Pin, Polycarbonate (PC), RAL 7032 (pebble gray), Rated current 16 A, size 24 B, contacts 24
