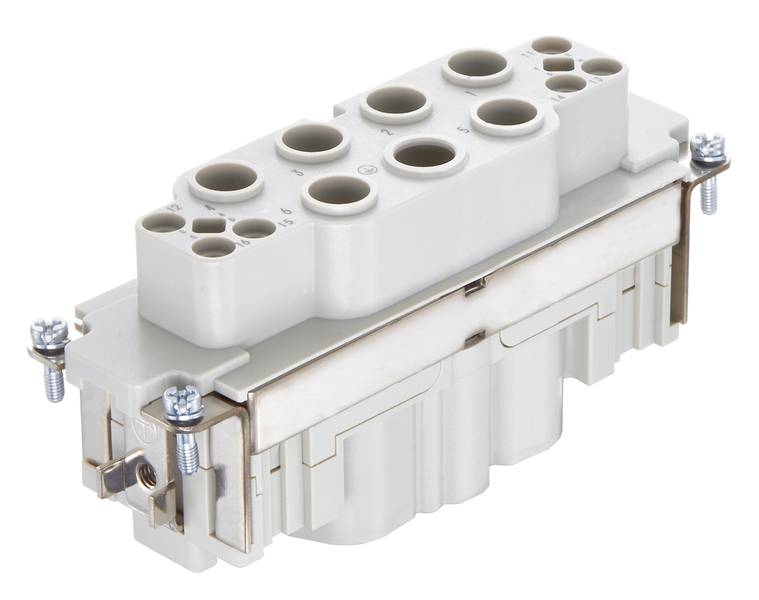

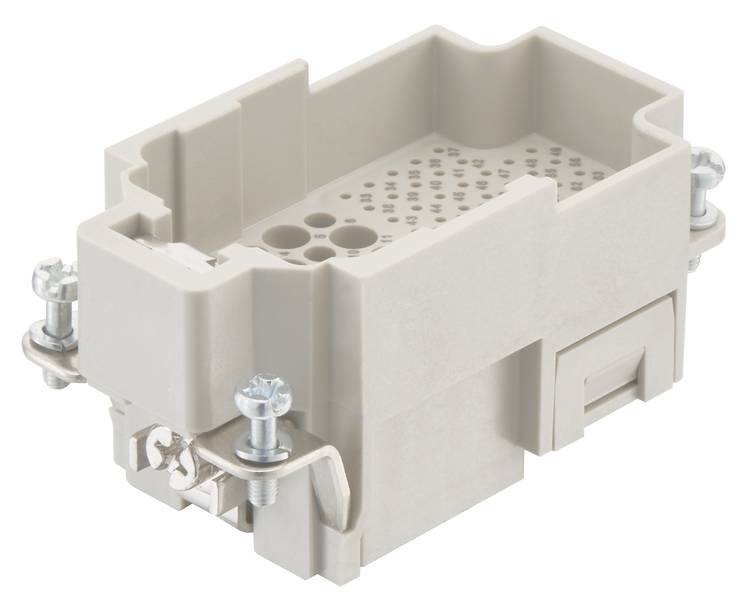

HARTING 09380873001 Pin inset Han® Com 87 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin inset
Series
Han® Com
Connection
Crimp
Total no. of pins
87 + PE
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Technical specifications
- Series: Han-Com®
- Connection type: Crimp connection
- Number of contacts: 87
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 42 g
- Designation: HAN® K 32/55
- Number of signal pins: 55
- Number of power contacts: 32
- Notes: Please order crimp contacts separately.;32x HAN D®;55X D-Sub
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 0.14 ... 2.5 mm² power;0.09 ... 0.52 mm² Signal
- Design size 10 B
- Rated current (signal) 4 A
- Rated current (Power) 10 A.
- PE contact: Yes
- Rated voltage according to UL: 600 V power contacts;30 V signal contacts
- Rated voltage (Power) 250 V
- Rated voltage (signal) 50 V
- Rated surge voltage (signal) 0.8 kV
- Pollution level (signal): 2
- Rated surge voltage (Power) 4 kV
- Pollution level (Power): 2
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Series
Han® Com
- Connection
Crimp
- Number of pins
87
- Total no. of pins
87 + PE
- Core cross section power contact (min.)
0.14 mm²
- Core cross section power contact (max.)
2.5 mm²
- Core cross section controller contact (min.)
0.09 mm²
- Core cross section controller contact (max.)
0.52 mm²
- Mating cycles
≥ 500
- Series
Han-Com®
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
FALSE
87
Pin
-40-125 °C
V0
Crimp connection
Other
FALSE
0.09-0.52 mm²
0.09-0.52 mm²
TRUE
Other
Thermoplastic
Thermoplastic
500
87
Documents & Downloads
Datasheet
Datasheet 3007870 HARTING 09380873001 Pin inset Han® Com 87 + PE Crimp 1 pc(s)
Datasheet 3007870 HARTING 09380873001 Pin inset Han® Com 87 + PE Crimp 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007870 HARTING 09380873001 Pin inset Han® Com 87 + PE Crimp 1 pc(s)
Description
Inserts, Crimp connector, Pin, Polycarbonate (PC), RAL 7032 (pebble gray), Size 10 B, contacts 87
