HARTING 09451151106 Connector Han® 3A 4 Cut & Clip connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Series
Han® 3A
Connection
Cut & Clip connector
Total no. of pins
4
Features
+ IDC
Datasheet (PDF)
Technical specifications
- RJ45 series
- Component: Cable connector
- Connection type: IDC insulation displacement connection
- Number of contacts: 4
- Temperature limit: -40 ... +70 °C
- Standards EN 45545-2
- Net weight: 14 g
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Conductor cross-section: AWG 24 ... AWG 22 flexible;AWG 23 ... AWG 22 rigid
- Description: RJ45
- Shielding: Fully shielded, 360° shield contact
- Transmission features: Cat. 5 class D to 100 MHz
- Protection class according to IEC 60529:IP65;IP67
- PROFINET: Yes
- Housing description: Angled
- Design size 3 A
- Approvals DNV GL
- Casing type: Sleeve casing
- Material housing: Zinc-Druckguss
- Colour of housing: Black
- Wire outer diameter: 1,6 mm
- Cable diameter: 5 ... 9 mm
- Product type
Connector
- Series
Han® 3A
- Features
+ IDC
- Connection
Cut & Clip connector
- Number of pins
4
- Total no. of pins
4
- Series
RJ45
- Content
1 pc(s)
- Max. temperature
+70 °C
- Min. temperature
-40 °C
Other
4
Zinc
Other
-40-70 °C
Other
Insulation displacement connection
Other
0.22-0.32 mm²
0.22-0.32 mm²
0.22-0.32 mm²
0.22-0.32 mm²
Other
Other
Documents & Downloads
Datasheet
Datasheet 3001232 HARTING 09451151106 Connector Han® 3A 4 Cut & Clip connector 1 pc(s)
Datasheet 3001232 HARTING 09451151106 Connector Han® 3A 4 Cut & Clip connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001232 HARTING 09451151106 Connector Han® 3A 4 Cut & Clip connector 1 pc(s)
Description

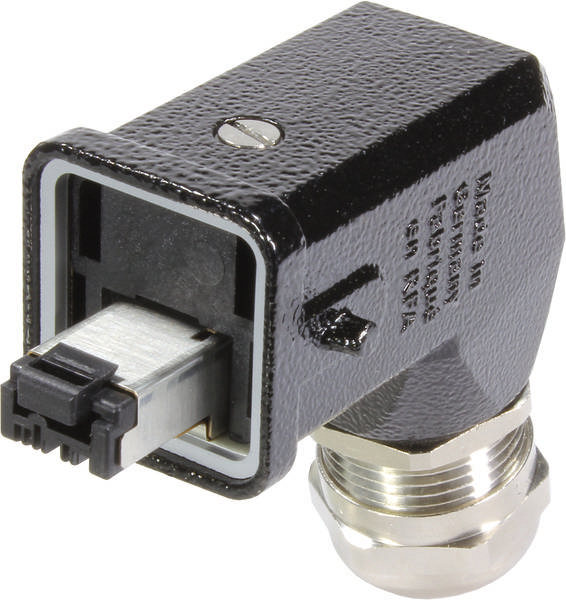

Connector, RJ45 cable connector, IDC terminal connector, contacts: 4, sleeve casing, Angled, size: HAN 3 A
