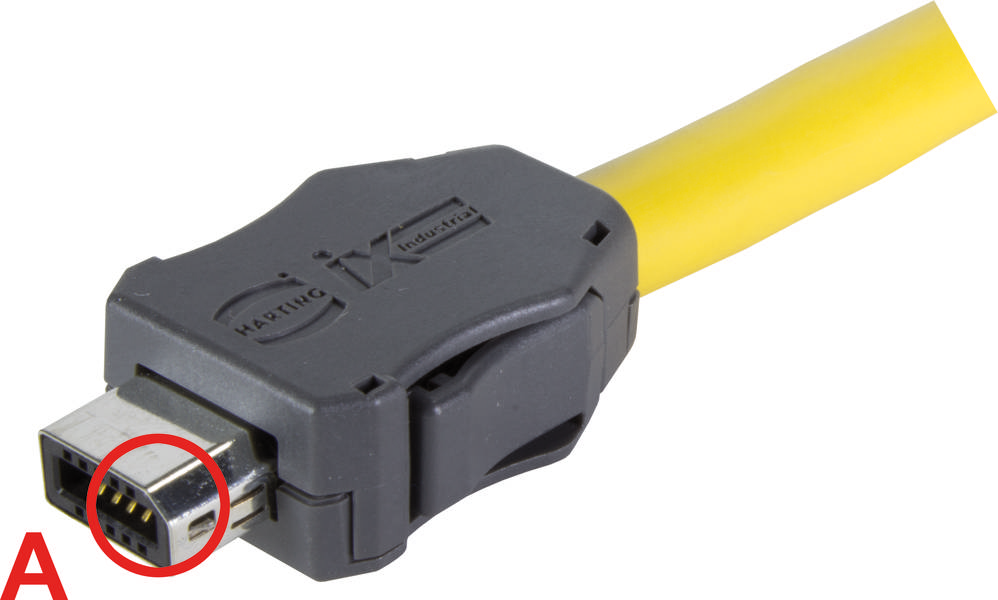

HARTING 09451812560XL Connector Total number of pins: 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Total no. of pins
8
Connection
Soldering
Content
1 pc(s)
Nominal current - rounded value
3 A
Datasheet (PDF)
Technical specifications
- Series: Harting ix Industrial®
- Component: Cable connector
- Connection type: Solder connection
- Number of contacts: 8
- Rated current:3 A when used with 4 contacts (1.2,6.7)
- Insulation resistance >500 MΩ
- Continuous resistance ≤ 30 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 5,000
- Test voltage Ueff 0.5 kV
- Material application: Polyamide (PA)
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface Au ≥ 0.2 µm via Ni ≥ 2 µm plug side; Au ≥ 0.03 µm via Ni ≥ 2 µm on the side of the connector
- Material flammability class acc. To UL 94: V-0
- IEC 61076-3-124;EN 45545-2;IEEE 802.3af Power over Ethernet (PoE);IEEE 802.3at Power over Ethernet (PoE+);IEEE 802.3at Power over Ethernet (4PPPoE)
- Net weight: 4.2 g
- Name: Data
- RATED VOLTAGE 50 V AC; 60 V DC
- Coding: Type A
- Plug-in force ≤ 25 N
- Pull force ≤ 25 N
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Conductor cross-section: AWG 28/7 ... AWG 22/7
- Description: Straight
- Shielding: Fully shielded, 360° shield contact
- Further contacts: + 2x GND
- Transmission features: Cat. 6A class EA to 500 MHz
- Shield resistance ≤ 100 mΩ
- Storage temperature: -30 ... +60 °C
- Relative humidity: 95% non-condensing (operating);95% non-condensing (storage/transport)
- Protection class according to IEC 60529:IP20
- Material shielding: Stainless steel; Ni ≥ 1 µm on the connection side, shielding (case); Ni ≥ 0.2 µm on the connection side, shield (shell)
- PROFINET: Yes
- Material housing: Polycarbonate (PC)
- Colour housing: Grey
- Wire outside diameter: ≤1.55 mm
- Cable diameter: 5.5 ... 7.2 mm
- Holding force ≥80 N locking
- Type
09 45 181 2560 XL
- Product type
Connector
- Total no. of pins
8
- Connection
Soldering
- Factory colour
Black
- Content
1 pc(s)
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Nominal voltage
50 V AC
60 V DC
- Contact material
Copper alloy
- Cable Ø (max.)
7.2 mm
- Cable Ø up to
5.5 mm
- Case material
Polycarbonate
- Manufacturer part #
09451812560XL
- Cable Ø range
5.5 - 7.2 mm
- Number of pins
8
IP20
Other
8
Other
Other
Other
-40-85 °C
V0
Soldering connection
Nickel/gold
IP20
FALSE
Polyamide (PA)
Other copper alloys
Other
1.5 A
Documents & Downloads
Datasheet
Datasheet 3001228 HARTING 09451812560XL Connector Total number of pins: 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001228 HARTING 09451812560XL Connector Total number of pins: 8 1 pc(s)
Description
Plug connector, cable connector straight, solder connection, rated current 1.5 A, contacts 8 + 2x GND, copper alloy
