Name: HARTING 09452812561 PCB connector Total number of pins: 8 1 pc(s)
Brand: HARTING
SKU: 3008703

Product type

PCB connector

Total no. of pins

Connection

Soldering

Content

1 pc(s)

Nominal current - rounded value

3 A

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Series: Harting ix Industrial®
Component: PCB connector
Connection type: Solder connection
Number of contacts: 8
Rated current:3 A when used with 4 contacts (1.2,6.7)
Insulation resistance >500 MΩ
Continuous resistance ≤ 30 mΩ
Temperature limit: -40 ... +85 °C
Mating cycles ≥ 5,000
Test voltage Ueff 0.5 kV
Material application: Liquid-crystal polymer (LCP)
Colour insert: Grey
Material contacts: Copper alloy
Contact surface Au ≥ 0.2 µm via Ni ≥ 2 µm plug side; Au ≥ 0.03 µm via Ni ≥ 2 µm on the side of the connector
Material flammability class acc. To UL 94: V-0
Standards: IEC 61076-3-124; EN 45545-2
Net weight: 1.52 g
Name: Data
RATED VOLTAGE ‌ 50 V AC;‌ 60 V DC

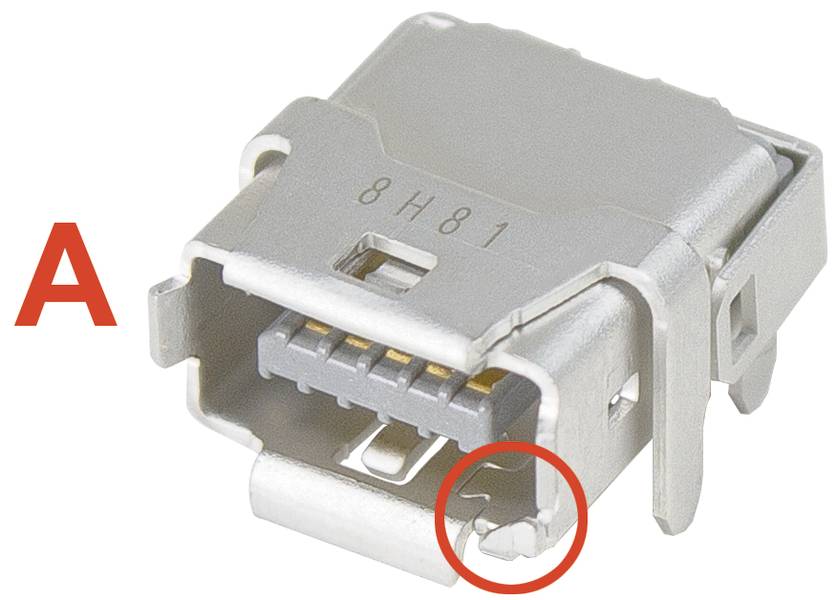

Coding: Type A
Plug-in force ≤ 25 N
Pull force ≤ 25 N
Data rate: ‌ 10 Mbit/s;‌ 100 Mbit/s;‌ 1 Gbit/s;‌ 2.5 Gbit/s;‌ 5 Gbit/s;‌ 10 Gbit/s
Description: Horizontal
Shielding: Fully shielded, 360° shield contact
Further contacts: + 2x GND
Transmission features: Cat. 6A class EA to 500 MHz
Shield resistance ≤ 100 mΩ
Storage temperature: -30 ... +60 °C
Relative humidity: 95% non-condensing (operating);95% non-condensing (storage/transport)
Protection class according to IEC 60529:IP20
Material shielding: Stainless steel; Sn ≥ 1 µm over Ni ≥ 0.2 µm sided, shielding
PROFINET: Yes
