HARTING 09452819002 PCB connector Total number of pins 10 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
10
Content
1 pc(s)
Packaging type
Piece
Total number of pins
10
Datasheet (PDF)
Highlights & Details
PCB connector
- Total number of pins 10
- Content 1 pc(s)
Technical specifications
- Series: Harting ix Industrial®
- Component: PCB connector
- Connection type: Solder connection
- Number of contacts: 10
- Rated current:3 A when used with 4 contacts (1.2,6.7)
- Insulation resistance >500 MΩ
- Continuous resistance ≤ 30 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 5,000
- Test voltage Ueff 0.5 kV
- Material application: Polyamide (PA)
- Colour insert: Grey
- Material contacts: Copper alloy
- Contact surface Au ≥ 0.2 µm via Ni ≥ 2 µm plug side; Au ≥ 0.03 µm via Ni ≥ 2 µm on the side of the connector
- Material flammability class acc. To UL 94: V-0
- Standards: IEC 61076-3-124; EN 45545-2
- Net weight: 2.5 g
- Name: Signal
- RATED VOLTAGE 50 V AC; 60 V DC

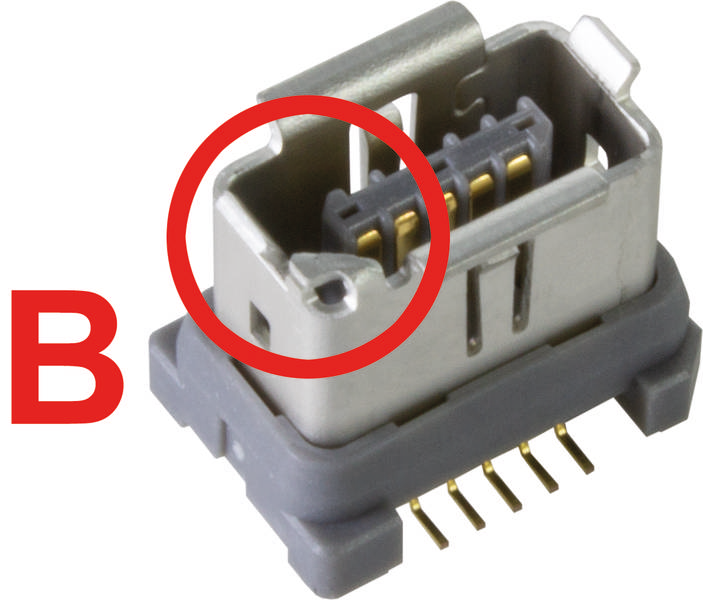

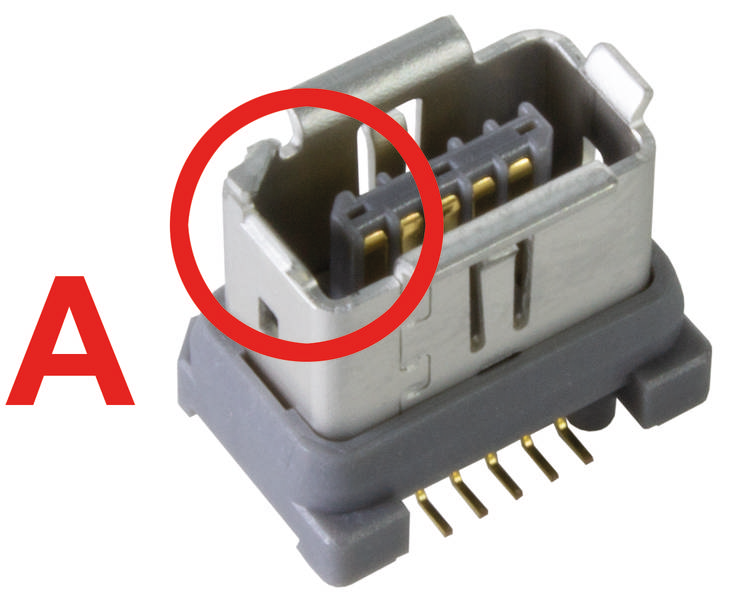

- Coding: Type B
- Plug-in force ≤ 25 N
- Pull force ≤ 25 N
- Description: Vertical
- Shielding: Fully shielded, 360° shield contact
- Shield resistance ≤ 100 mΩ
- Storage temperature: -30 ... +60 °C
- Relative humidity: 95% non-condensing (operating);95% non-condensing (storage/transport)
- Protection class according to IEC 60529:IP20
- Material shielding: Stainless steel; Sn ≥ 1 µm over Ni ≥ 0.2 µm sided, shielding
- Packaging type
Piece
- Product type
PCB connector
- Total no. of pins
10
- Total number of pins
10
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Connection
Soldering
- Factory colour
Grey
- Case material
PA
- Manufacturer part #
09452819002
- Content
1 pc(s)
- Contact material
Copper alloy
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Type
09 45 281 9002
- Coating thickness (PCB side)
0.03 µm
- Connector coating thickness
0.2 µm
- Resistance
30 mΩ
- Insulation resistance
500 MΩ
- Board contact surface
Gold on nickel
- Connector contact surface
Gold on nickel
- Nominal voltage
50 V AC
60 V DC
- Number of pins
10
Other
10
Other
-40-85 °C
Other
Soldering connection
Nickel/gold
Polyamide (PA)
Other
Other
1.5 A
Documents & Downloads
Datasheet
Datasheet 3000928 HARTING 09452819002 PCB connector Total number of pins 10 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3000928 HARTING 09452819002 PCB connector Total number of pins 10 1 pc(s) Piece
Description
PCB connectors, vertical, solder connection, rated current 1.5 A, contacts: 10, copper alloy
