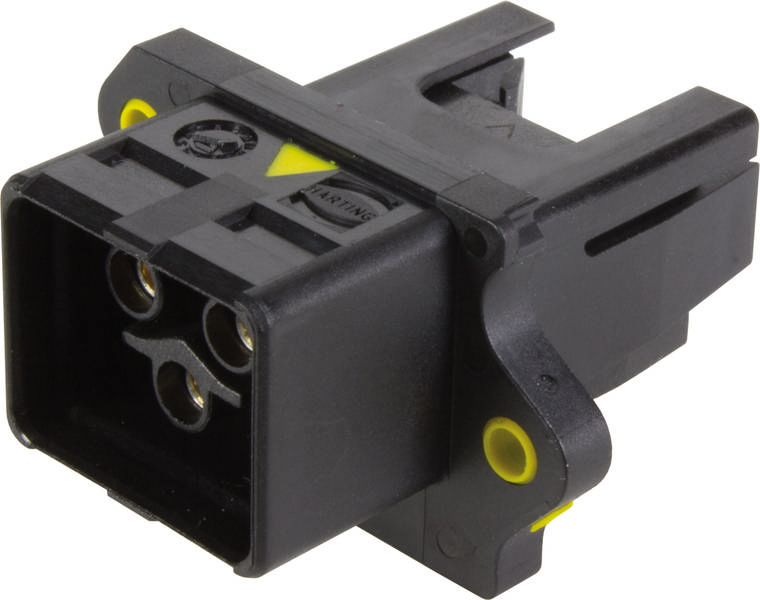

HARTING 09462453420 Enclosure extension Total number of pins: 2 + PE 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure extension
Total no. of pins
2 + PE
Connection
Crimp
Content
1 pc(s)
Nominal current - rounded value
16 A
Datasheet (PDF)
Technical specifications
- Harting PushPull (V4) Series
- Component: Attachment housing set
- Connection type: Crimp connection
- Number of contacts: 2
- Lock type: PushPull
- Rated current 16 A
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 750
- Material flammability class acc. To UL 94: V-0
- IEC 61076-3-106 version 4 (V4);EN 45545-2
- Net weight: 8 g
- Designation: Power
- Rated voltage: 250 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Conductor cross-section: AWG 16 ... AWG 14
- Stripped insulation length 5 mm wires; 30 mm cable sheath
- Shielding: Unshielded
- Protection class according to IEC 60529:IP65;IP67
- Housing description: Compact
- Vibration resistance: 10-500 Hz, 5 g, 0.35 mm, 2h / axis; 5.72 m / s² according to IEC 61373 Category 1 Class B
- Approvals DNV GL
- Shock resistance: 25 g / 11 ms, 3 impacts / axle and direction;5 g / 30 ms, 5 impacts / axle and direction according to IEC 61373 Category 1 Class B
- PE contact: Yes
- Material housing: Plastic
- Colour of housing: Black
- Wire outside diameter: ≤ 2.9 mm
- Type
09 46 245 3420
- Product type
Enclosure extension
- Total no. of pins
2 + PE
- Connection
Crimp
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Leading contact (PE)
Yes
- Nominal voltage
250 V
- Case material
Plastic
- Manufacturer part #
09462453420
- Number of pins
2
IP65
IP67
Push Pull
250 V
2
Other
Plastic
Other
-40-70 °C
Other
4 kV
Crimp connection
Other
1.5-1.5 mm²
1.5-1.5 mm²
1.5-1.5 mm²
1.5-1.5 mm²
IP65
TRUE
Other
Other
Other
16 A
Documents & Downloads
Datasheet
Datasheet 3001210 HARTING 09462453420 Enclosure extension Total number of pins: 2 + PE 1 pc(s)
Datasheet 3001210 HARTING 09462453420 Enclosure extension Total number of pins: 2 + PE 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3001210 HARTING 09462453420 Enclosure extension Total number of pins: 2 + PE 1 pc(s)
Description
Connector, mounting housing set, crimp connection, rated current 16 A, contacts: 2, Compact, PushPull, material: plastic, protection class: IP65, IP67
