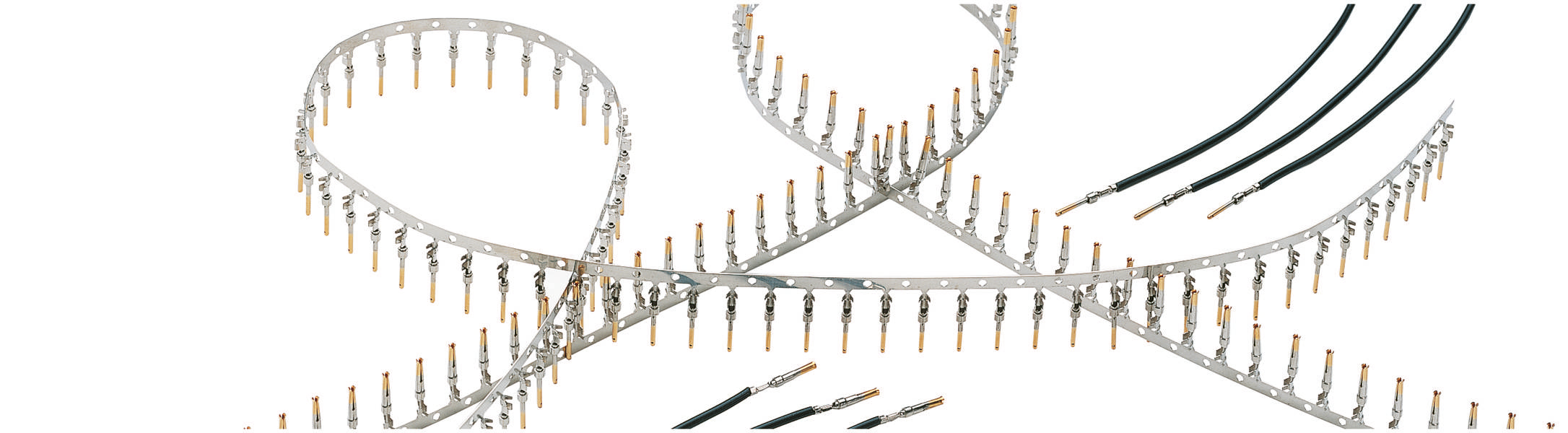

HARTING 09560008165 09 56 000 8165 Crimp contact Copper alloy 500 pc(s)
EAN:
Part number:
Item no:
Product type
Crimp contact
Contact material
Copper alloy
Content
500 pc(s)
Mating cycles
500
Manufacturer part #
09560008165
Datasheet (PDF)
Technical specifications
- Series D-Sub
- Continuous resistance ≤ 20 mΩ
- Mating cycles ≥ 500
- Material contacts: Copper alloy
- Net weight: 65 g
- Layer thickness ≥ 30 µinch
- Designation: High density
- Contact type: Crimp contact
- Gender: Pen
- Manufacturing process: Punched contacts
- Conductor cross-section: AWG 26 ... AWG 24
- Wire outside diameter: ≤1.38 mm
- Product type
Crimp contact
- Contact material
Copper alloy
- Content
500 pc(s)
- Mating cycles
500
- Manufacturer part #
09560008165
- Contact type
Punched contacts
- Type
09 56 000 8165
Pin
Other
Other
0.14-0.22 mm²
0.14-0.22 mm²
Other copper alloys
500
Turned (lathe)
Documents & Downloads
Datasheet
Datasheet 3001785 HARTING 09560008165 09 56 000 8165 Crimp contact Copper alloy 500 pc(s)
User & Safety Instructions
User & Safety Instructions 3001785 HARTING 09560008165 09 56 000 8165 Crimp contact Copper alloy 500 pc(s)
Description
Crimp contact, pin, copper alloy, conductor cross-section: 0.14...0.22 mm², AWG 26 ... AWG 24
