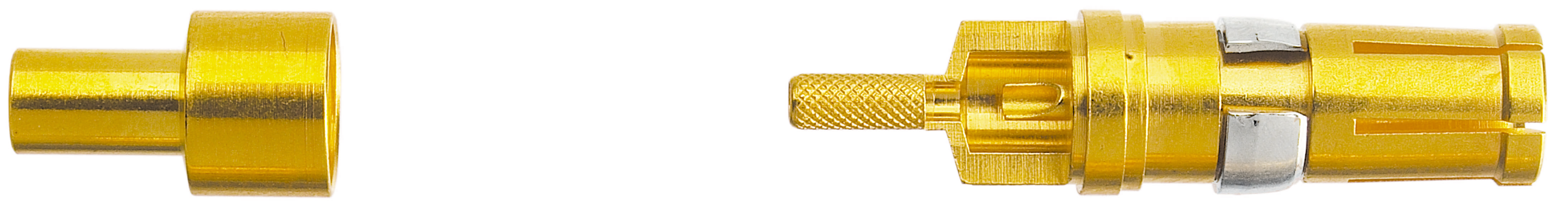

HARTING 09691815230 09 69 181 5230 Coaxial connector Copper alloy 2 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Coaxial connector
Contact material
Copper alloy
Content
1 pc(s)
Connection
Soldering
Crimp
Datasheet (PDF)
Technical specifications
- Series D-Sub
- Contact description: Straight;for cable RG 179 BU, 187 AU
- Connection type: Soldering / crimp connection
- Rated current ≤ 2 A
- Insulation resistance >109 Ω
- Contact resistance: 2,7 mΩ for inner conductor;2,7 mΩ for outer conductor
- Temperature limit: -55 ... +135 °C
- Mating cycles ≥ 500
- Test voltage Ueff 0.75 kV @ 50 Hz
- Material contacts: Copper alloy;PBFE / PBTP / PI
- Contact surface: Precious metal over Ni
- Net weight: 2.26 g
- Layer thickness ≥ 30 µinch
- Designation: Mixed
- Features: External conductor: Crimp in tool cavity B.
- Rated voltage: 250 V
- Plug-in force ≤ 7 N
- Pull force ≤ 7 N
- Contact type: Coaxial contact
- Gender: Jack
- Production process: Turned contacts
- Stripping length: 3 mm for inner conductor; 5 mm shielding; 9.5 mm cable sleeve
- Material locking: Copper alloy
- Wave resistance 75 Ω
- Frequency: 0 ... 2 GHz
- Packaging type
Piece
- Product type
Coaxial connector
- Contact material
Copper alloy
- Content
1 pc(s)
- Connection
Soldering
Crimp
- Mating cycles
500
- Manufacturer part #
09691815230
- Contact type
Machined contacts
- Contact surface
Precious metal
- Nominal current
2 A
- Type
09 69 181 5230
Bus
-55-135 °C
Other
Other
3 mm
2 A
Other copper alloys
500
Documents & Downloads
Datasheet
Datasheet 3001864 HARTING 09691815230 09 69 181 5230 Coaxial connector Copper alloy 2 A 1 pc(s) Piece
Datasheet 3001864 HARTING 09691815230 09 69 181 5230 Coaxial connector Copper alloy 2 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3001864 HARTING 09691815230 09 69 181 5230 Coaxial connector Copper alloy 2 A 1 pc(s) Piece
Description
Coaxial contact, straight, for cable RG 179 BU, 187 AU, operating current 2 A, socket, copper alloy, PBFE / PBTP / PI, precious metal over Ni
