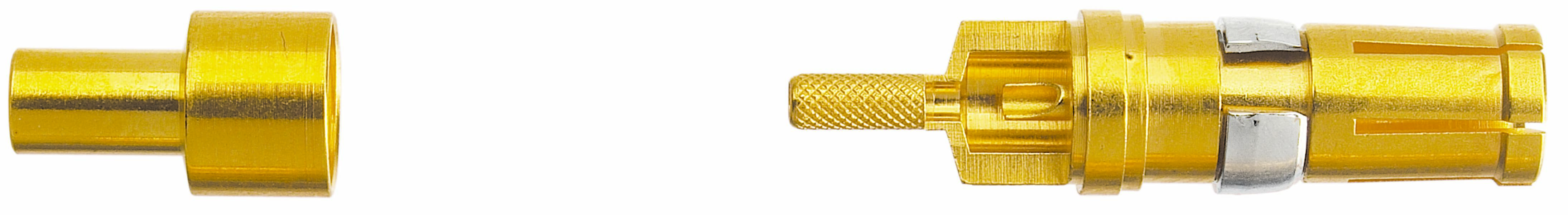

HARTING 09691827140 09 69 182 7140 Coaxial connector AWG (min.): 24 AWG max.: 30 Copper alloy 2 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Coaxial connector
AWG max.
30
Contact material
Copper alloy
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Series D-Sub
- Contact description: Straight;for cables RG 174 U, 188 AU, 316 U
- Connection type: Crimp/crimp connection
- Rated current ≤ 2 A
- Insulation resistance >109 Ω
- Contact resistance: 2,7 mΩ for inner conductor;2,7 mΩ for outer conductor
- Temperature limit: -55 ... +135 °C
- Mating cycles ≥ 50
- Test voltage Ueff 0.75 kV @ 50 Hz
- Material contacts: Copper alloy;PBFE / PBTP / PI
- Contact surface: Gold-plated
- Net weight: 2.15 g
- Designation: Mixed
- Features: Tool setting: 5 for AWG 24 and AWG 26, 4 for AWG 28, 3 for AWG 30; external conductor: Crimp in tool cavity B.
- Rated voltage: 250 V
- Plug-in force ≤ 7 N
- Pull force ≤ 7 N
- Contact type: Coaxial contact
- Gender: Jack
- Production process: Turned contacts
- Stripping length: 3 mm for inner conductor; 5 mm shielding; 9 mm cable sleeve
- Material locking: Copper alloy
- Wave impedance: 50 ohms
- Frequency: 0 ... 2 GHz
- Packaging type
Piece
- Product type
Coaxial connector
- AWG max.
30
- Contact material
Copper alloy
- Content
1 pc(s)
- AWG (min.)
24
- Connection
Crimp
- Mating cycles
50
- Manufacturer part #
09691827140
- Contact type
Machined contacts
- Contact surface
Gold plated
- Nominal current
2 A
- Type
09 69 182 7140
Bus
-55-135 °C
Crimp connection
Gold
3 mm
2 A
Other copper alloys
50
Documents & Downloads
Datasheet
Datasheet 3001854 HARTING 09691827140 09 69 182 7140 Coaxial connector AWG (min.): 24 AWG max.: 30 Copper alloy 2 A 1 pc(s) Piece
Datasheet 3001854 HARTING 09691827140 09 69 182 7140 Coaxial connector AWG (min.): 24 AWG max.: 30 Copper alloy 2 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3001854 HARTING 09691827140 09 69 182 7140 Coaxial connector AWG (min.): 24 AWG max.: 30 Copper alloy 2 A 1 pc(s) Piece
Description
Coaxial contact, straight, for cable RG 174 U, 188 AU, 316 U, operating current 2 A, socket, Copper alloy, PBFE / PBTP / PI, gold plated
