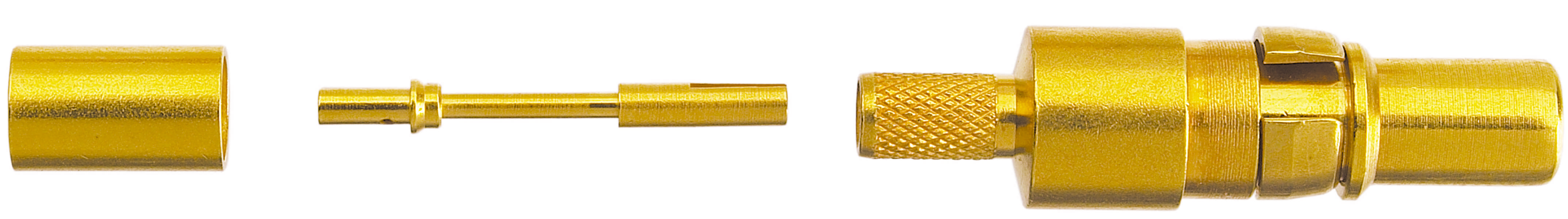

HARTING 09692817140 09 69 281 7140 Coaxial connector Copper alloy 2 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Coaxial connector
Contact material
Copper alloy
Content
1 pc(s)
Connection
Soldering
Crimp
Datasheet (PDF)
Technical specifications
- Series D-Sub
- Contact description: Straight;for cables RG 174 U, 188 AU, 316 U
- Connection type: Soldering / crimp connection
- Rated current ≤ 2 A
- Insulation resistance >109 Ω
- Contact resistance: 2,7 mΩ for inner conductor;2,7 mΩ for outer conductor
- Temperature limit: -55 ... +135 °C
- Mating cycles ≥ 50
- Test voltage Ueff 0.75 kV @ 50 Hz
- Material contacts: Copper alloy;PBFE / PBTP / PI
- Contact surface: Gold-plated
- Net weight: 2.23 g
- Designation: Mixed
- Features: External conductor: Crimp in tool cavity B.
- Rated voltage: 250 V
- Plug-in force ≤ 7 N
- Pull force ≤ 7 N
- Contact type: Coaxial contact
- Gender: Pen
- Production process: Turned contacts
- Stripping length: 3 mm for inner conductor; 5 mm shielding; 9.5 mm cable sleeve
- Material locking: Copper alloy
- Wave impedance: 50 ohms
- Frequency: 0 ... 2 GHz
- Packaging type
Piece
- Product type
Coaxial connector
- Contact material
Copper alloy
- Content
1 pc(s)
- Connection
Soldering
Crimp
- Mating cycles
50
- Manufacturer part #
09692817140
- Contact type
Machined contacts
- Contact surface
Gold plated
- Nominal current
2 A
- Type
09 69 281 7140
Pin
-55-135 °C
Other
Gold
3 mm
2 A
Other copper alloys
50
Documents & Downloads
Datasheet
Datasheet 3001857 HARTING 09692817140 09 69 281 7140 Coaxial connector Copper alloy 2 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3001857 HARTING 09692817140 09 69 281 7140 Coaxial connector Copper alloy 2 A 1 pc(s) Piece
Description
Coaxial contact, straight, for cable RG 174 U, 188 AU, 316 U, operating current 2 A, pin, Copper alloy, PBFE / PBTP / PI, gold plated
