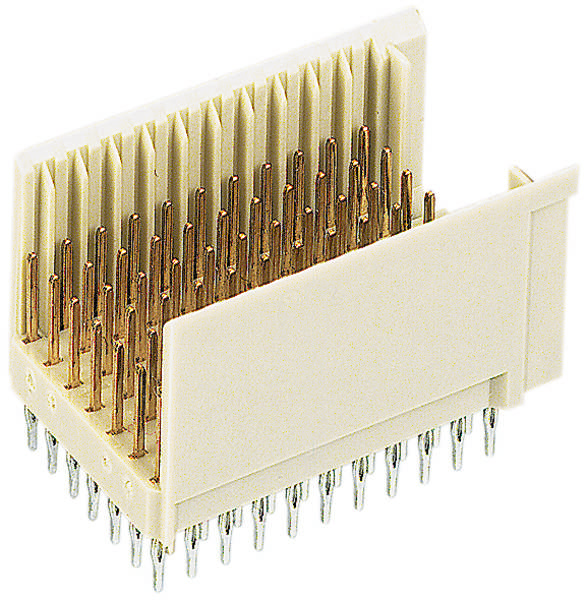

HARTING 17030771201 Edge connector (pins) No. of rows 7 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (pins)
Connector type
straight
CS
2 mm
Content
1 pc(s)
Total number of pins
77
Datasheet (PDF)
Highlights & Details
- Total number of pins 77
- No. of rows 7
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (pins)
- Connector type
straight
- Total number of pins
77
- No. of rows
7
- CS
2 mm
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Connection
Press-in
- Factory colour
Beige
- Case material
PA
- Manufacturer part #
17030771201
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
17 03 077 1201
Other
77
Other
-55-125 °C
Other
Press-in connection
Other
2 mm
7
1.4 mm
2 mm
Thermoplastic
90° (upwards vertical)
Other
1 A
