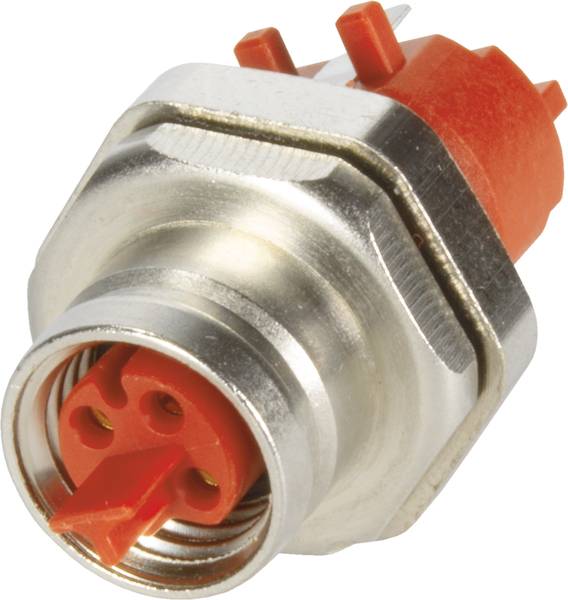

HARTING 21023412431 PCB connector Total number of pins: 4 Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
4
Connection
THR
Content
1 pc(s)
Type
21 02 341 2431
Datasheet (PDF)
Technical specifications
- Series: Round connector M8
- Component: PCB connector
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 4
- Rated current 4 A
- Insulation resistance >108 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 100
- Insulation material group I (600 ≤ CTI)
- Material contacts: Copper alloy
- Contact surface: Au over Ni on plug side
- IEC 61076-2-114 standard
- Net weight: 13 g
- Rated voltage: 60 V
- Dimensioning surge voltage: 1.5 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Coding: P-coding
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Gender: Jack
- Description: Straight;for front mounting
- Shielding: shielded
- Transmission features: Cat. 5 class D to 100 MHz
- Protection class according to IEC 60529:IP65 / IP67 when connected
- Tightening torque: 1 Nm counter nut
- Over voltage category III
- Type
21 02 341 2431
- Product type
PCB connector
- Total no. of pins
4
- Connection
THR
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Contact material
Copper alloy
- Weight
13 g
- Manufacturer part #
21023412431
- Number of pins
4
- Feature
shielded
- Packaging type
Piece
Other
60 V
4
Bus
-40-85 °C
Other
1.5 kV
Soldering connection
Nickel/gold
III
Other
Other
Other
4 A
Documents & Downloads
Datasheet
Datasheet 3008684 HARTING 21023412431 PCB connector Total number of pins: 4 Piece 1 pc(s)
Datasheet 3008684 HARTING 21023412431 PCB connector Total number of pins: 4 Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008684 HARTING 21023412431 PCB connector Total number of pins: 4 Piece 1 pc(s)
Description
PCB connectors, straight, for front mounting, reflow soldering connection (THR), rated current 4 A, contacts:4, copper alloy
