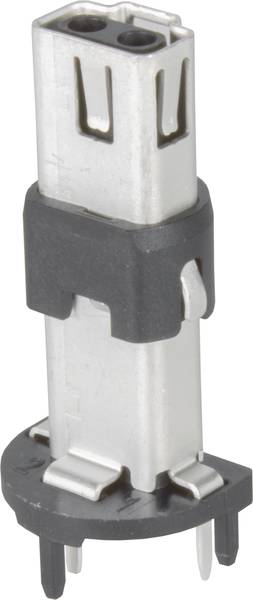

HARTING 21033392211 PCB connector Total number of pins: 2 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
2
Connection
THR
Content
1 pc(s)
Nominal current - rounded value
4 A
Datasheet (PDF)
Technical specifications
- Series: Harting T1 Industrial; Circular connector M12
- Component: PCB connector
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 2
- Length of the Pins 12 mm
- Rated current 4 A
- Continuous resistance ≤ 20 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 1,000
- Standards: IEC 63171-6; IEEE 802.3u (remote supply by PoDL: Power over data line);IEEE 802.3cg (10BASE-T1);IEEE 802.3bw (100BASE-T1);IEEE 802.3bp (1000BASE-T1/5GBASE-T1/10GBASE-T1)
- Rated voltage 60 V DC
- Moisture Sensitivity Level (MSL): 1 according to ECA/IPC/JEDEC J-STD-020D
- Process Sensitivity Level (PSL): R0 according to ECA/IPC/JEDEC J-STD-020D
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Gender: Jack
- Description: Straight;incl. Flange socket;for front mounting
- Shielding: Fully shielded, 360° shield contact
- Further contacts: + shielding
- Transmission features 600 MHz bandwidth
- Shield resistance ≤ 100 mΩ
- Protection class according to IEC 60529:IP20
- Testing voltage UDC: 1 kV (contact-contact);2.25 kV (contact-earth)
- Type
21 03 339 2211
- Product type
PCB connector
- Total no. of pins
2
- Connection
THR
- Content
1 pc(s)
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Nominal voltage
60 V DC
- Manufacturer part #
21033392211
- Number of pins
2
IP20
Other
2
Bus
-40-85 °C
Other
Soldering connection
Other
12 mm
Other
Other
Other
4 A
Documents & Downloads
Datasheet
Datasheet 3008686 HARTING 21033392211 PCB connector Total number of pins: 2 1 pc(s)
Datasheet 3008686 HARTING 21033392211 PCB connector Total number of pins: 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008686 HARTING 21033392211 PCB connector Total number of pins: 2 1 pc(s)
Description
PCB connectors, straight, inc. Flange socket, for front mounting, reflow soldering connection (THR), rated current 4 A, contacts: 2 + shielding
