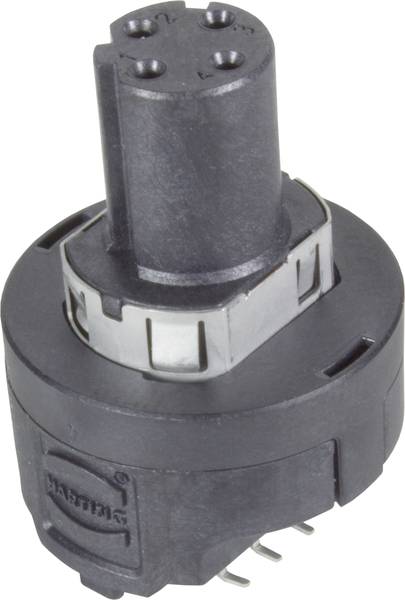

HARTING 21033812411 PCB adapter Total number of pins: 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB adapter
Total no. of pins
4
Connection
SMT
Content
1 pc(s)
Type
21 03 381 2411
Datasheet (PDF)
Technical specifications
- Series: Circular connector M12
- Component: Circuit board adapter
- Connection type: Reflow soldering connection (SMT)
- Number of contacts: 4
- Rated current 3 A
- Insulation resistance >108 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -40 ... +85 °C (max. for reflow soldering +245)
- Mating cycles ≥ 100
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP)
- Colour insert: Black
- Material contacts: Brass
- Contact surface: Au over Ni on plug side
- Material flammability class acc. To UL 94: V-0
- IEC 61076-2-101 standard
- Net weight: 0.1 g
- Description: Magnetics
- Rated voltage: 57 V
- Dimensioning surge voltage: 1.5 kV
- Pollution level 3
- Process Sensitivity Level (PSL): R7 according to ECA/IPC/JEDEC J-STD-075
- Note: Flange socket order separately.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Coding: D-coding
- Plug-in force 10 N
- Pull force 15 N
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Gender: Jack
- Description: With integrated transformer; straight; Power over Ethernet (PoE+)
- Shielding: shielded
- Transmission features: Cat. 5 class D to 100 MHz
- Protection class according to IEC 60529:IP65 / IP67 when connected
- Type
21 03 381 2411
- Product type
PCB adapter
- Total no. of pins
4
- Connection
SMT
- Factory colour
Black
- Content
1 pc(s)
- Manufacturer part #
21033812411
- Number of pins
4
Other
57 V
4
Bus
-40-85 °C
Other
1.5 kV
Soldering connection
Nickel/gold
Liquid crystal polymer
Other
Other
3 A
Documents & Downloads
Datasheet
Datasheet 3008642 HARTING 21033812411 PCB adapter Total number of pins: 4 1 pc(s)
Datasheet 3008642 HARTING 21033812411 PCB adapter Total number of pins: 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008642 HARTING 21033812411 PCB adapter Total number of pins: 4 1 pc(s)
Description
PCB adapter, with integrated transformer, straight, Power over Ethernet (PoE+), reflow soldering connection (SMT), rated current 3 A, contacts: 4
This text is machine translated.
