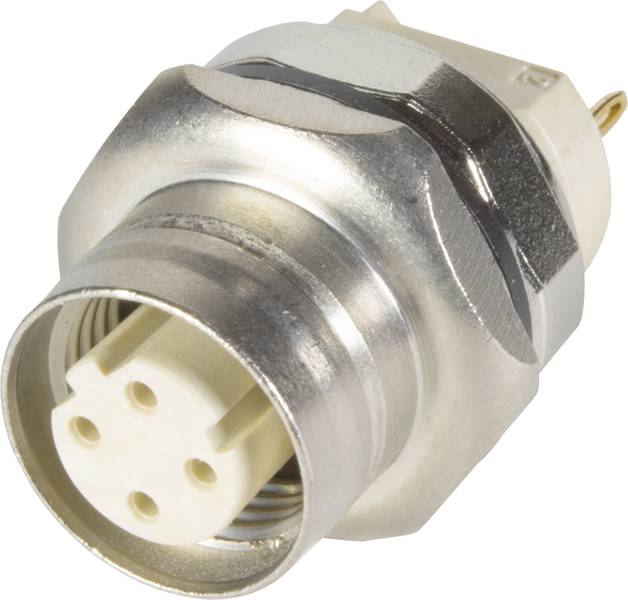

HARTING 21033812431 PCB adapter Total number of pins: 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB adapter
Total no. of pins
4
Connection
THR
Content
1 pc(s)
Type
21 03 381 2431
Datasheet (PDF)
Technical specifications
- Series: Circular connector M12
- Component: Circuit board adapter
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 4
- Lockout type: Screw locking;PushPull
- Rated current 4 A
- Insulation resistance >108 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 100
- Insulation material group I (600 ≤ CTI)
- Material application: Liquid-crystal polymer (LCP)
- Material contacts: Copper alloy
- Contact surface: Au over Ni on plug side
- Material flammability class acc. To UL 94: V-0
- IEC 61076-2-101 standard
- Net weight: 17.7 g
- Name: PushPull
- Rated voltage: 50 V
- Dimensioning surge voltage: 2.5 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Coding: D-coding
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Gender: Jack
- Description: Straight;incl. Flange socket;for front mounting
- Shielding: shielded
- Transmission features: Cat. 5 class D to 100 MHz
- Protection class according to IEC 60529:IP65 / IP67 when connected
- Tightening torque 2 Nm counter nut
- Material housing: Zinc-Druckguss
- Over voltage category III
- Type
21 03 381 2431
- Product type
PCB adapter
- Total no. of pins
4
- Connection
THR
- Content
1 pc(s)
- Seal
Screw locking;PushPull
- Case material
Diecast zinc
- Manufacturer part #
21033812431
- Number of pins
4
Other
50 V
4
Bus
-40-85 °C
Other
2.5 kV
Soldering connection
Nickel/gold
III
Liquid crystal polymer
Other
Other
4 A
Documents & Downloads
Datasheet
Datasheet 3008569 HARTING 21033812431 PCB adapter Total number of pins: 4 1 pc(s)
Datasheet 3008569 HARTING 21033812431 PCB adapter Total number of pins: 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008569 HARTING 21033812431 PCB adapter Total number of pins: 4 1 pc(s)
Description
PCB adapter, straight, including Flange socket, for front mounting, reflow soldering connection (THR), rated current 4 A, contacts: 4, copper alloy
