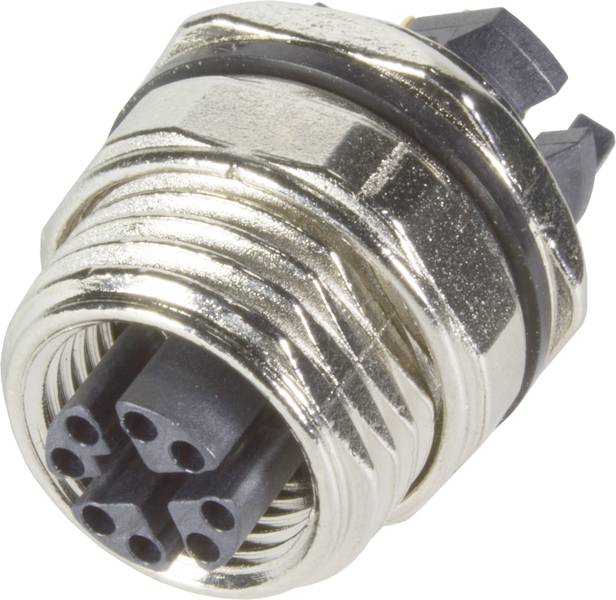

HARTING 21033812810 PCB adapter Total number of pins: 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB adapter
Total no. of pins
8
Connection
THR
Content
1 pc(s)
Type
21 03 381 2810
Datasheet (PDF)
Technical specifications
- Series: Circular connector M12
- Component: Circuit board adapter
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 8
- Type of locking: Screw lock
- Rated current 0.5 A
- Insulation resistance >108 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 100
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP)
- Material contacts: Copper alloy
- Contact surface: Au over Ni on plug side
- Material flammability class acc. To UL 94: V-0
- IEC 61076-2-109 standard
- Net weight: 24 g
- Rated voltage: 50 V
- Dimensioning surge voltage: 0.8 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Coding: X-coding
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Gender: Jack
- Description: Straight;incl. Flange socket;for rear wall mounting
- Shielding: shielded
- Transmission features: Cat. 6A class EA to 500 MHz
- Protection class according to IEC 60529:IP65 / IP67 when connected
- Tightening torque 2 Nm counter nut
- Material housing: Zinc-Druckguss
- Over voltage category III
- Type
21 03 381 2810
- Product type
PCB adapter
- Total no. of pins
8
- Connection
THR
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Seal
Screw-type locking
- Contact material
Copper alloy
- Case material
Diecast zinc
- Weight
24 g
- Manufacturer part #
21033812810
- Insulation material
Liquid crystal polymer
- Number of pins
8
- Feature
shielded
Other
50 V
8
Bus
-40-85 °C
Other
0.8 kV
Soldering connection
Nickel/gold
III
Liquid crystal polymer
Other
Other
0.5 A
