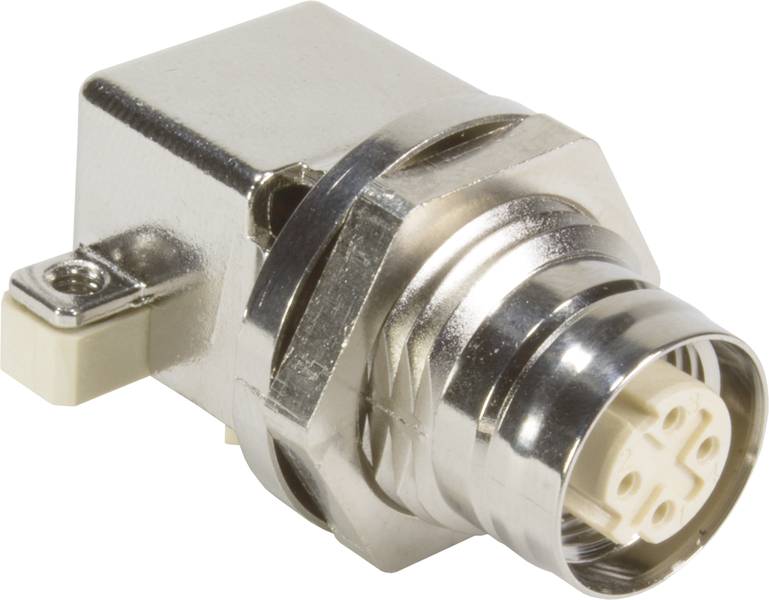

HARTING 21033814437 PCB adapter Total number of pins: 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB adapter
Total no. of pins
4
Connection
THR
Content
1 pc(s)
Type
21 03 381 4437
Datasheet (PDF)
Technical specifications
- Series: Circular connector M12
- Component: Circuit board adapter
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 4
- Lockout type: Screw locking;PushPull
- Rated current 4 A
- Insulation resistance >108 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 100
- Insulation material group I (600 ≤ CTI)
- Material application: Liquid-crystal polymer (LCP)
- Material contacts: Copper alloy
- Contact surface: Au over Ni on plug side
- Material flammability class acc. To UL 94: V-0
- IEC 61076-2-101 standard
- Net weight: 25.3 g
- Name: PushPull
- Rated voltage: 250 V
- Dimensioning surge voltage: 1.5 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Coding: D-coding
- Data rate: 10 Mbit/s; 100 Mbit/s.
- Gender: Jack
- Description: Angled;for rear wall mounting
- Shielding: shielded
- Transmission features: Cat. 5 class D to 100 MHz
- Protection class according to IEC 60529: IP67 when connected
- PROFINET: Yes
- Housing description: With mounting thread
- Tightening torque 2 Nm counter nut
- Material housing: Zinc-Druckguss
- Over voltage category III
- Type
21 03 381 4437
- Product type
PCB adapter
- Total no. of pins
4
- Connection
THR
- Content
1 pc(s)
- Max. temperature
85 °C
- Min. temperature
-40 °C
- Seal
Screw locking;PushPull
- Contact material
Copper alloy
- Case material
Diecast zinc
- Weight
25.3 g
- Manufacturer part #
21033814437
- Insulation material
LCP
- Number of pins
4
- Feature
shielded
Other
250 V
4
Bus
-40-85 °C
Other
1.5 kV
Soldering connection
Nickel/gold
III
Liquid crystal polymer
Other
Other
4 A
Documents & Downloads
Datasheet
Datasheet 3008614 HARTING 21033814437 PCB adapter Total number of pins: 4 1 pc(s)
Datasheet 3008614 HARTING 21033814437 PCB adapter Total number of pins: 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008614 HARTING 21033814437 PCB adapter Total number of pins: 4 1 pc(s)
Description
PCB adapter, angled, for rear wall mounting, reflow soldering connection (THR), rated current 4 A, contacts:4, copper alloy
