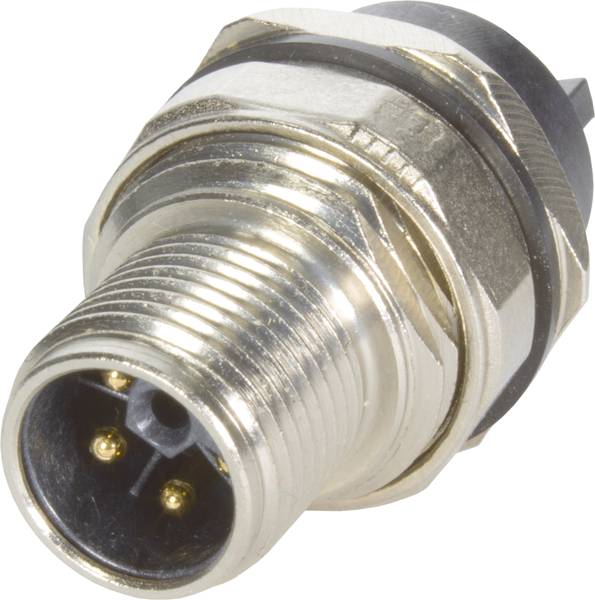

HARTING 21033961533 PCB adapter Total number of pins: 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB adapter
Total no. of pins
4
Connection
THR
Content
1 pc(s)
Type
21 03 396 1533
Datasheet (PDF)
Technical specifications
- Series: Circular connector M12
- Component: Circuit board adapter
- Connection type: Reflow soldering connection (THR)
- Number of contacts: 4
- Type of locking: Screw lock
- Rated current 16 A
- Insulation resistance >108 Ω
- Continuous resistance ≤ 10 mΩ
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 100
- Insulation material group I (600 ≤ CTI)
- Material application: Polyamide (PA)
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Au over Ni on plug side
- Material flammability class acc. To UL 94: V-0
- IEC 61076-2-111 standard
- Net weight: 31 g
- Designation: Power
- Rated voltage: 63 V
- Dimensioning surge voltage: 1.5 kV
- Pollution level 3
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Coding: L-coding
- Gender: Pen
- Description: Straight;incl. Flange socket;for rear wall mounting
- Shielding: shielded
- Protection class according to IEC 60529:IP65 / IP67 when connected
- PROFINET: Yes
- Tightening torque 2 Nm counter nut
- Material housing: Zinc-Druckguss
- Over voltage category III
- Type
21 03 396 1533
- Product type
PCB adapter
- Total no. of pins
4
- Connection
THR
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Seal
Screw-type locking
- Contact material
Copper alloy
- Case material
Diecast zinc
- Weight
31 g
- Manufacturer part #
21033961533
- Insulation material
Polyamide
- Number of pins
4
- Feature
shielded
Other
63 V
4
Pin
-40-85 °C
Other
1.5 kV
Soldering connection
Nickel/gold
III
Polyamide (PA)
Other
Other
16 A
Documents & Downloads
Datasheet
Datasheet 3008575 HARTING 21033961533 PCB adapter Total number of pins: 4 1 pc(s)
Datasheet 3008575 HARTING 21033961533 PCB adapter Total number of pins: 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008575 HARTING 21033961533 PCB adapter Total number of pins: 4 1 pc(s)
Description
PCB adapter, straight, including Flange socket, for rear wall mounting, reflow soldering connection (THR), rated current 16 A, contacts: 4, copper alloy
