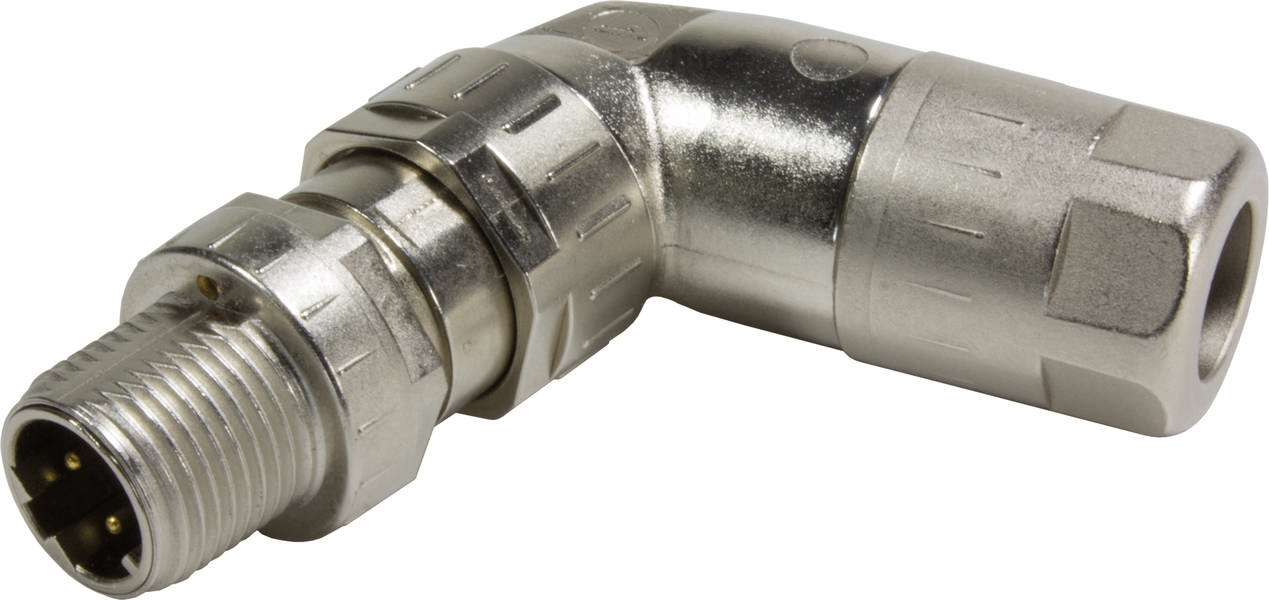

HARTING 21038813805 Connector Total number of pins: 8 Piece 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Total no. of pins
8
Connection
Crimp
Content
1 pc(s)
Type
21 03 881 3805
Datasheet (PDF)
Technical specifications
- Type
21 03 881 3805
- Product type
Connector
- Total no. of pins
8
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Cable Ø (max.)
8.8 mm
- Cable Ø up to
5.7 mm
- Case material
Diecast zinc
AWG 28 ... AWG 23
- Weight
65 g
- Manufacturer part #
21038813805
- Insulation material
Liquid crystal polymer
- Cable Ø range
5.7 - 8.8 mm
- Number of pins
8
- max. cross section
0.25 mm²
- Min. cross section
0.08 mm²
- Cross-section range
0.08 - 0.25 mm²
- Feature
X-coded
- Packaging type
Piece
Gland nut
48 V
TRUE
Zinc
Other
-40-85 °C
Crimp connection
Other
III
0.08-0.25 mm²
0.08-0.25 mm²
0.08-0.25 mm²
0.08-0.25 mm²
IP65/IP67
0.5 A
5.7-8.8 mm
500
