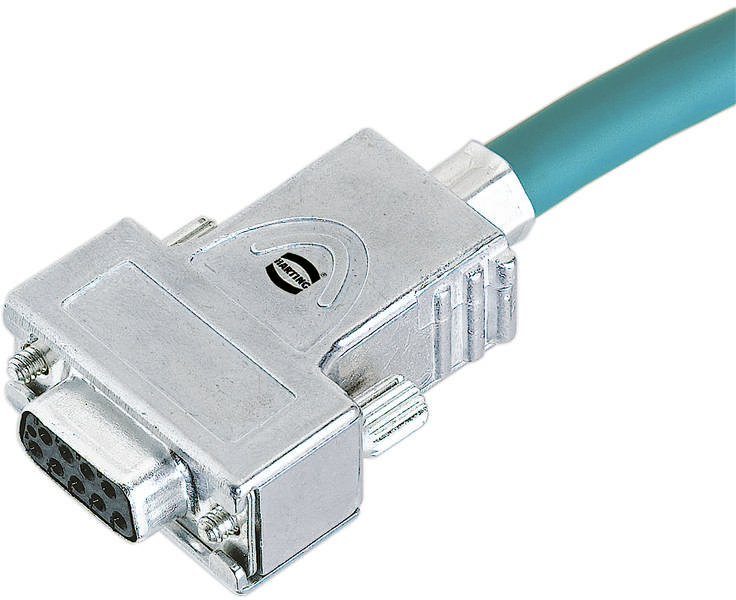

HARTING 61 03 001 1018 61030011018 Shell Diecast zinc 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Diecast zinc
Content
1 pc(s)
Manufacturer part #
61030011018
Datasheet (PDF)
Highlights & Details
Shell housing
- Diecast zinc
Technical specifications
- Locking type: Allen screw with spring ring, thread M3
- Net weight: 81.7 g
- Notes: Part number contains two dummy plugs
- Protection class according to IEC 60529:IP30
- Housing description: With internal grounding
- Tightening torque: 0,4 Nm ground connection;0,4 Nm cover screw;0,4 Nm locking screw
- Size D-Sub 4
- Strain relief: An additional InduCom cable clamp or a crimp flange and crimp sleeve combination is required, depending on the cable used.
- Housing type: Shell housing
- Design: Straight/side cable input
- Cable input: 3x
- D-Sub InduCom housing series
- Material housing: Zinc-Druckguss
- Length: 42.4 mm.
- Width 69.5 mm
- Height: 1.8" (14.8 mm)
- Ground connection: With internal ground connection
- 2-part: yes
- divisible: yes
- Material screw: Steel, nickel-plated
- Ambient temperature: -20 ... +90 °C
- Packaging type
Piece
- Product type
Shell
- Case material
Diecast zinc
- Content
1 pc(s)
- Manufacturer part #
61030011018
- Width
69.5 mm
- Height
14.8 mm
- Length
42.4 mm
- Features
Cable input (lateral, straight)
- Type
61 03 001 1018
IP30
Screw
Other
FALSE
Metal
FALSE
Documents & Downloads
Datasheet
Datasheet 3003903 HARTING 61 03 001 1018 61030011018 Shell Diecast zinc 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003903 HARTING 61 03 001 1018 61030011018 Shell Diecast zinc 1 pc(s) Piece
Description
Shell housing with internal earthing, size: D-Sub 4, hexagon socket screw with threaded spring ring M3, straight/side cable input, 3x
