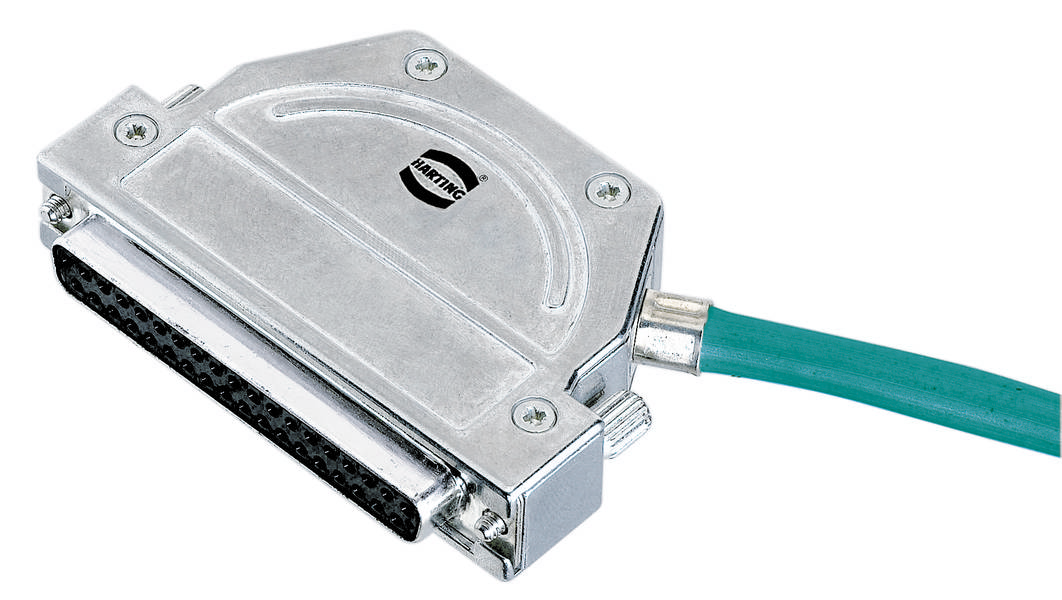

HARTING 61 03 001 3015 61030013015 Shell Diecast zinc 40 ° 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Shell
Case material
Diecast zinc
Connection angle
40 °
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Shell housing
- Diecast zinc
Technical specifications
- Locking type: Knurled screw thread M3
- Net weight: 55.4 g
- Protection class according to IEC 60529:IP30
- Housing description: With internal grounding
- Tightening torque: 0,4 Nm ground connection;0,4 Nm cover screw;0,4 Nm locking screw
- Size D-Sub 3
- Strain relief: An additional InduCom cable clamp or a crimp flange and crimp sleeve combination is required, depending on the cable used.
- Housing type: Shell housing
- Design:40°-cable input
- Cable input 1x
- D-Sub InduCom housing series
- Material housing: Zinc-Druckguss
- Length: 34.7 mm
- Width 53 mm
- Height: 1.8" (14.8 mm)
- Ground connection: With internal ground connection
- 2-part: yes
- divisible: yes
- Material screw: Steel, nickel-plated
- Ambient temperature: -20 ... +90 °C
- Packaging type
Piece
- Product type
Shell
- Case material
Diecast zinc
- Connection angle
40°
- Content
1 pc(s)
- Manufacturer part #
61030013015
- Width
53 mm
- Height
14.8 mm
- Length
34.7 mm
- Features
+ PG
- Type
61 03 001 3015
IP30
Screw
Angled
FALSE
Metal
FALSE
Documents & Downloads
Datasheet
Datasheet 3003898 HARTING 61 03 001 3015 61030013015 Shell Diecast zinc 40 ° 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003898 HARTING 61 03 001 3015 61030013015 Shell Diecast zinc 40 ° 1 pc(s) Piece
Description
Shell housing, with internal earthing, size: D-Sub 3, knurled screw thread M3, 40° cable input, 1x, material housing: zinc die-cast
