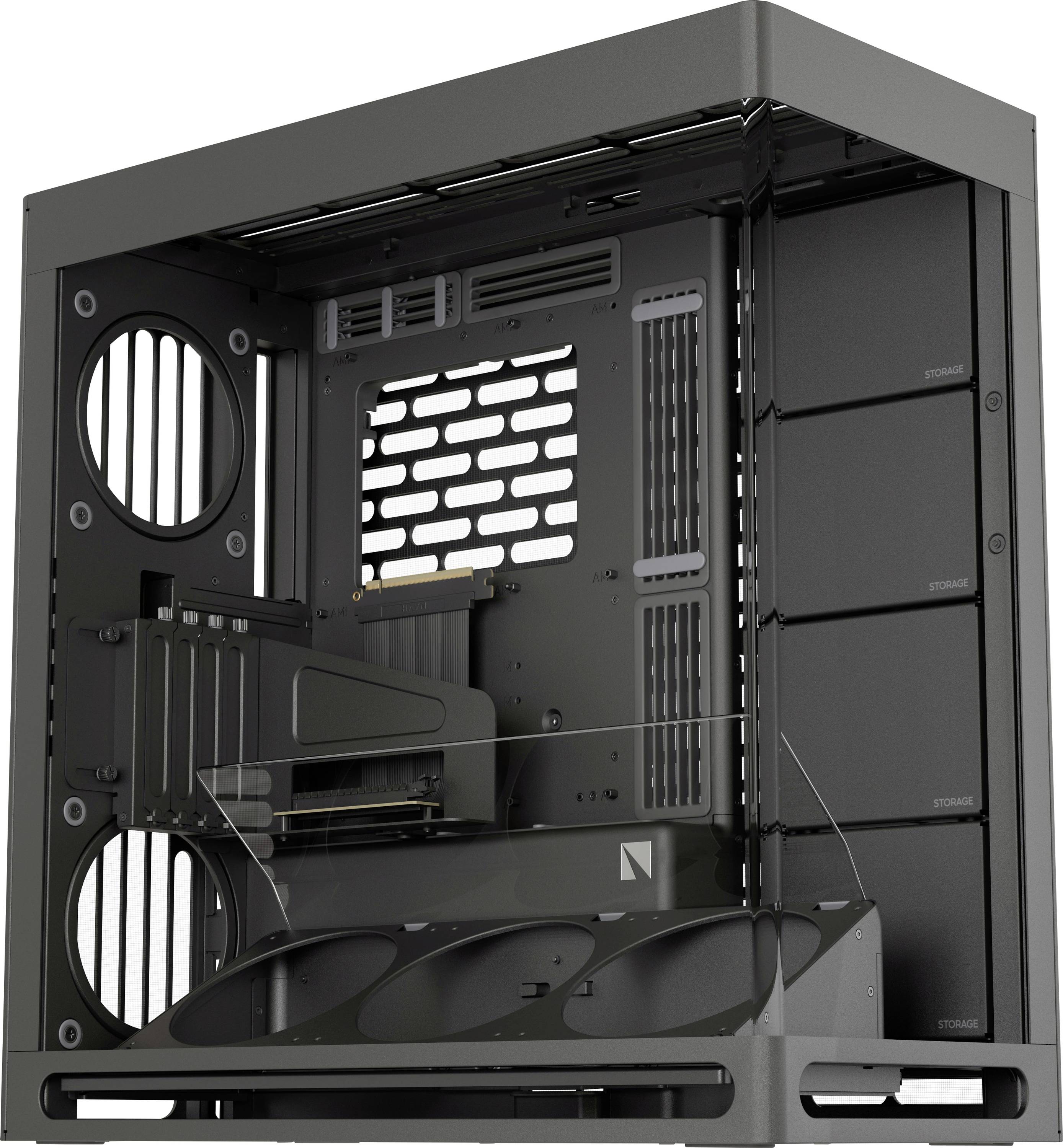

An open computer case with multiple fan mounts, a vertical graphics card holder, and space for internal components.

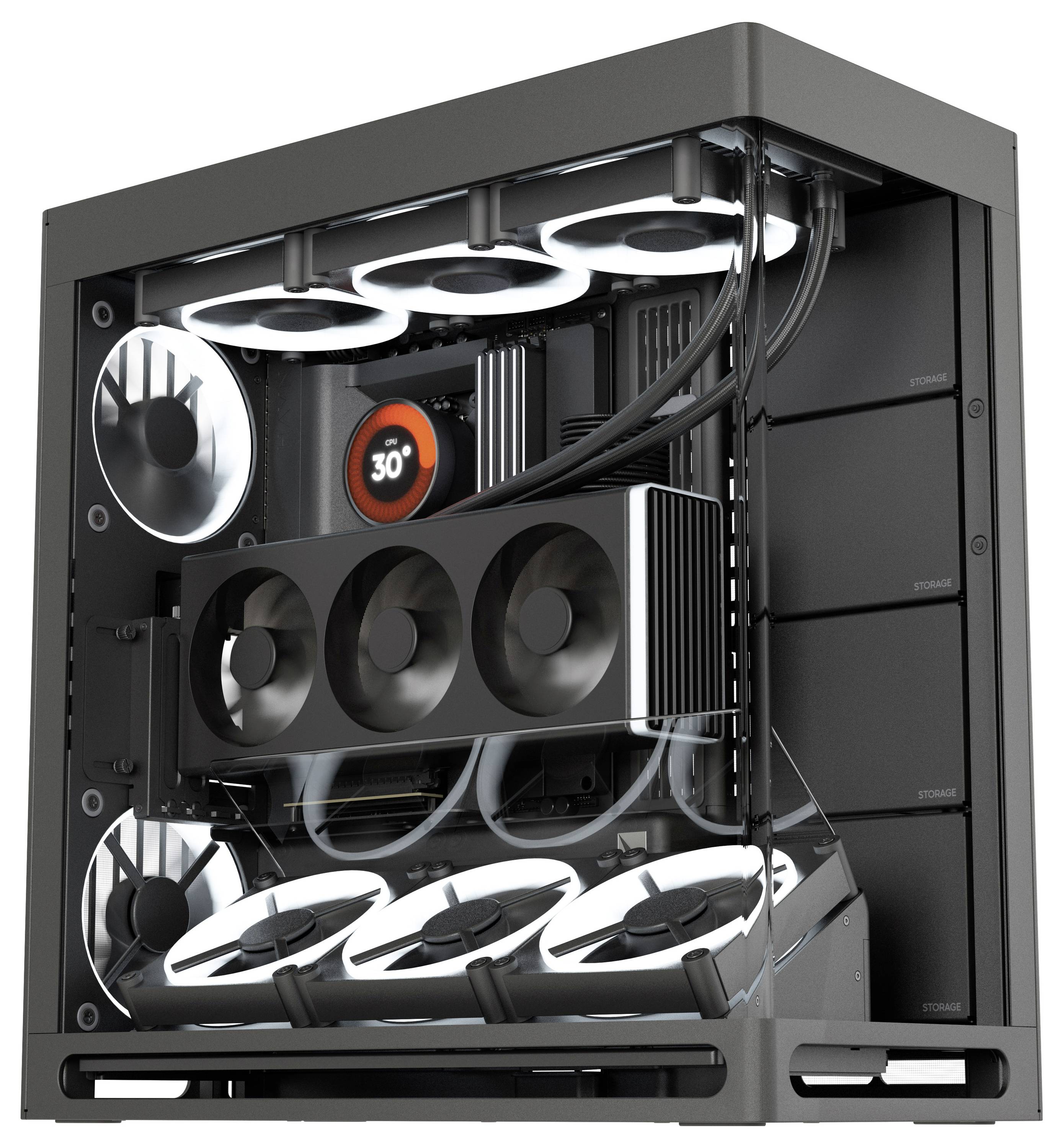

High-performance gaming PC with transparent case cover revealing a powerful graphics card, cooling fans, and temperature display.

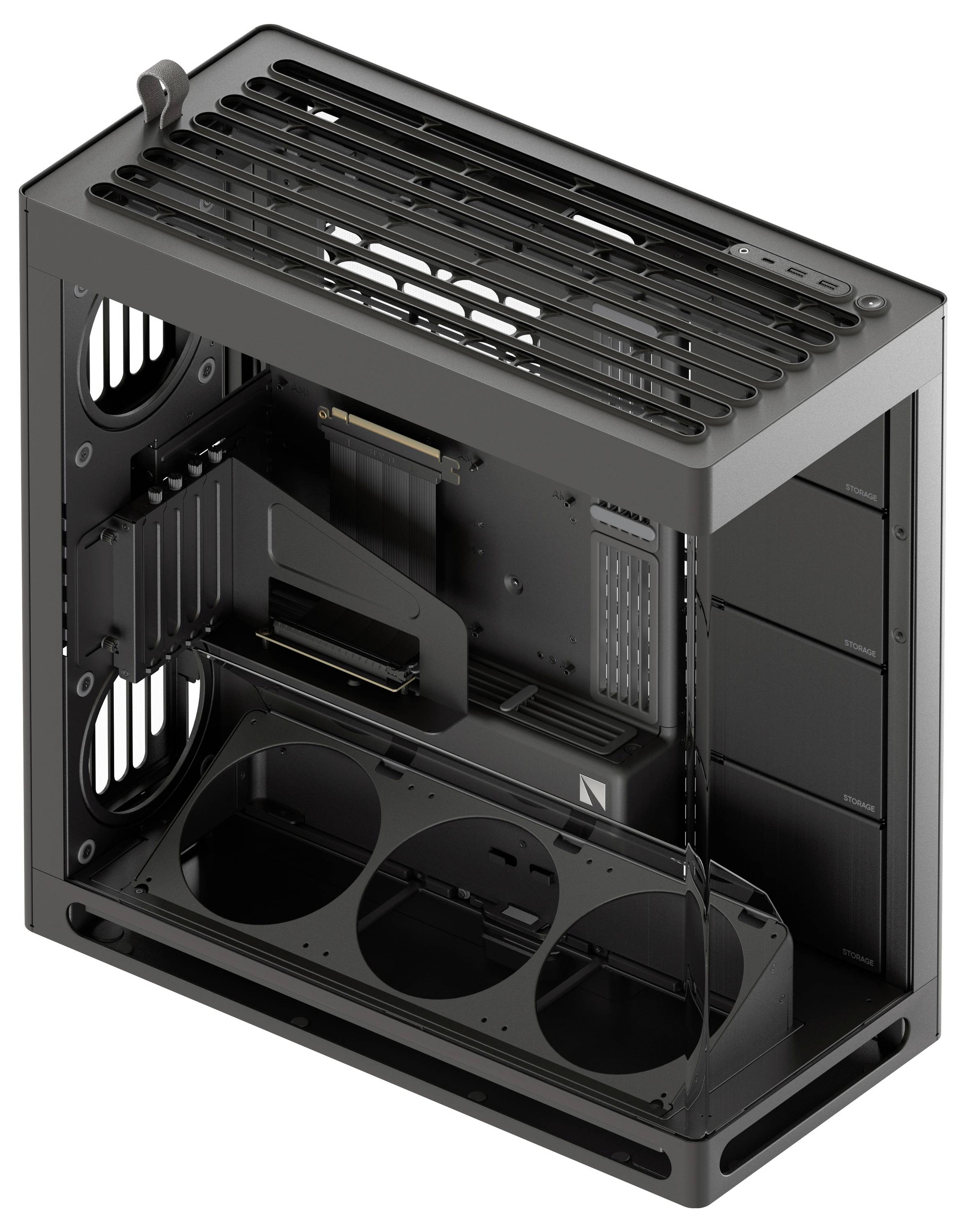

Black computer case with an open design; shows space for multiple fans and component installations.

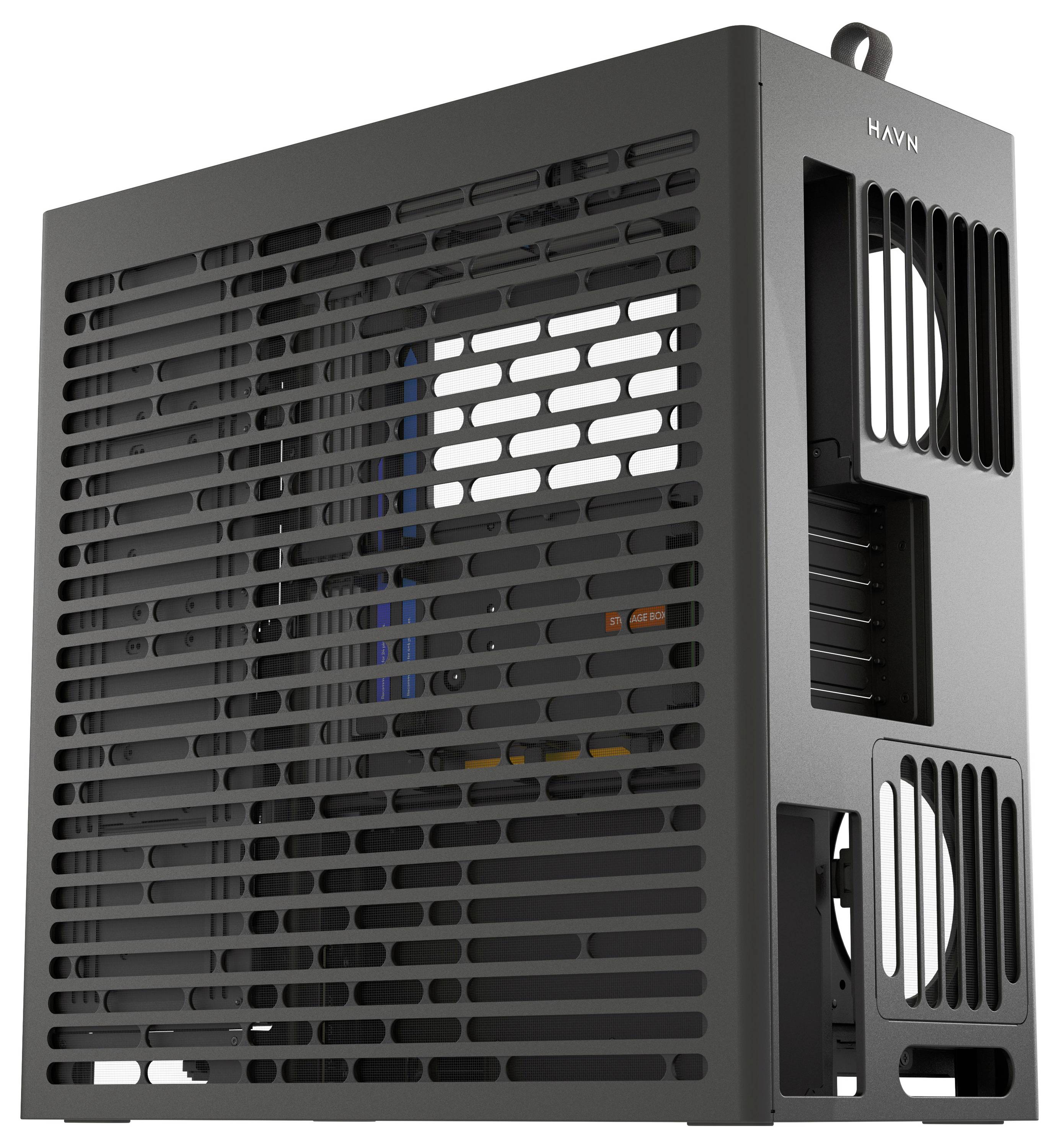

A grey computer case with ventilation slots and a viewing window. The top surface bears the lettering 'HAVN'.

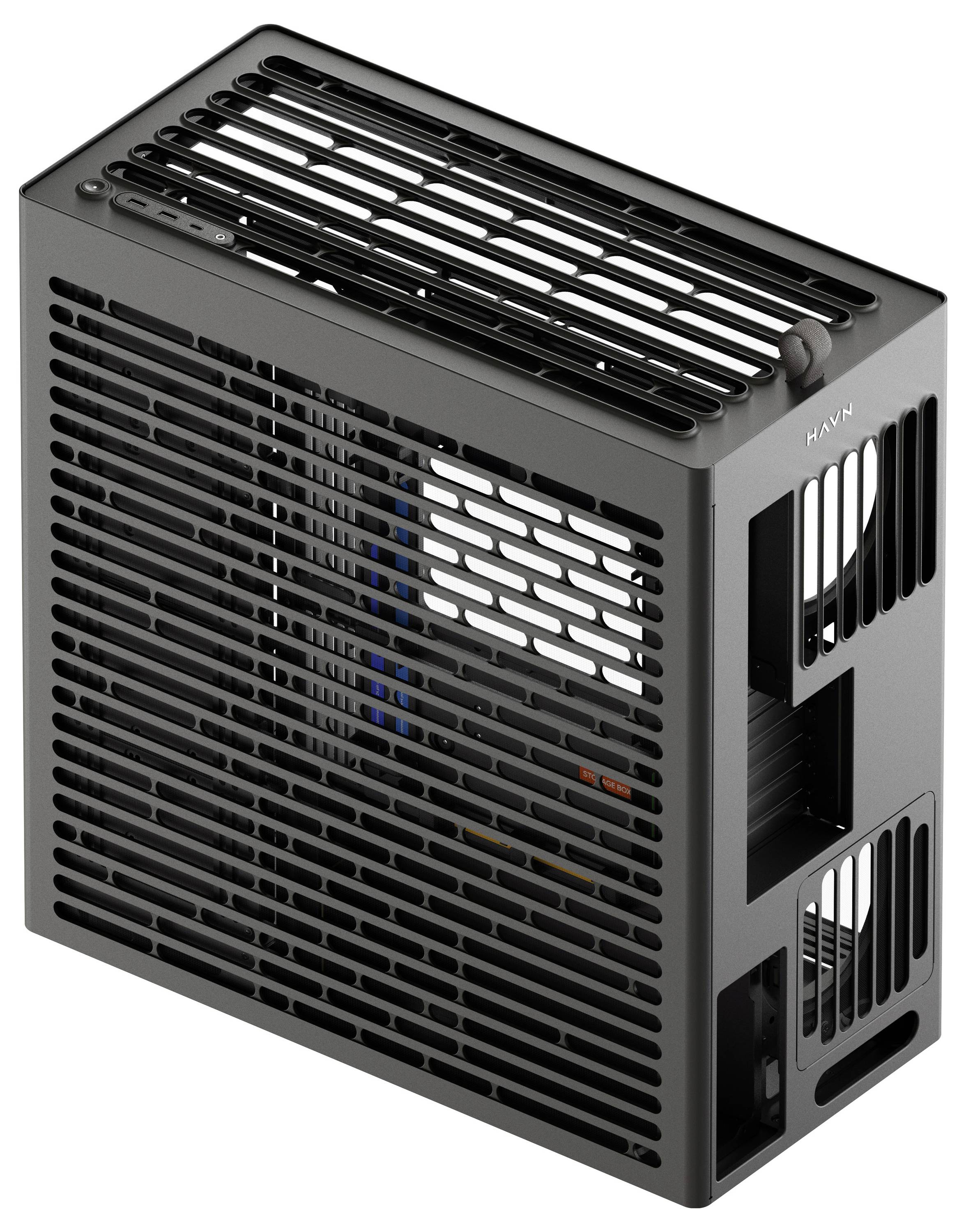

A rectangular, black computer case with side ventilation slots and the HAVN lettering in the top right corner.

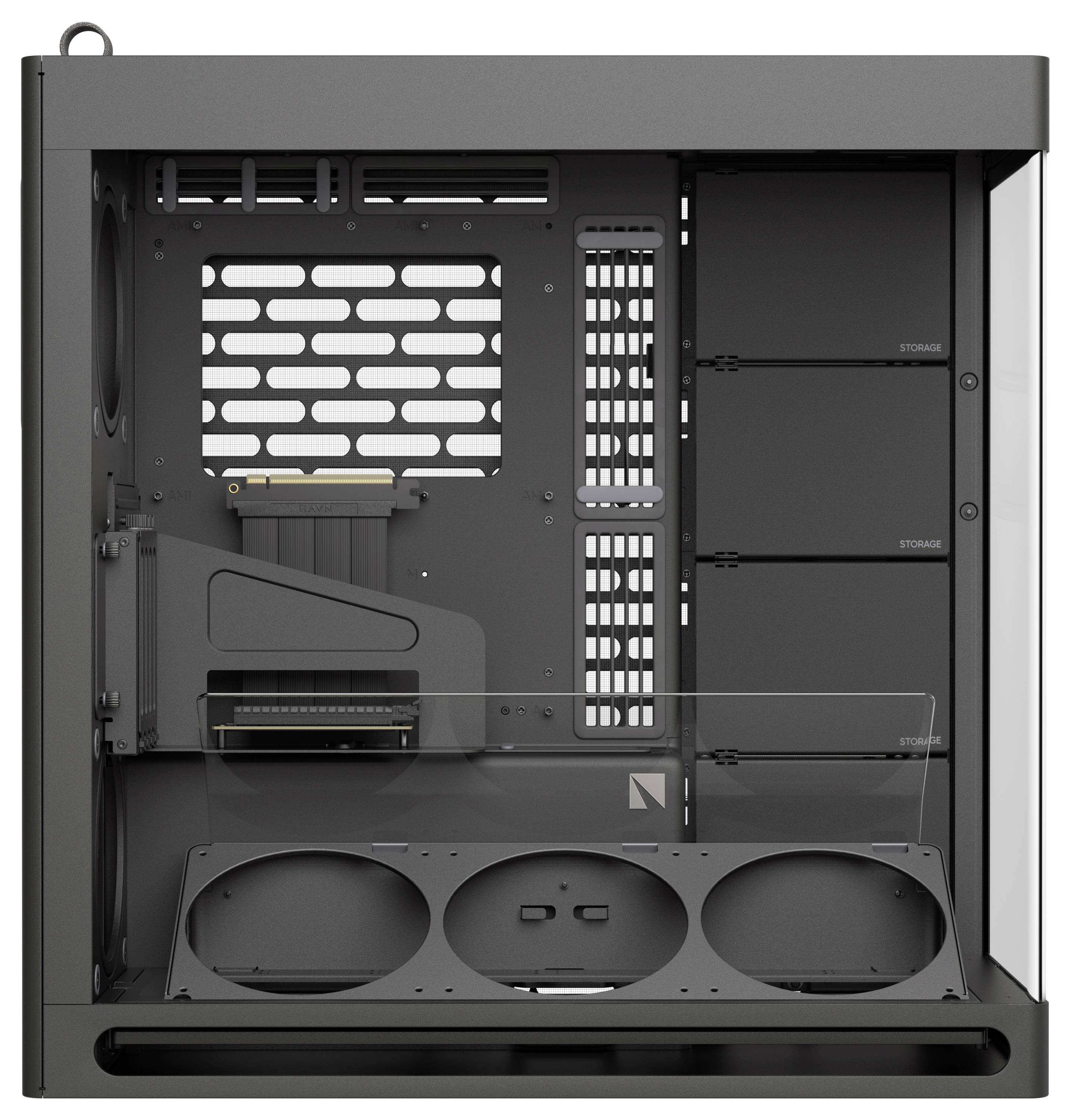

An empty computer tower with space for cooling fans, graphics card, and storage units visible inside.

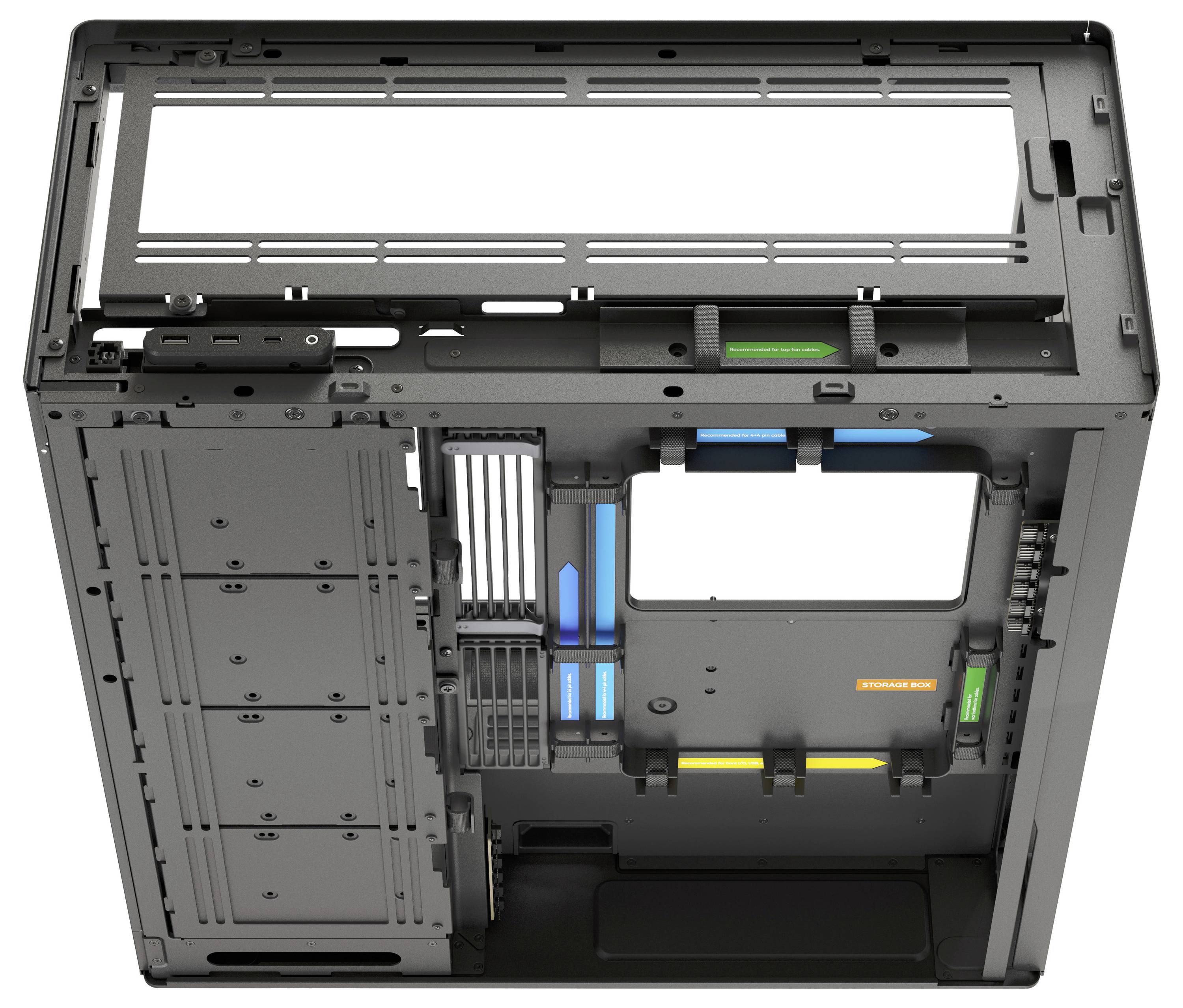

Computer case, interior, showing mounting spaces for motherboard, hard drives, and fans; cage structures visible, no components installed.

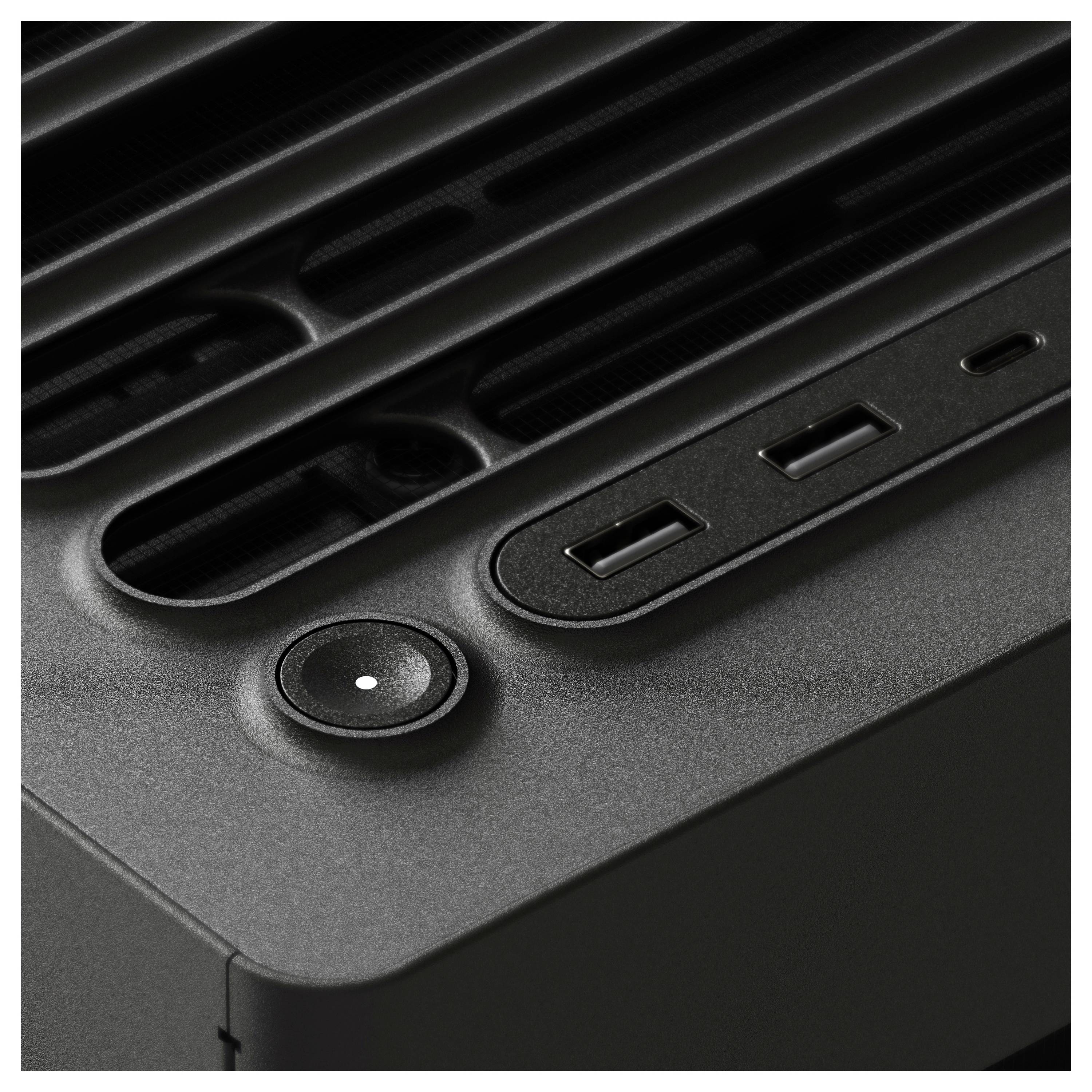

'Close-up of a black computer tower with USB ports and power switch on the top.'

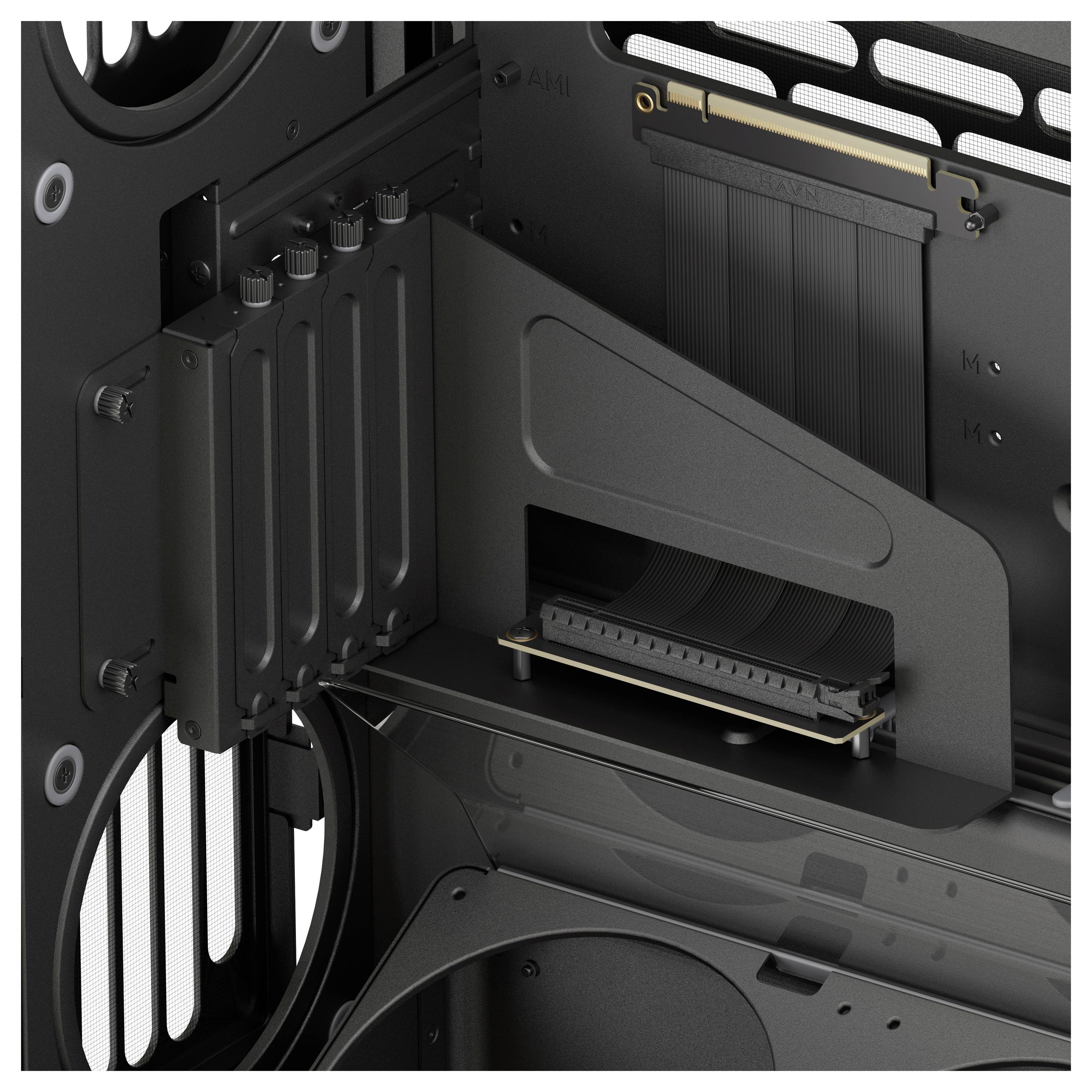

Internal view of a computer case with a vertical expansion slot for a graphics card and multiple expansion slots.

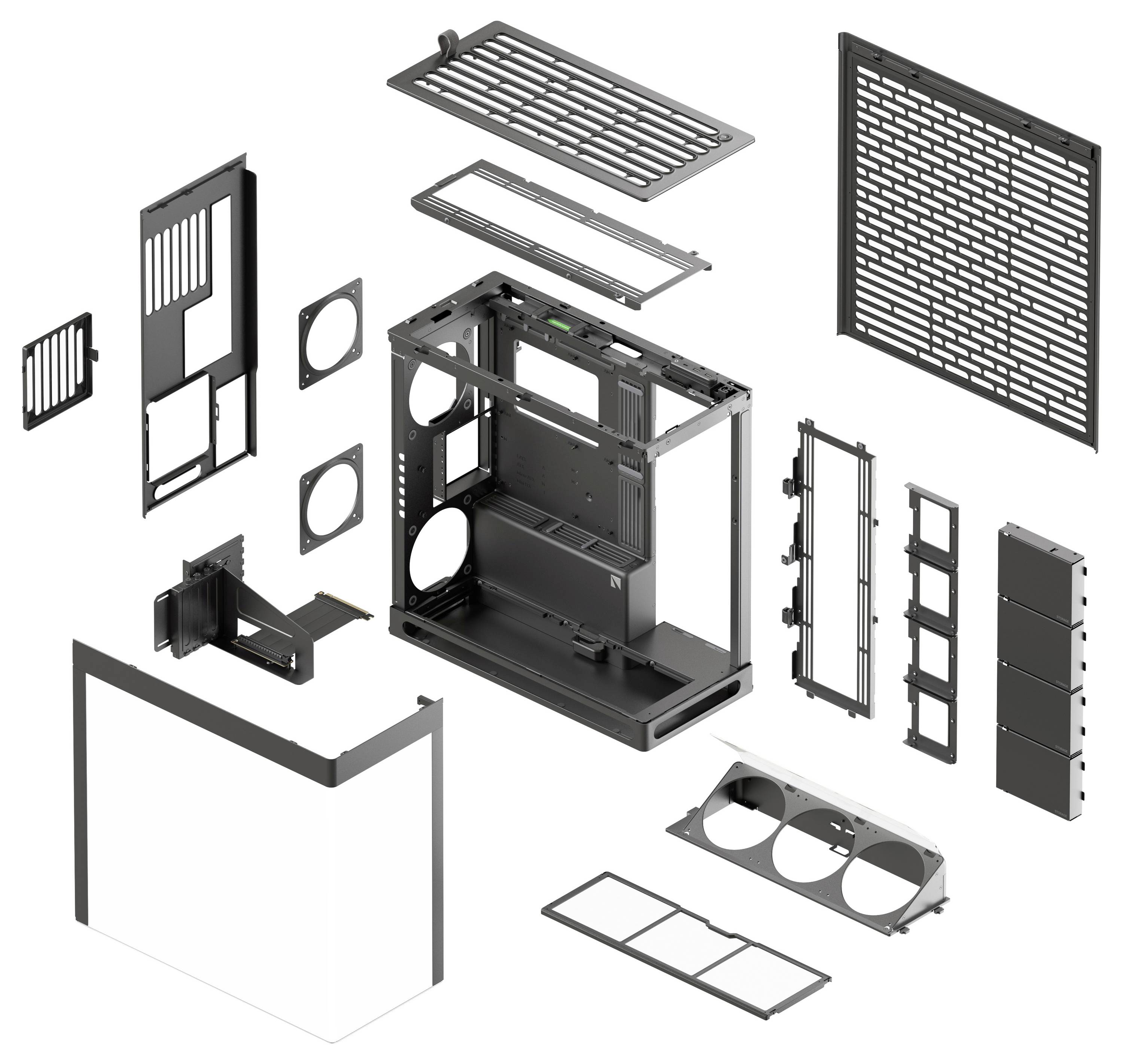

Exploded view of a computer case with detached components such as side panels, fans, and frame. Main structure in the centre.

1/10

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

HAVN HAVN HS 420 VGPU PC-Gehäuse, Midi-Tower, E-ATX, Tempered Glass, PCIe 5.0 Riser Midi tower Casing, Game console casing, PC casing

Showcase casing in black, vertical GPU kit with PCIe 5.0, with curved Tempered Glass, up to 11x 140-mm fan, space for two 420-mm radiators simultaneously, mainboards to E-ATX and GPUs up to 470 mm, two PWM fan hubs included

Technical specifications

Material: Steel, tempered glass, ABS, nylon, zinc alloy, NdFeB
Weight 19 kg.
Form factor: E-ATX (up to 277 mm), ATX, Micro-ATX, Mini-ITX
Total possible fans:
Cover 3x 120 / 3x 140 mm
Side: 3x 120 / 3x 140 mm
Base: 3x 140 mm
Rear side: 2x 120 / 2x 140 mm
Preinstalled fan: None
Radiator mounts:
Lid:1x 420 / 1x 360 mm
Side:1x 420/1x 360 mm
Dust filter: Cover, base, side, back
Drive bays:
4x 3.5/8x 2.5" (internal)
Power supply: 1x ATX (optional)
Extension slots:4 (vertical)
Display bracket:
VESA compatibility 75 x 75 mm / 100 x 100 mm
Maximum screen size: 14 inches
I/O-panel:
1x Power button
1 x reset button
2x USB 3.0 (type A, USB 3.2 1st Gen 1, max. 5 Gbit/s)
1x USB 3.1 (type C, USB 3.2 Gen 2, max. 10 Gbit/s)
1x 3.5-mm combo port
Maximum graphics card length 470 mm
Maximum graphics card width 195 mm
Maximum CPU-cooler height 185 mm

Product type: Casing

Case type: Midi tower

Factory colour: Black

Interfaces (front): Audio line in
Audio line out

6.4 cm (2.5") internal slots: 8

8.9 cm (3.5") internal slots: 4

Width: 259.5 mm

Height: 547 mm

Depth: 541 mm

Weight: 19000 g

Form factor: E-ATX
ATX
Micro-ATX
Mini-ITX

No. of USB type A 3.0 ports: 2 x

No. of USB 3.0 ports: 1 x

Wireless charging: No

Dim: (W x H x D) 259.5 x 547 x 541 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3384553 HAVN HAVN HS 420 VGPU PC-Gehäuse, Midi-Tower, E-ATX, Tempered Glass, PCIe 5.0 Riser Midi tower Casing, Game console casi

Description

Showcase casing in black, vertical GPU kit with PCIe 5.0, with curved tempered glass, up to 11x 140 mm fan

This text is machine translated.

Features

Optimized GPU cooling: Vertical GPU kit directs air directly to the graphics card for maximum performance
Maximum performance: PCIe 5.0 riser cable for the latest graphics cards
Flexible cooling options: Space for up to eleven 140 mm fans and two 420 mm radiators
GPU in the spotlight: Panorama glass panel sets your GPU in the perfect scene
Clean cable management: The SimpleCable cable management provides for a tidy and simple cable management

Description

Showcase casing in black, vertical GPU kit with PCIe 5.0, with curved tempered glass, up to 11x 140 mm fan

This text is machine translated.

Features

Optimized GPU cooling: Vertical GPU kit directs air directly to the graphics card for maximum performance
Maximum performance: PCIe 5.0 riser cable for the latest graphics cards
Flexible cooling options: Space for up to eleven 140 mm fans and two 420 mm radiators
GPU in the spotlight: Panorama glass panel sets your GPU in the perfect scene
Clean cable management: The SimpleCable cable management provides for a tidy and simple cable management
