Name: HAVN HAVN HS 420 VGPU PC-Gehäuse, Midi-Tower, E-ATX, Tempered Glass, PCIe 5.0 Riser Midi tower Game console casing, Casi
Brand: HAVN
SKU: 3384552

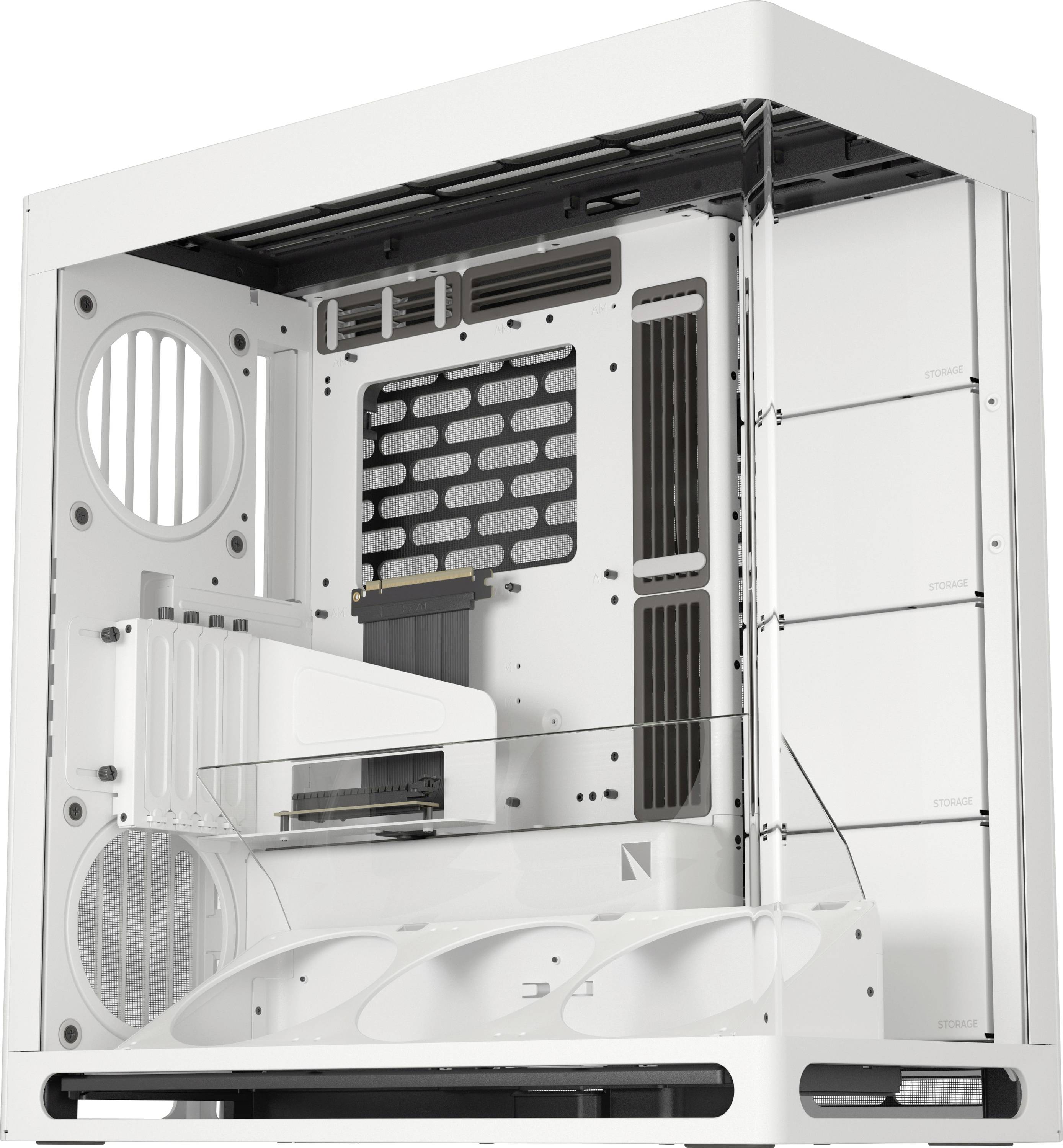

A white computer case with an open side panel, ready for the installation of hardware components, with clear structures and compartments.

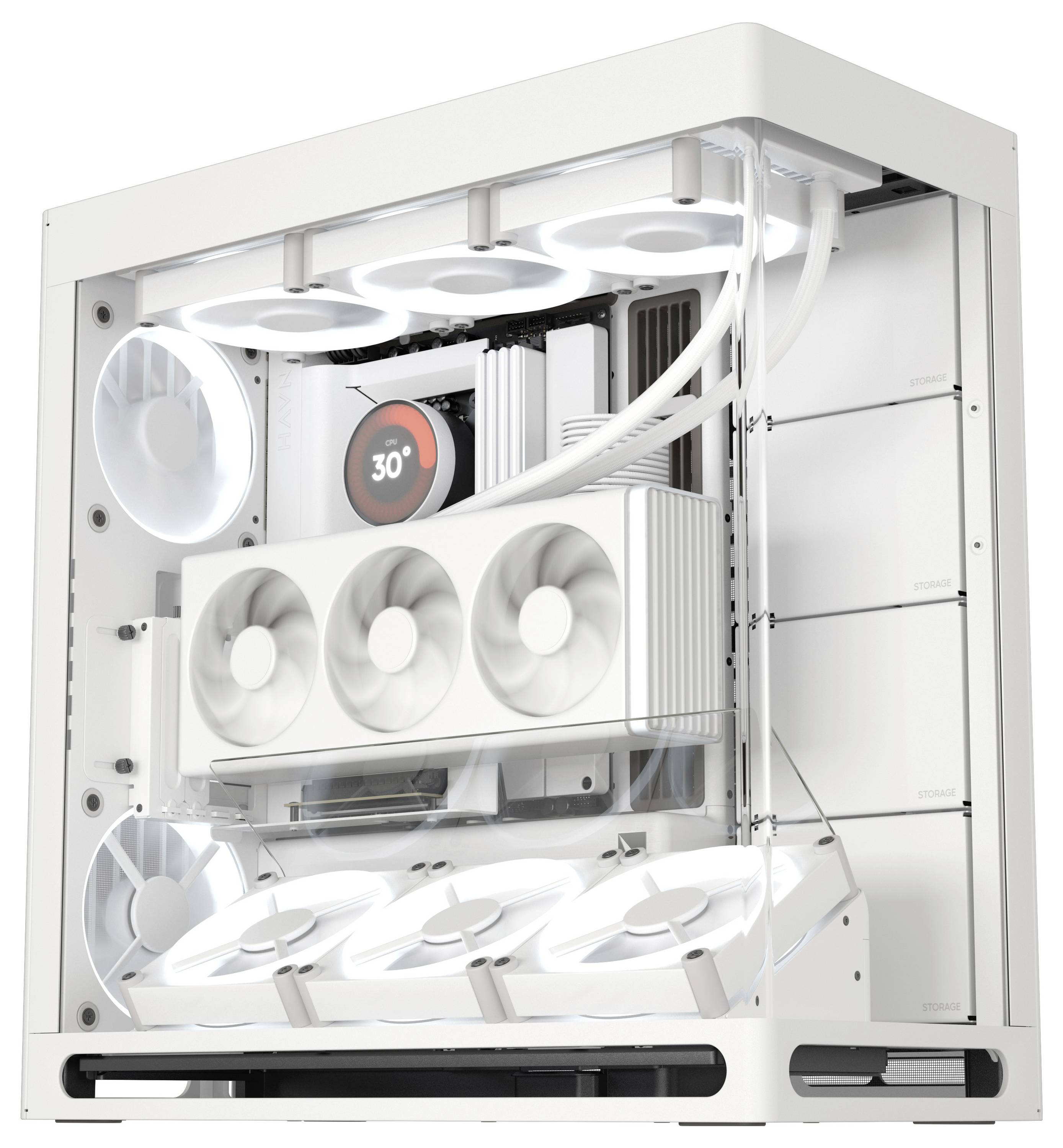

A white computer case with transparent sides reveals several illuminated fans and a temperature display reading 30 degrees.

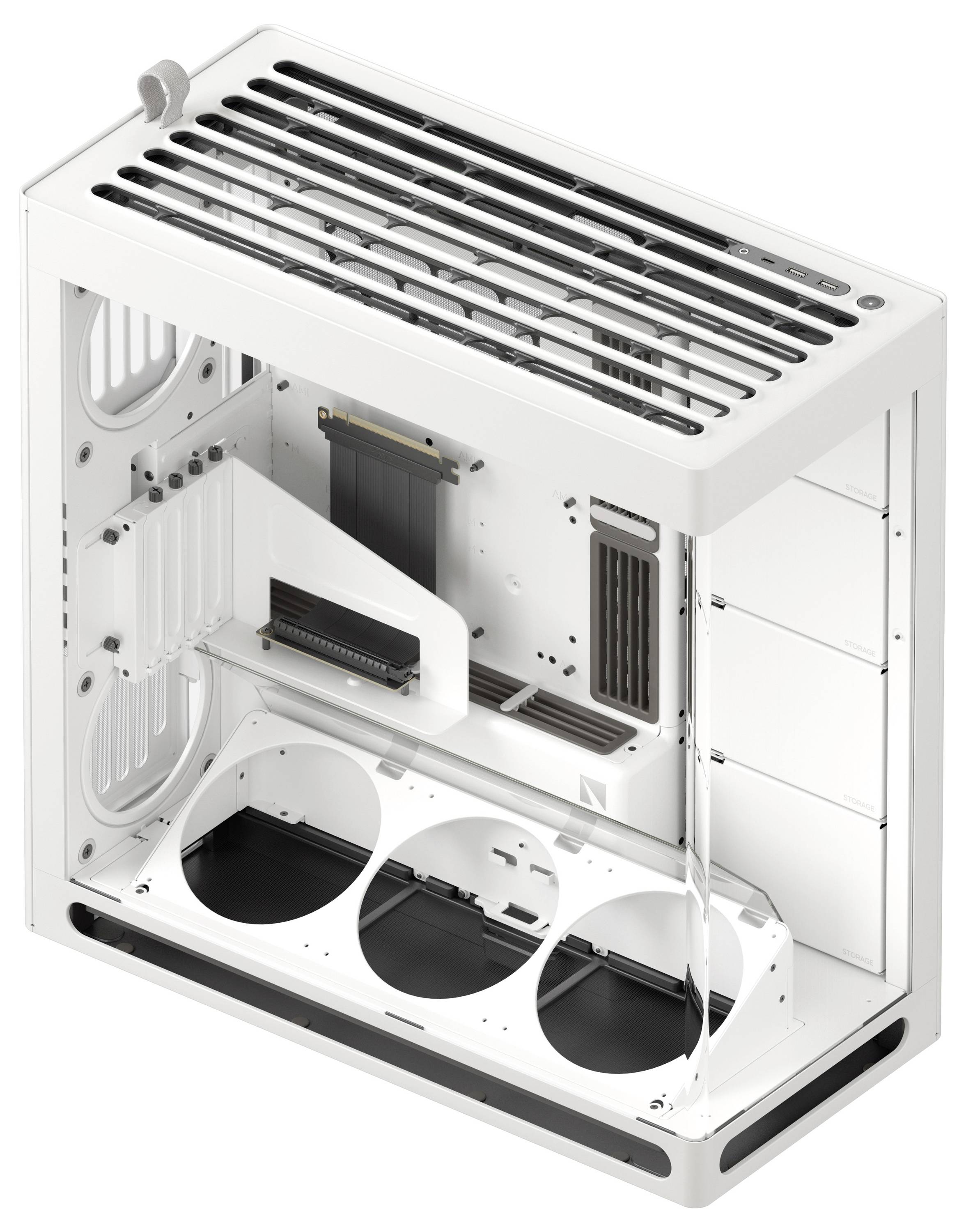

A white computer case with two large fans at the bottom and a perforated ventilation area at the top. It is open, revealing internal mounting brackets and expansion slots.

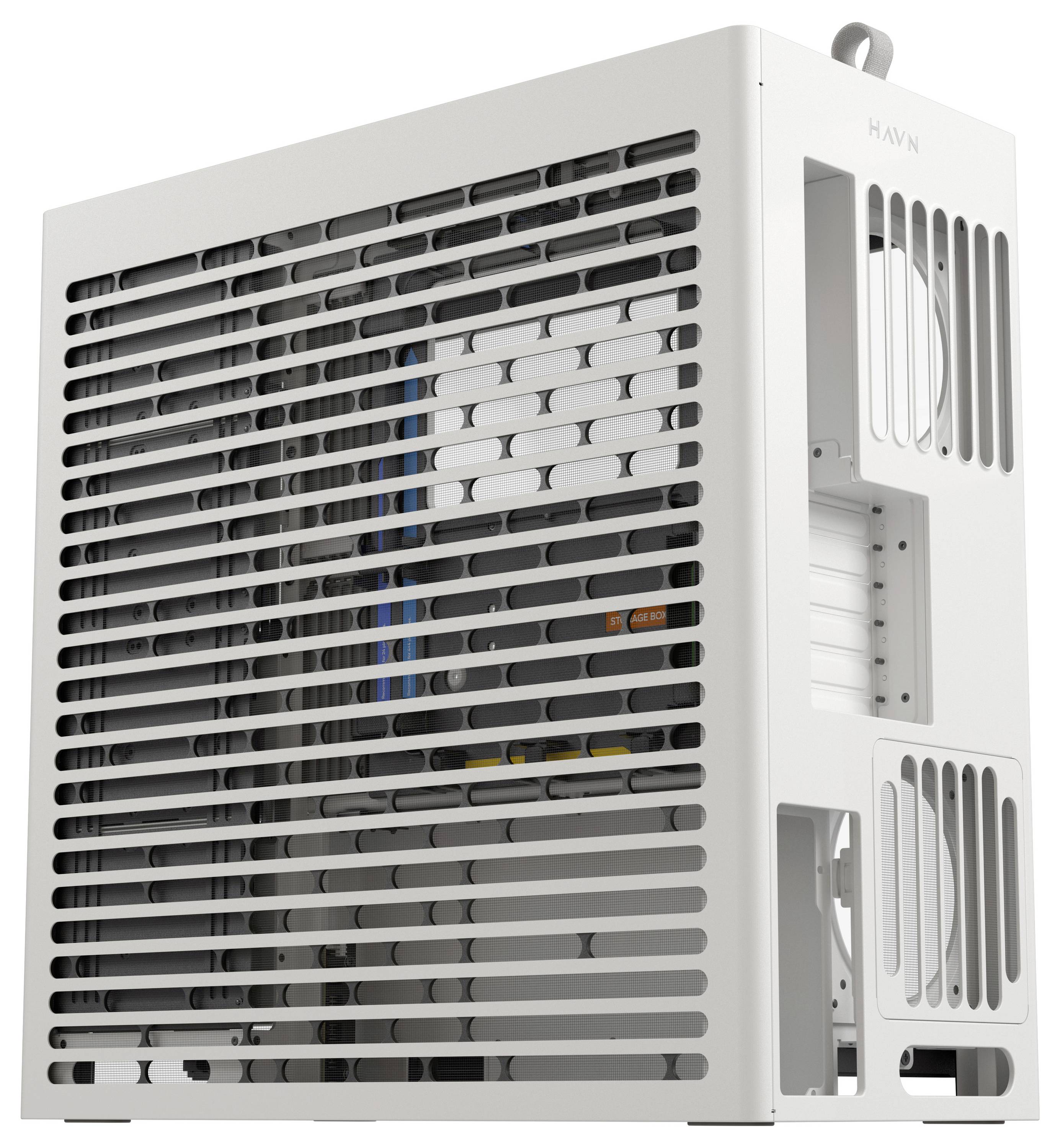

A white computer case with tubular ventilation slots and a clean design. Internal components and cables are visible.

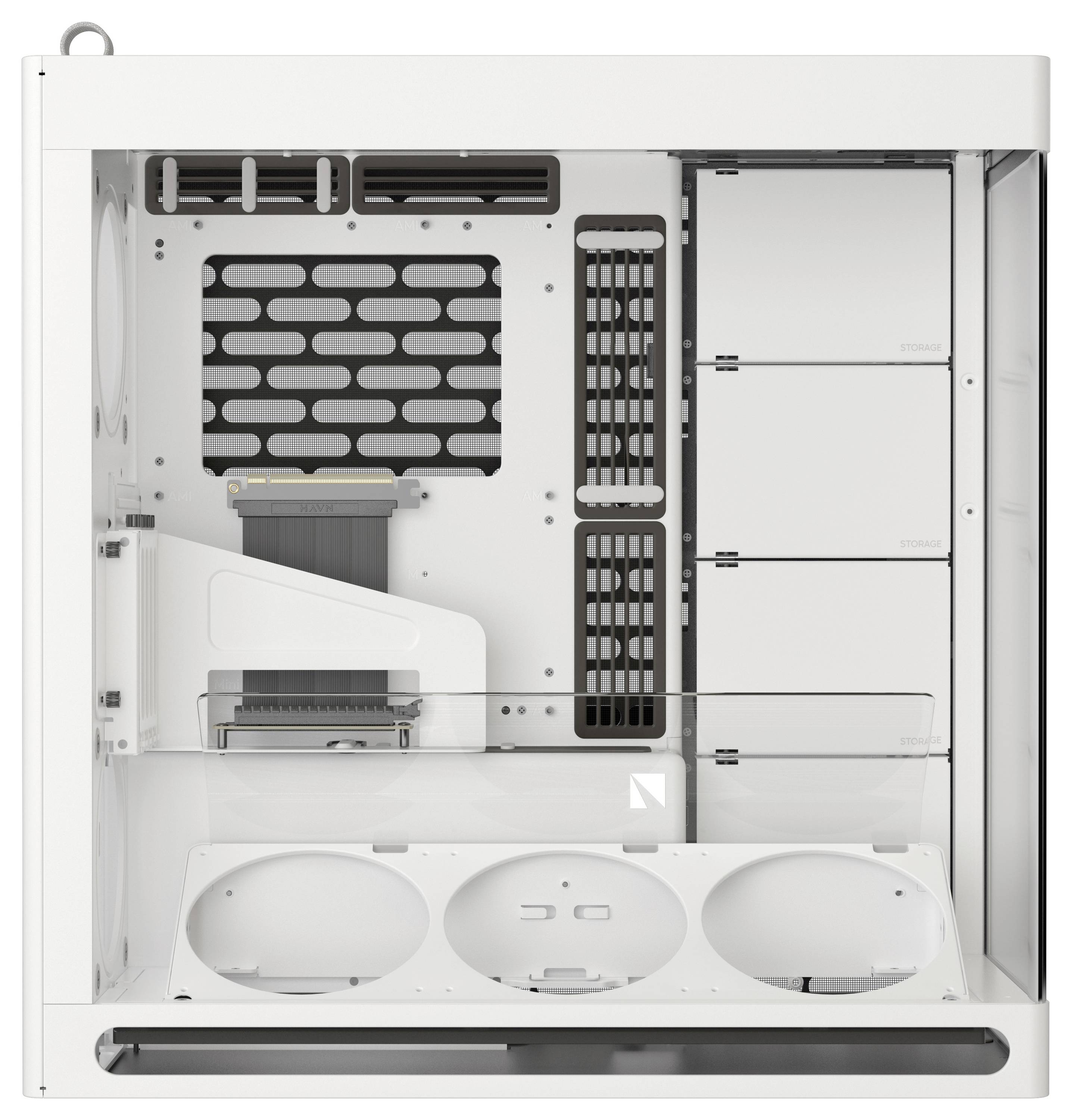

A blank, white computer case without internal components, showing drive bays and fan mounting locations.

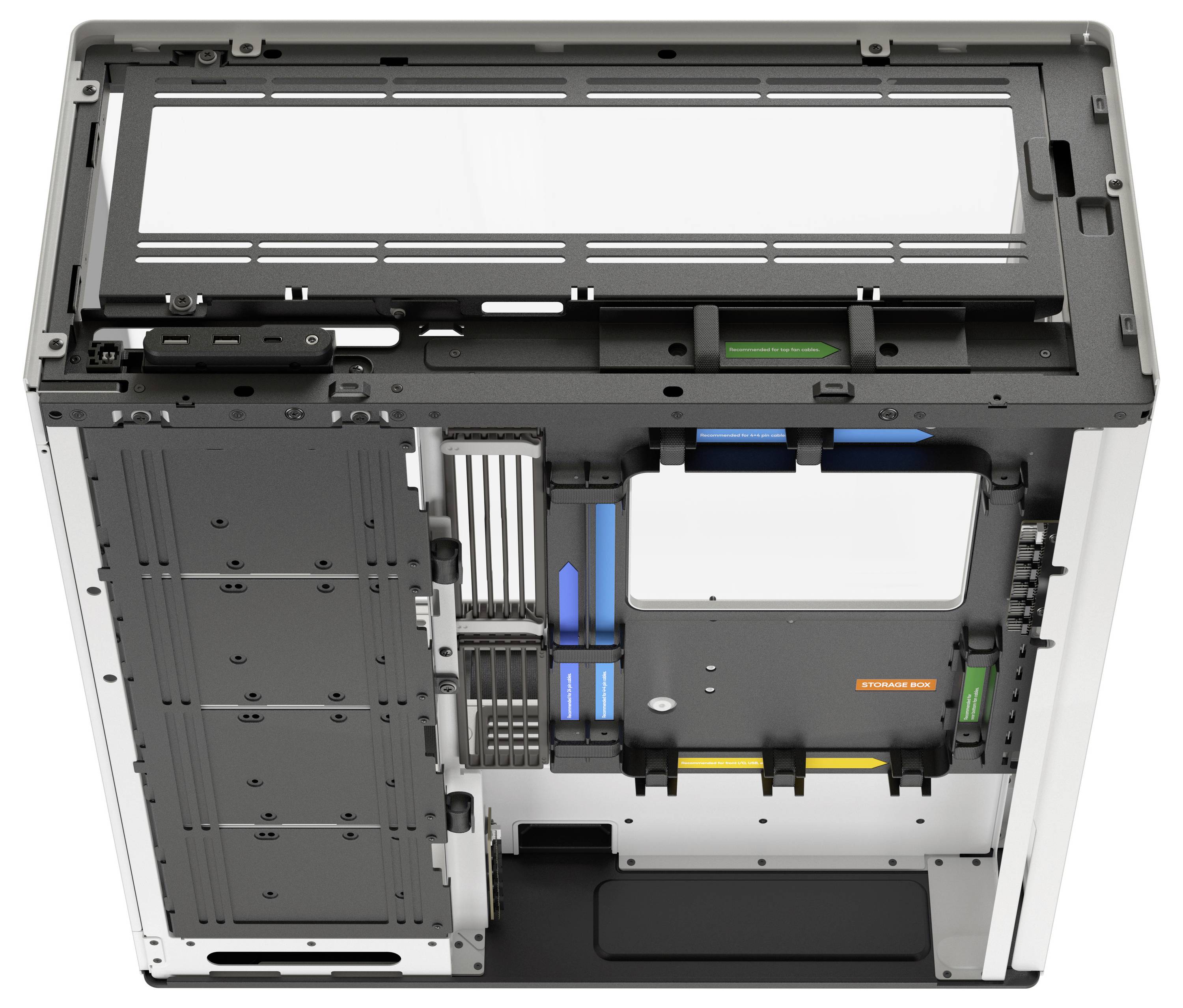

Computer case viewed from above, without components. Placeholder areas for motherboard and hard drive marked in different colours.

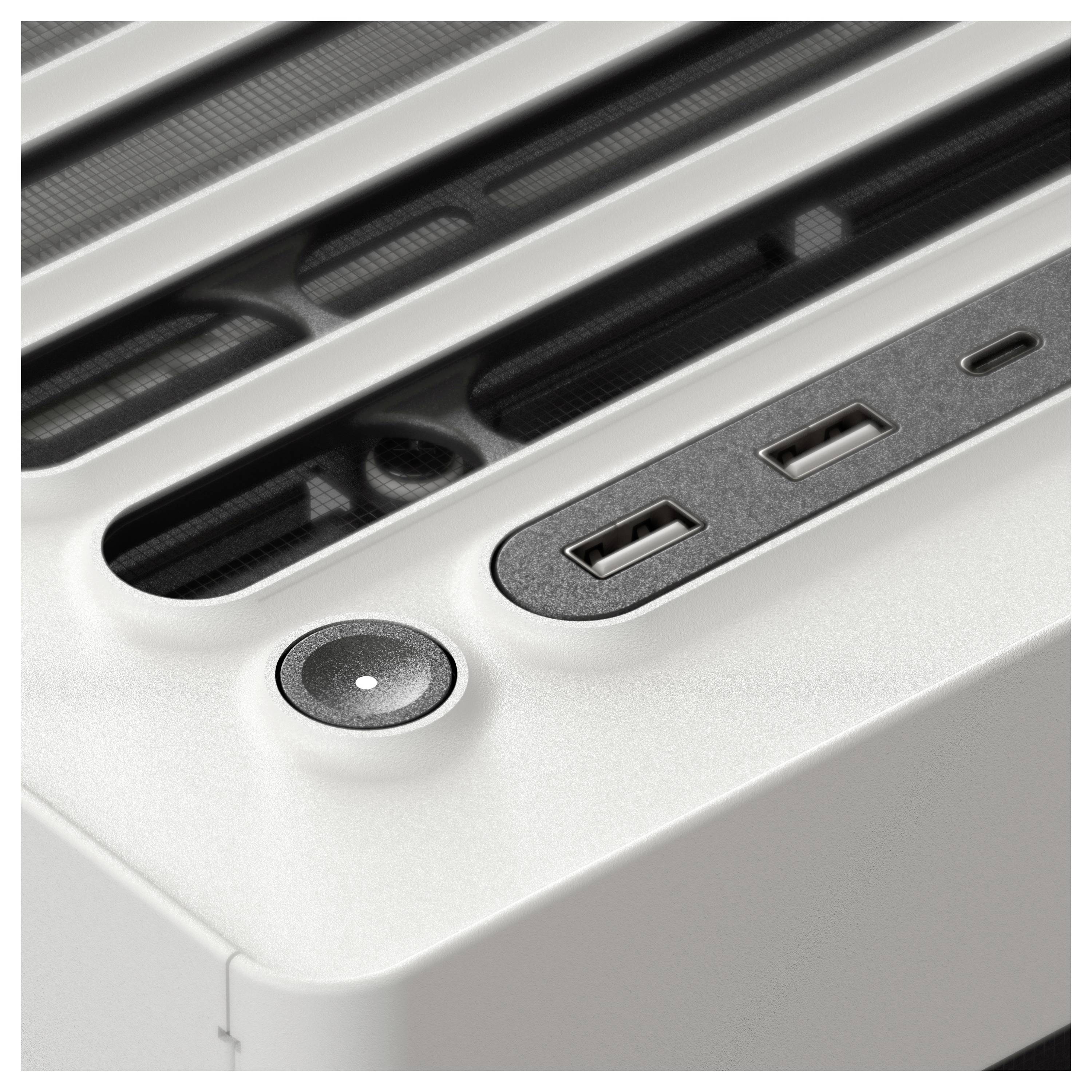

Close-up of a white computer tower with USB ports and a power button on the front.

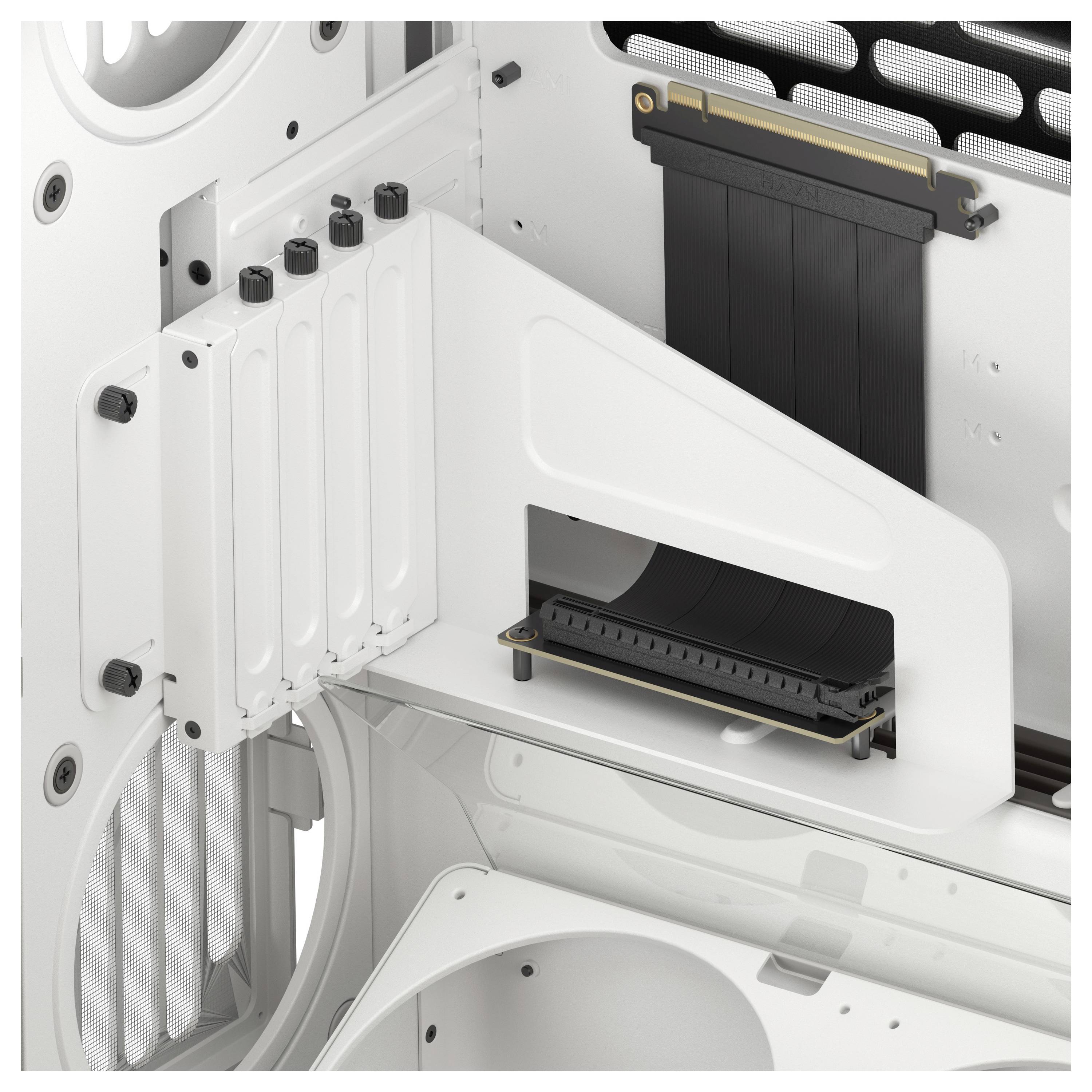

Interior view of a computer chassis with a vertically mountable PCIe socket. Expansion card slots are visible.

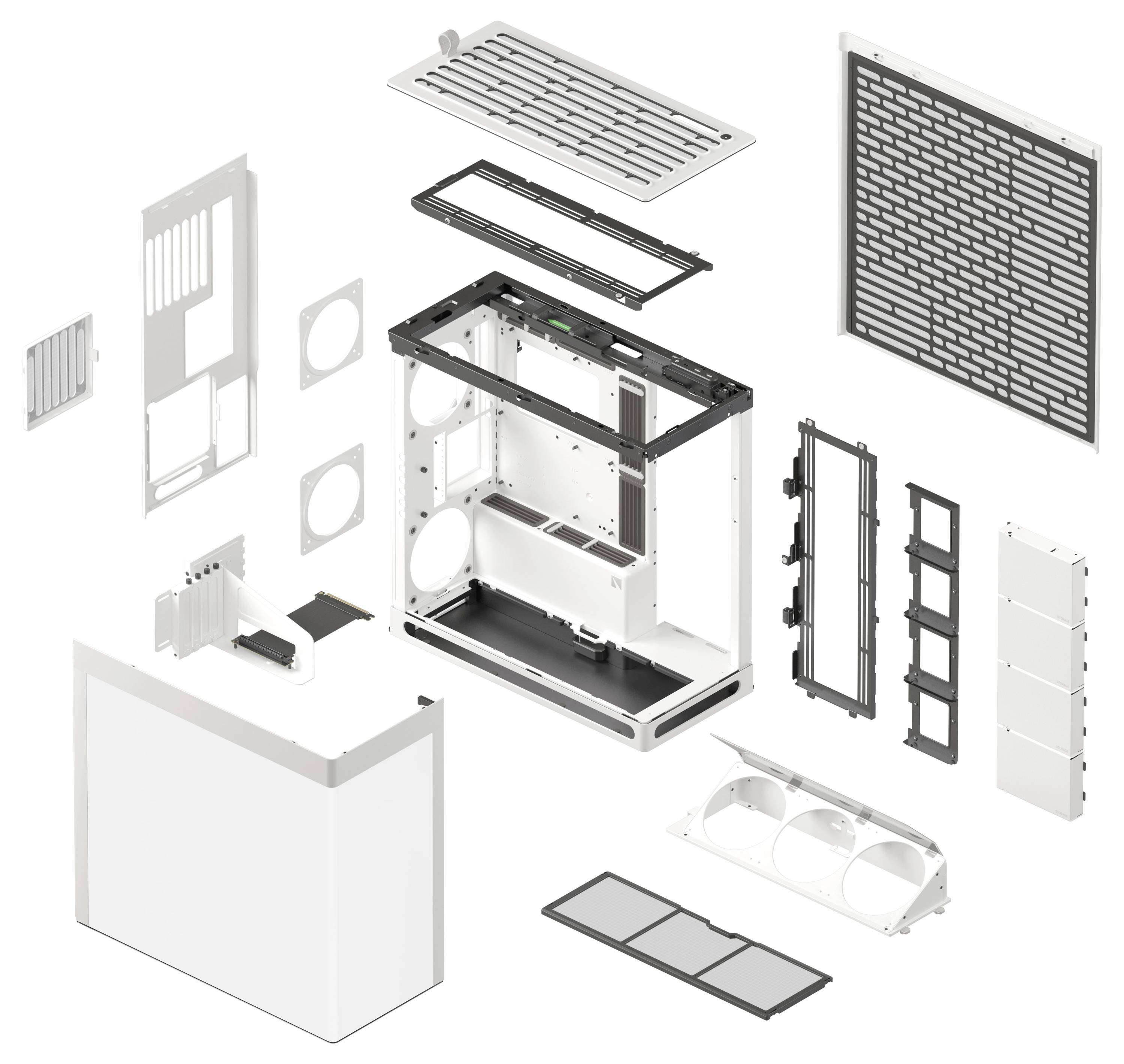

'Exploded view of a PC case with individual removed parts such as side panels, fan frames, and dust filters, revealing the components.'

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

HAVN HAVN HS 420 VGPU PC-Gehäuse, Midi-Tower, E-ATX, Tempered Glass, PCIe 5.0 Riser Midi tower Game console casing, Casing, PC casing

Showcase casing in white, vertical GPU kit with PCIe 5.0, with curved Tempered Glass, up to 11x 140-mm fan, space for two 420-mm radiators simultaneously, mainboards to E-ATX and GPUs up to 470 mm, two PWM fan hubs included

Technical specifications

Display
Display included
No
Housings
Housing type
Midi-Tower
Motherboard support
Compatible motherboard formats
ATX, E-ATX, Micro-ATX, Mini-ITX
max. Motherboard form factor
E-ATX
Internal dimensions
max. CPU-cooler height
185 mm
max. Graphics card length
470 mm
max. Mains adapter length / depth
220 mm
Power supply unit
Power supply format
ATX, SFX, SFX-L
Power supply position
rear side / below
Fan support
Fan 120 mm
8
Fan 140 mm
11
Drive bays
2.5 inches internal
8
3.5 inches internal
4
External connections
USB 3.1 (external) type C
1
USB 3.0 (external) type A
2
Audio outputs & inputs
1x output/input combo (3.5-mm jack, 4-pin, TRRS)
Housing features
Position I/O
Cover
Side panel
With window
Cable management
Yes
Includes filter
Yes
Expansion slots
Expansion / PCI slots
4
Installation
Internal monitor bracket
Yes
VESA standard
100 x 100 mm, 75 x 75 mm
Materials
Materials
ABS, nylon, SGCC (steel), tempered glass / hard glass, zinc alloy
Lighting
Lighting
No
Product series
Product series / family
HS 420
Included in the delivery
Pre-installed fan
none

Product type: Game console casing

Case type: Midi tower

Factory colour: White

Interfaces (front): Audio line in
Audio line out

6.4 cm (2.5") internal slots: 8

8.9 cm (3.5") internal slots: 4

Width: 259.5 mm

Height: 547 mm

Depth: 541 mm

Weight: 19000 g

Form factor: E-ATX
ATX
Micro-ATX
Mini-ITX

No. of USB type A 3.0 ports: 2 x

No. of USB 3.0 ports: 1 x

Wireless charging: No

Dim: (W x H x D) 259.5 x 547 x 541 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3384552 HAVN HAVN HS 420 VGPU PC-Gehäuse, Midi-Tower, E-ATX, Tempered Glass, PCIe 5.0 Riser Midi tower Game console casing, Casi

Description

Showcase casing in white, vertical GPU kit with PCIe 5.0, with curved Tempered Glass, up to 11x 140 mm fan,

This text is machine translated.

Features

Optimized GPU cooling: Vertical GPU kit directs air directly to the graphics card for maximum performance
Maximum performance: PCIe 5.0 riser cable for the latest graphics cards
Flexible cooling options: Space for up to eleven 140 mm fans and two 420 mm radiators
GPU in the spotlight: Panorama glass panel sets your GPU in the perfect scene
Clean cable management: The SimpleCable cable management provides for a tidy and simple cable management

Description

Showcase casing in white, vertical GPU kit with PCIe 5.0, with curved Tempered Glass, up to 11x 140 mm fan,

This text is machine translated.

Features

Optimized GPU cooling: Vertical GPU kit directs air directly to the graphics card for maximum performance
Maximum performance: PCIe 5.0 riser cable for the latest graphics cards
Flexible cooling options: Space for up to eleven 140 mm fans and two 420 mm radiators
GPU in the spotlight: Panorama glass panel sets your GPU in the perfect scene
Clean cable management: The SimpleCable cable management provides for a tidy and simple cable management
