Name: Hazet 2191/12K HAZET Tube flaring tool set 2191/12K
Brand: Hazet
SKU: 801181
Availability: InStock

'Hazet flaring tool kit, Model 2191/12 K, with multiple attachments, distributor and pipe cutter, in a turquoise case.'

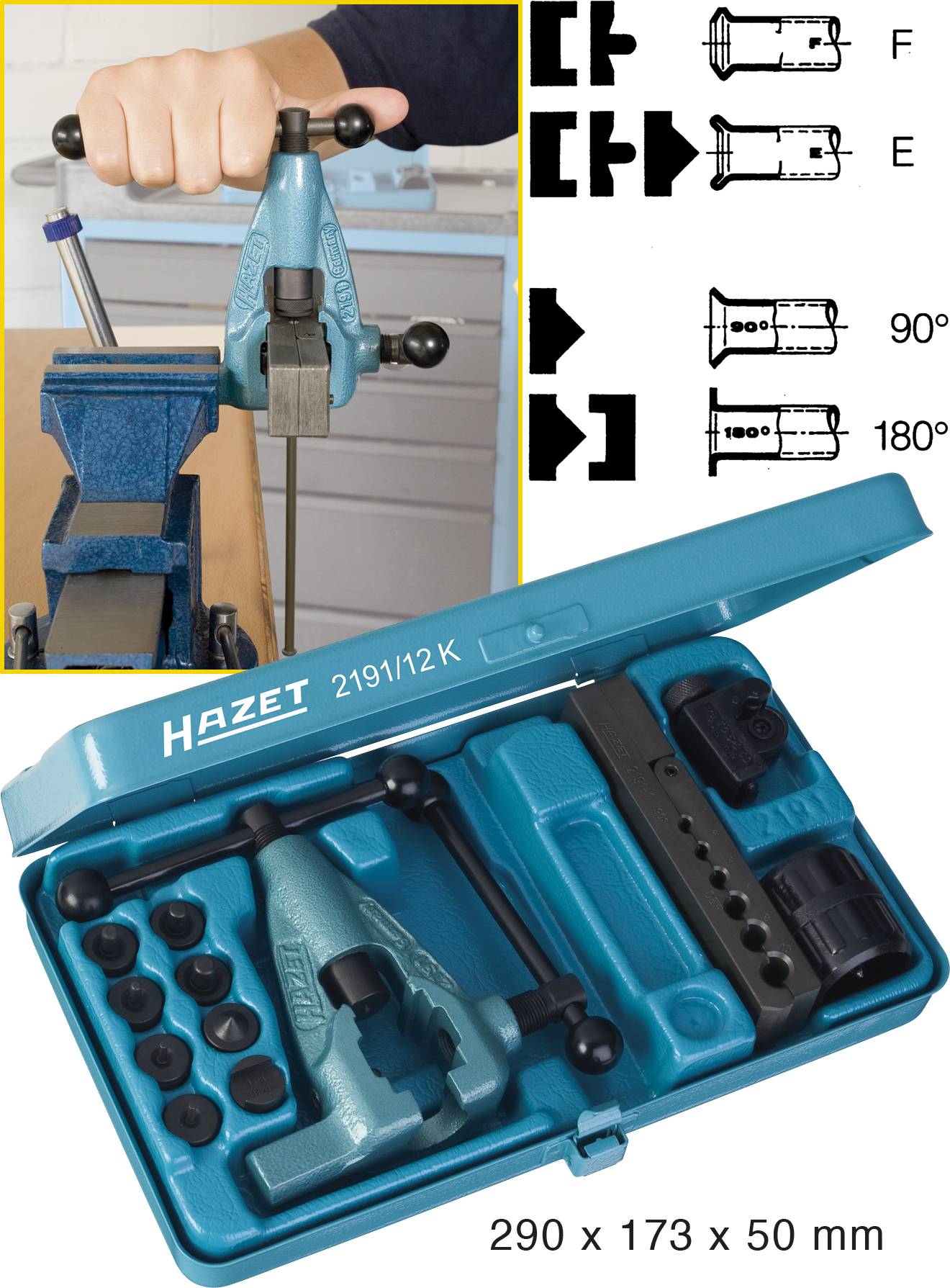

'Bending Tool in Use: One hand holding the tool that is bending a metal strip. Set includes additional parts; Dimensions: 290 x 173 x 50 mm.'

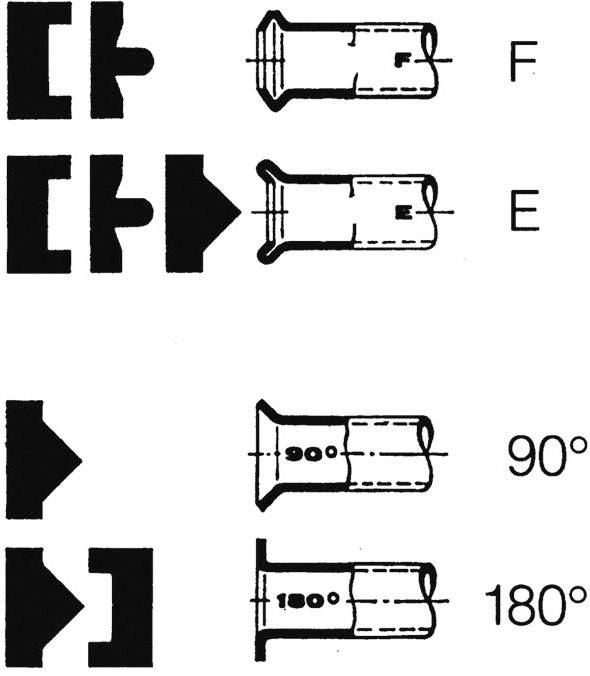

Different technical symbols for electrical plug connections with labels. Two main types: Type F and Type E, each shown at 90° and 180° angles.

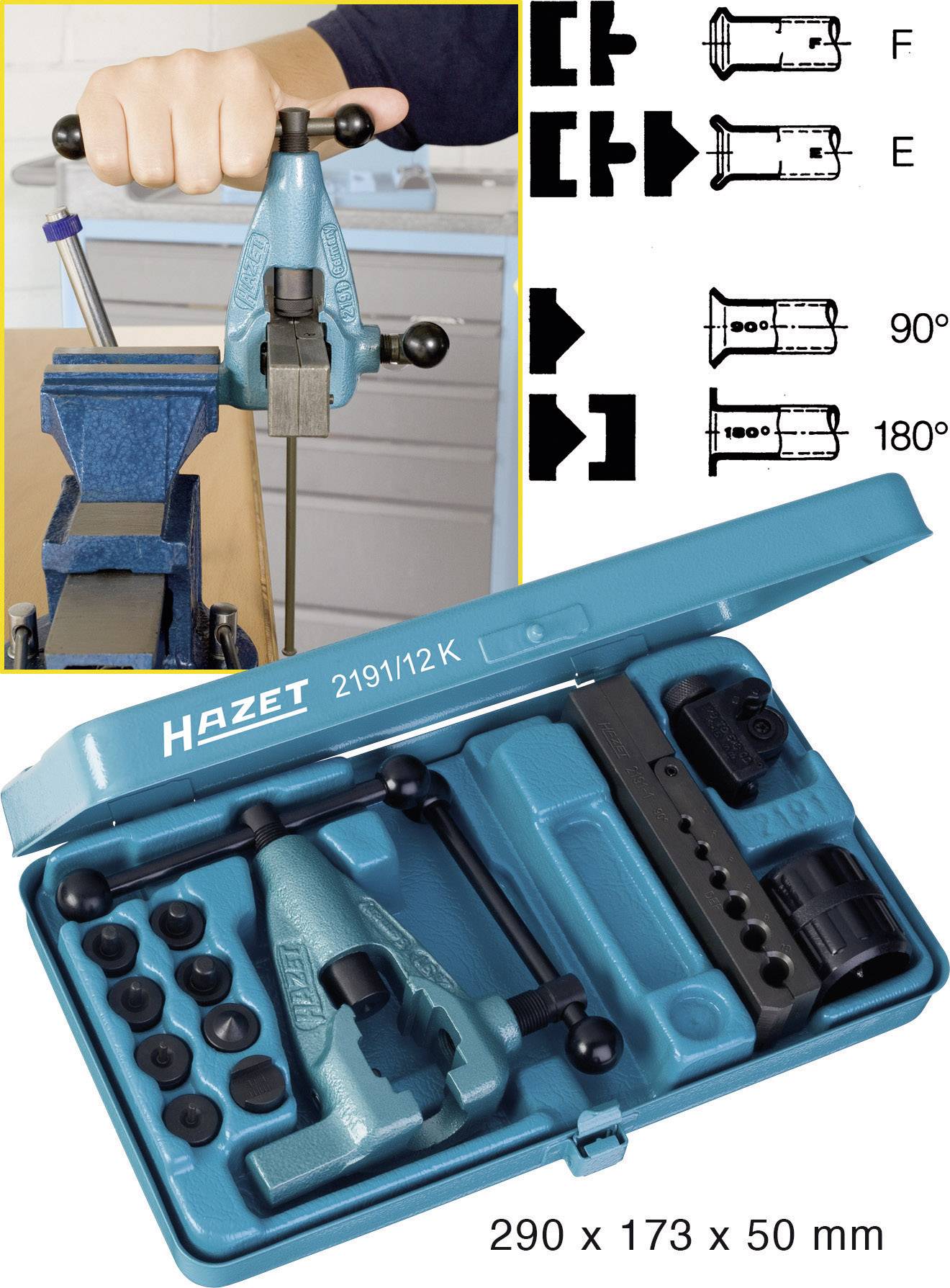

Hazet tool case with pipe bender set, Model 2191/12K, included. Instructions demonstrate pipe bending at 90° and 180° angles. Dimensions: 290 x 173 x 50 mm.

1/4

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

5 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 715.00 / piece)

€ 715.00

incl. VAT

Only 5 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Weight: 3.11 kg

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 801181 Hazet 2191/12K HAZET Tube flaring tool set 2191/12K

Description

For the production of open (F) or double (E) Bordeln according to DIN 74234, normal 90° and 180° Bordeln · For flare of drawn and rolled tubes · For metal tubes and pipes with 0.7 and 1.0 mm wall thickness · Wire diameter 4.75 - 10 mm · With interchangeable, schär exposed clamping jaws · Special casting · Surface: painted.

This text is machine translated.

Features

For metal tubes and pipes with a wall thickness of 07 and 10 mm - pipe Ø 475- 10 mm
Product advantage 2 / application: - For making open (F) or twin flares (E) according to DIN 74234, standard 90° and 180° flares - For flares on rolled and drawn pipes
With replaceable hinged gripping jaws Note: For plastic-coated brake lines use HAZET 2193/4 K!
Special cast steel
Made in Germany
Net weight: 311 kg
Number of tools: 12 pieces Tube cutter, small design 2181N-1 - Basic unit 2191 ∙ 2191-1 ∙ 2191-2 ∙ 2191-3 ∙ 2191-4 ∙ 2191-5 ∙ 2191-6 ∙ 2191-8 ∙ 2191-9 ∙ 2191-10 ∙ 2191-90

Scope of delivery

Default piece
Clamping jaw
Pipe cutter to rohrentgratung outer-Ø 4 - 32 mm
6 Pressure pieces
Basic device Ø 4.75 - 10 mm
90° pressure piece
Small Pipe cutter for pipes made of copper, brass, lightweight and PVC hard plastic, cutting area outside diameter 3 - 16 mm
Metallic Box.

Hints

For plastic-coated brake lines 2193/4 K (Order No. 80 45 69) use HAZET!
