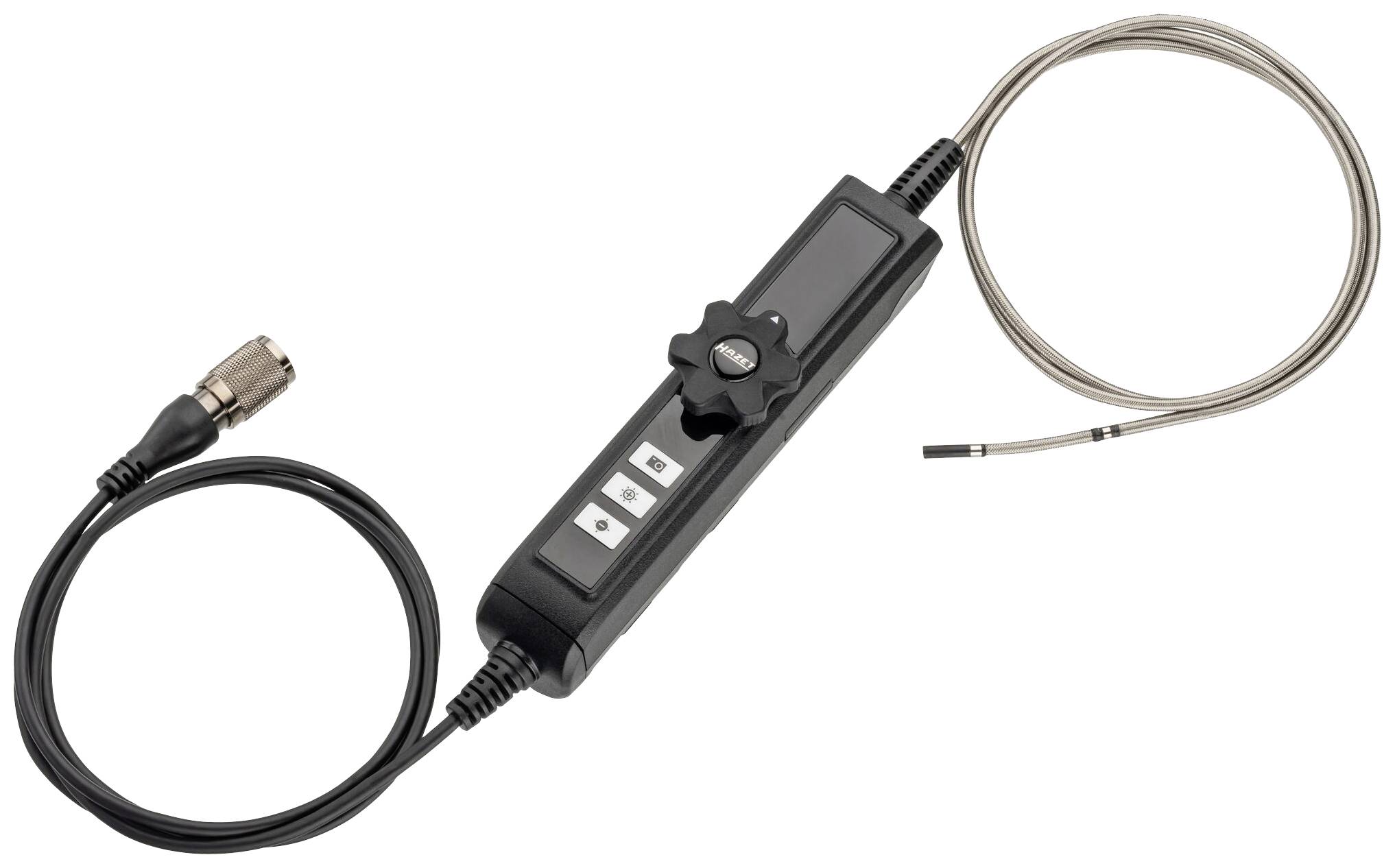

Hazet 4812-23AF Endoscope probe Probe diameter 3.9 mm 1 m Swivelling
EAN:
Part number:
Item no:
Highlights & Details
SWIVELING PROBE 180°-3.9MM
Technical specifications
- Height 51.1 mmOperating temperature: -10 °C to + 60 °C.Digital interface to base unit USB-C.Field of view (FOV) 90°Depth of field (DOV) 10 – 100 mm
- Probe length
1 m
- Product type
Endoscope probe
- Probe diameter
3.9 mm
- Camera resolution
1280 x 720 Pixel
- Min. focusing distance
10 mm
- Dim
(Ø x L) 3.9 mm x 2.589 m
- Weight
307 g
- Endoscope features
Swivelling
- Suitable for
Hazet
- Width
0.0354 m
- Length
2.589 m
- (Ø)
3.9 mm
IP67
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2866061 Hazet 4812-23AF Endoscope probe Probe diameter 3.9 mm 1 m Swivelling
Description
Diagnosis and documentation of cavities for damage assessment.
This text is machine translated.
This text is machine translated.
Features
- Improved accuracy of detail with HD cameraCompatible with 4812-23G and 4812-11G basic unitIncluding control unit for operation of articulation, video recording, brightness controlSwivel radius approx. 35 mm (-30% as compared to conventional versions)High mobility through double-sided articulationFull two-sided swivel up to a maximum of 180° allows a real rear view of valves in the cylinder head, for exampleFront cameraDimmable 2-way LED source of lightCompressieformaat H264Improved accuracy of detail with HD cameraDiagnosis of cavities for damage assessmentImage format: JPEGVideo format: MOV
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
