Hazet 8802KV-T25 8802KV-T25 Star socket Bits T 25

Isolated red screwdriver with T40 Torx tip, suitable for 1000V. Inscription: 'T40 Hazet', '8802KV-T40', 'IEC 60900', 'Made in Germany'.

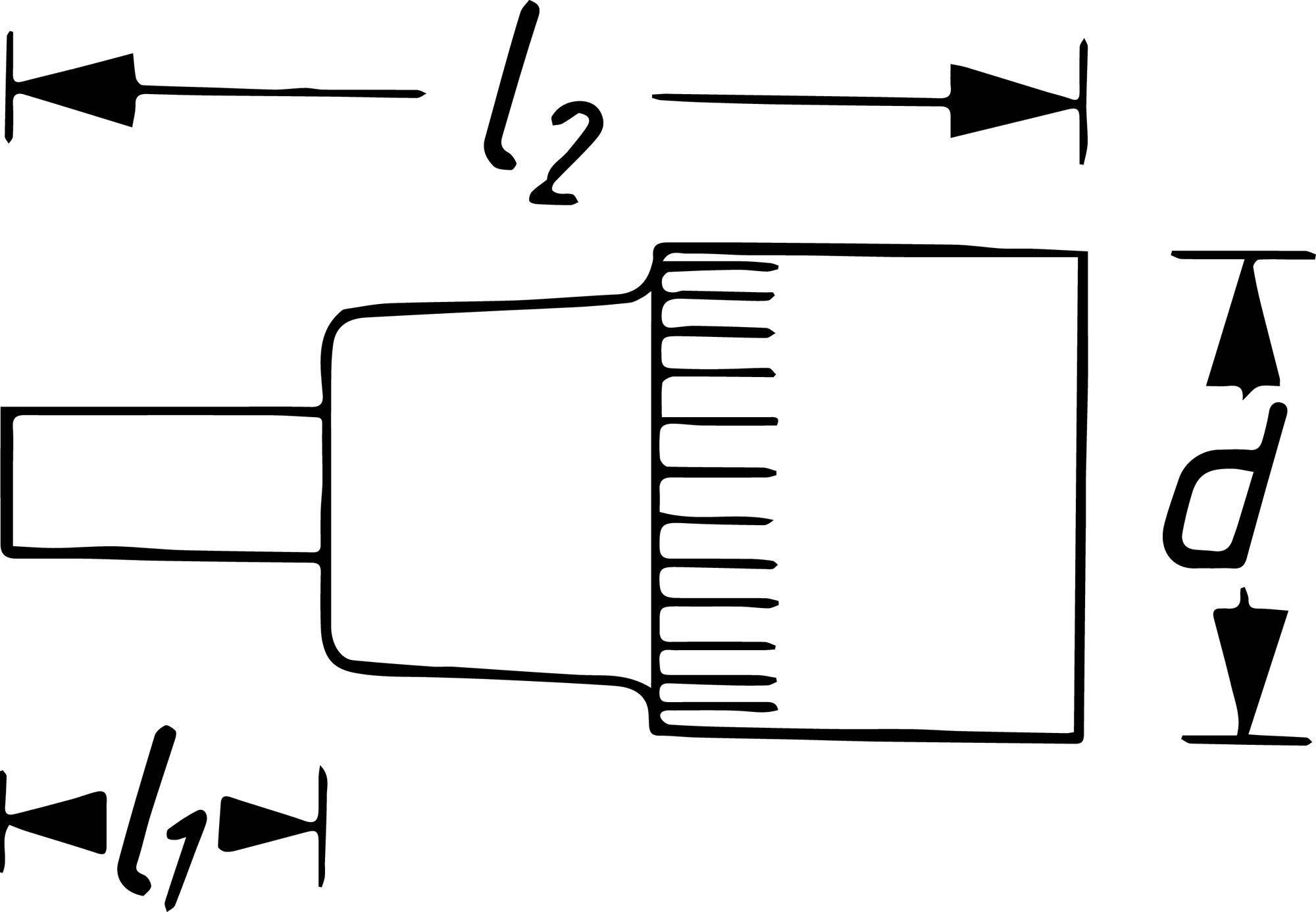

Technical drawing of a cylindrical object with length measurements 'l1' and 'l2', and diameter 'd'.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Bits

Size

T 25

Downforce

Star socket

Length

59.5 mm

Max. length

59.5 mm

Material properties

insulated

DIN standard

DIN EN 60900

Screwdriver features

insulated

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2570370 Hazet 8802KV-T25 8802KV-T25 Star socket Bits T 25

Description

Short design Surface: Insulated IEC 60900:2018 Made in Germany Drive: Square hollow 10 mm (3/8 inch) Drive: Inside TORX® Profile Key width: ∙ T25 Dimensions / length: 59.5 mm Length l1: 12.5 mm Protective insulation up to 1000V for manual operation

This text is machine translated.
