Name: HDC insert, Male, 400 V, 10 A, No. of poles: 7, Crimp connection, Size: 1
Brand: Weidmüller
SKU: 195484

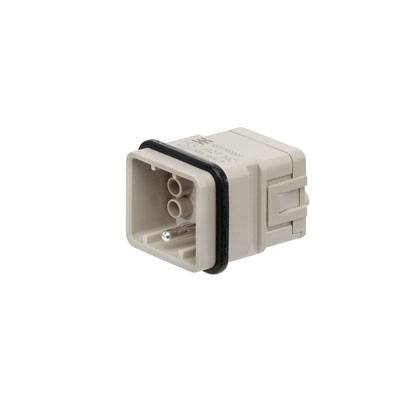

A rectangular, beige electrical connector with three terminals and a black sealing ring, typically used for cable connections.

Product type

Pin inset

Connection

Crimp

Series

RockStar® HDC HQ

Features

copper-plated

Total no. of pins

7 + PE

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

HDC insert, Male, 400 V, 10 A, No. of poles: 7, Crimp connection, Size: 1

HDC HQ 7MC

Technical specifications

Net weight: 15.4 g
Temperature limit: -40 °C ... 125 °C
Insulation resistance: 1010 Ω
Pollution degree: 3
Width: 21 mm
Height: 39.5 mm
Depth: 21 mm
Length Socket: 21 mm
Size: 1
Series: HQ
Rated voltage (DIN EN 61984): 400 V
Rated voltage according to UL/CSA: 600 V AC/DC
Rated surge voltage (DIN EN 61984): 6 kV
Rated current (DIN EN 61984): 10 A
flammability class according to UL 94: V-0
Forward resistance: ≤ 4mΩ
Insulation material: PC glass fiber reinforced (UL listed and railway qualified)
Insulation material group: IIIA
Plug cycles AG: ≥ 500
Plug cycles Au: ≥ 500
Connection type PE: Screw connection
conductor cross-section AWG (PE), max.: AWG 14
Wire cross-section AWG (PE), min.: AWG 26
Wire stripping length Rated connection: 8 mm
PE connection: 5 mm
Tightening torque max. PE connection: 0.55 Nm
Tightening torque min. PE connection: 0.5 Nm
Mounting screw: M 3
Slotted blade size (PE connection): SD 0.6 x 3.5
Height of plug: 39.5 mm

Product type: Pin inset

Series: RockStar® HDC HQ

Features: copper-plated

Connection: Crimp

Total no. of pins: 7 + PE

Core cross section (max.): 2.5 mm²

Number of pins: 7

Core cross section (min.): 0.14 mm²

Content: 1 pc(s)

Leading contact (PE): Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 195484 HDC insert, Male, 400 V, 10 A, No. of poles: 7, Crimp connection, Size: 1

User & Safety Instructions

User & Safety Instructions 195484 HDC insert, Male, 400 V, 10 A, No. of poles: 7, Crimp connection, Size: 1

Description

The HQ series - big features in a compact design The electrical values speak for themselves. The standard HE crimp contacts can also be used here.
The wire connection level is designed as a crimp contact The established crimp connection has been used as a standard for decades.
Crimp contacts are not delivered with the inserts.

Pole count: 7 (+PE)
Rated current: 10 A
Rated voltage: 400 V
Nominal voltage acc. to UL/CSA: 600 V AC/DC
Crimp connection
