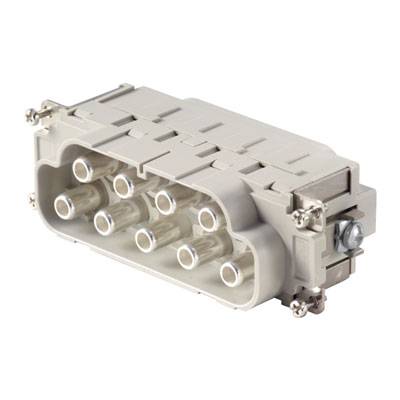

HDC insert, Male, 690 V, 110 A, No. of poles: 8, Axial screw connection, Size: 8
EAN:
Part number:
Item no:
Product type
Pin inset
Connection
Axial screw terminal
Series
RockStar® HDC
Features
copper-plated
Total no. of pins
8 + PE
Datasheet (PDF)
Highlights & Details
HDC insert, Male, 690 V, 110 A, No. of poles: 8, Axial screw connection, Size: 8
- HDC S 8/0 MAS
Technical specifications
- Net weight: 300 g
- Temperature limit: -40 °C ... 125 °C
- Insulation resistance: 1010 Ω
- Pollution degree: 3
- Width: 34 mm
- Height: 48.5 mm
- Depth: 111 mm
- Length Socket: 111 mm
- Size: 8
- Series: MixMate
- Rated voltage (DIN EN 61984): 690 V
- Rated voltage according to UL/CSA: 600 V AC/DC
- Rated surge voltage (DIN EN 61984): 8 kV
- Rated current (DIN EN 61984): 110 A
- flammability class according to UL 94: V-0
- Forward resistance: ≤ 1 mΩ
- Insulation material: PC glass-fiber reinforced (UL-listed and railway-qualified)
- Insulation material group: IIIA
- plug-in cycles AG: ≥ 500
- Connection type PE: Screw connection, other
- conductor cross-section AWG (PE), max.: AWG 4
- conductor cross-section AWG (PE), min.: AWG 8
- stripping length Rated connection: 12 mm
- long PE connection: 12 mm
- Tightening torque: PE connection. 7 Nm
- Tightening torque min. PE connection: 6 Nm
- Surface: Silver passivated
- Material: Copper alloy
- Height Plug: 48.5 mm
- Number of power contacts: 8
- Product type
Pin inset
- Series
RockStar® HDC
- Features
copper-plated
- Connection
Axial screw terminal
- Total no. of pins
8 + PE
- Core cross section (max.)
25 mm²
- Number of pins
8
- Core cross section (min.)
10 mm²
- Core cross section power contact (max.)
25 mm²
- Core cross section power contact (min.)
10 mm²
- Content
1 pc(s)
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195802 HDC insert, Male, 690 V, 110 A, No. of poles: 8, Axial screw connection, Size: 8
User & Safety Instructions
User & Safety Instructions 195802 HDC insert, Male, 690 V, 110 A, No. of poles: 8, Axial screw connection, Size: 8
Description
The MixMate series of connectors can simultaneously transmit high rated currents and voltages as well as signals. An axial screw can be used to secure the wire.
Axial screw connection TOP connection
Axial screw connection TOP connection
