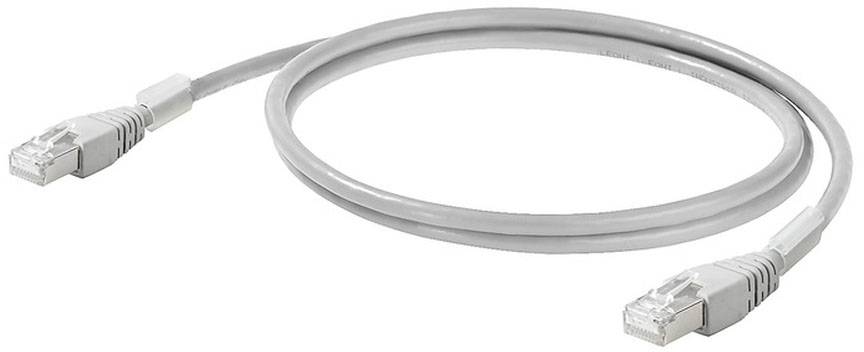

HDC RJ4501 MMSCAT6-0400 Weidmüller Content: 1 pc(s) Lead
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Lead
Number of pins
8
Type
HDC RJ4501 MMSCAT6-0400
Manufacturer part #
2661950400
Technical specifications
- Length: 4 m
- Insulation diameter: 1.04 mm
- Operating voltage: 48 V AC / DC
- Nominal voltage: 48 V
- Category: Cat. 6A
- characteristic impedance: 100 ± 15 Ω at 1-100 MHz
- Deviation: 25 ns/100m
- Capacity at 1 kHz: 46 nF/km
- Speed: 10 GBit/s
- Copper diameter: 0.43 mm
- Strands: 7
- Cross-section: 4*2*AWG 27/7 - 4*2*0.1 mm²
- Isolation: PE
- Number of wires: 8
- color sequence Cores - wire pairs: White - blue, white - orange, white - green, white - brown
- Shielding: S/FTP
- Material sheath: LSZH
- sheath diameter, min.: 5.5 mm
- sheath diameter, max.: 5.9 mm
- sheath color: Gray
- Packaging type
Single
- Type
HDC RJ4501 MMSCAT6-0400
- Product type
Lead
- Manufacturer part #
2661950400
- Number of pins
8
- Connection
RJ45
- Total no. of pins
8
- Content
1 pc(s)
- Material
Plastic
- Max. temperature
+60 °C
- UKCA
yes
