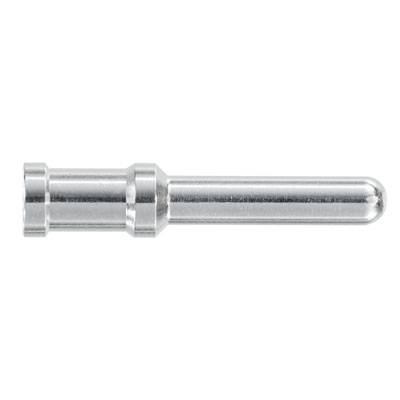

Heavy Duty Connectors, Contact, MixMate, Male, Conductor cross-section, max.: 2,5, turned, Copper alloy
EAN:
Part number:
Item no:
Product type
Crimp contact
Type
HDC C HX SM2.5AG
Manufacturer part #
1002920000
Connection
Crimp
Content
25 pc(s)
Datasheet (PDF)
Highlights & Details
Heavy Duty Connectors, Contact, MixMate, Male, Conductor cross-section, max.: 2,5, turned, Copper alloy
Our service for you
Technical specifications
- Wire stripping length Rated connection: 8 mm
- Forward resistance: ≤ 1 mΩ
- Diameter: 6 mm
- Manufacturing process: Turned
- Contact diameter Pin Ø: 4 mm
- Wire connection cross-section: 2.5 mm²
- Surface: Silver
- Plug-in cycles: ≥ 501
- Type
HDC C HX SM2.5AG
- Product type
Crimp contact
- Manufacturer part #
1002920000
- Connection
Crimp
- Content
25 pc(s)
- Material
Copper alloy
- Height
60 mm
- Length
5 mm
- Width
60 mm
- Industrial packaging
Yes
- Weight
3.2 g
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 279986 Heavy Duty Connectors, Contact, MixMate, Male, Conductor cross-section, max.: 2,5, turned, Copper alloy
User & Safety Instructions
User & Safety Instructions 279986 Heavy Duty Connectors, Contact, MixMate, Male, Conductor cross-section, max.: 2,5, turned, Copper alloy
Description
Crimps provide a electrical and mechanical connection between wire and contact that is both secure and reliable. The optimal crimp connection is gas-tight and corrosion-resistant.
