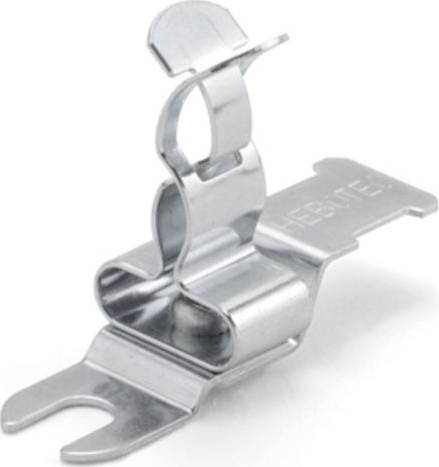

Hebotec SKDLZ 7-18 Screen holder Slotted hole Terminal Ø (max.) 18 mm Spring steel 10 pc(s)
EAN:
Part number:
Item no:
Product type
Screen holder
Features
Slotted hole
Material
Spring steel
Clamp Ø
7 mm
Terminal Ø (max.)
18 mm
Datasheet (PDF)
Highlights & Details
Hebotec screen clamp SKDLZ 7-18 - 10 pcs
- Direct mounting with M4 screw
- Easy to attach or release through open slot
- Mounting on C-rail with mounting adapter as accessories
- Very compact design
- Small variety of types by shield clamp Multi
- Strain relief possible with cable tie at the cable jacket
- Other sizes available on request
Technical specifications
- Screen clamp for direct mounting with slotted hole and strain relief, screen diameter: 7-18 mm
- Material: Galvanized spring steel
- Product type
Screen holder
- Features
Slotted hole
- Material
Spring steel
- Clamp Ø
7 mm
- Terminal Ø (max.)
18 mm
- Mounting hole
M4
- Content
10 pc(s)
- Manufacturer part #
1022-532C
- Type
SKDLZ 7-18
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 2256920 Hebotec SKDLZ 7-18 Screen holder Slotted hole Terminal Ø (max.) 18 mm Spring steel 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2256920 Hebotec SKDLZ 7-18 Screen holder Slotted hole Terminal Ø (max.) 18 mm Spring steel 10 pc(s)
Description

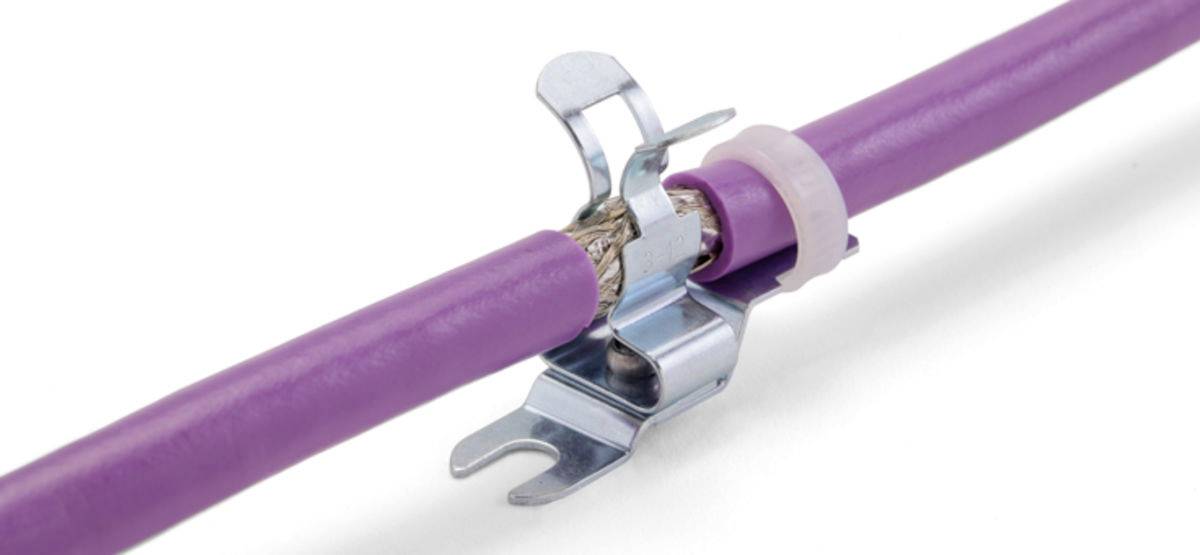

The screen clamp with open slot can be screwed directly, e.g. to the mounting plate.
The SKDL is pushed under the screw with the slotted hole and then tightened.
For secure contact, the cable shield only needs to be pressed into the shield clamp.
