Hebotec SKHZZ 3,6 Screen holder for DIN rail mounting, with snap lid, with strain relief, spring-loaded Terminal Ø (max.
EAN:
Part number:
Item no:
Product type
Screen holder
Features
for DIN rail mounting
with snap lid
with strain relief
spring-loaded
Material
Spring steel
Clamp Ø
3 mm
Terminal Ø (max.)
6 mm
Datasheet (PDF)
Highlights & Details
Hebotec screen clamp SKHZZ 3,6 - 10 pcs
- Easy tool-free mounting
- Constant good contact to the cable shield due to spring effect
- Very good derivation of high-frequency interference currents
- Strain relief on both sides with cable ties on the cable jacket
Technical specifications
- Screen clamp on snap-on base with strain relief on both sides, screen diameter 3-6 mm
- Material: Galvanized spring steel
- Product type
Screen holder
- Features
for DIN rail mounting
with snap lid
with strain relief
spring-loaded
- Material
Spring steel
- Clamp Ø
3 mm
- Terminal Ø (max.)
6 mm
- Content
10 pc(s)
- Manufacturer part #
1032-002C
- Type
SKHZZ 3,6
- Material properties
zinc plated
Documents & Downloads
Datasheet
Datasheet 2256888 Hebotec SKHZZ 3,6 Screen holder for DIN rail mounting, with snap lid, with strain relief, spring-loaded Terminal Ø (max.
User & Safety Instructions
User & Safety Instructions 2256888 Hebotec SKHZZ 3,6 Screen holder for DIN rail mounting, with snap lid, with strain relief, spring-loaded Terminal Ø (max.
Description

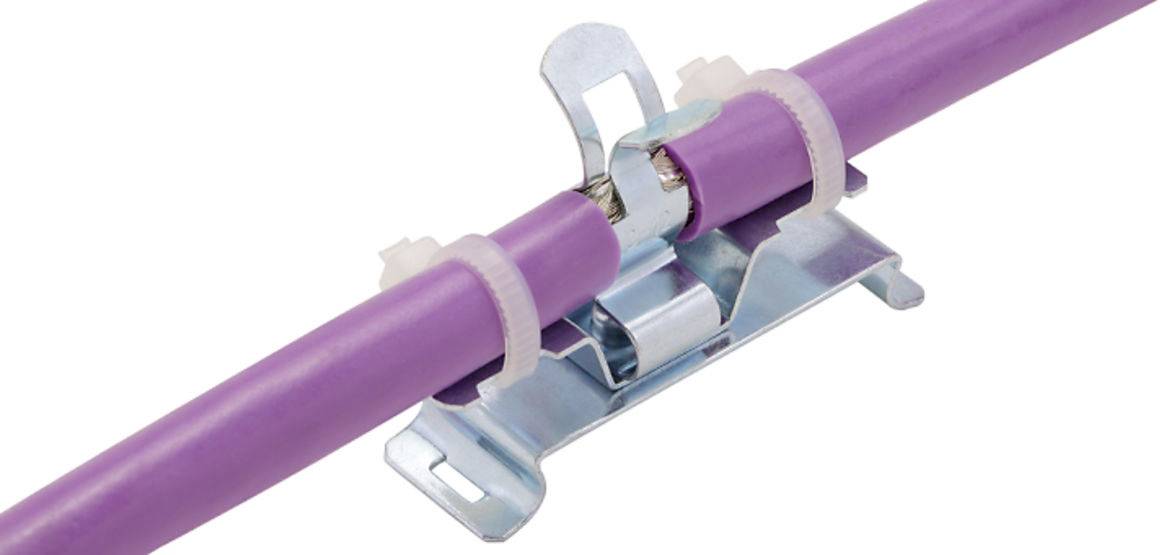

The screen clip on the snap-on base can be snapped onto a 35 mm DIN rail without the need for tools.
For secure contact, the cable shield only needs to be pressed into the shield clamp.
The double strain relief clamp offers the possibility of a double-sided and thus especially secure strain relief on the cable jacket with cable ties.
