Hebotec TFC4 10 Temperature sensor clip
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
Highlights & Details
Temperature probe clip for pipe mounting 10 mm
- Temperature sensor clip for pipe mounting of contact sensors/pipe cable sensors with 4 mm diameter, pipe diameter 10mm
Technical specifications
- Diameter of contact sensor / pipe cable sensor Diameter 4 mm
- Length 11 mm.
- Width: 10 mm
- Height: 13.2 mm
- Pipe diameter 10 mm
- Span 10 mm
- Weight: 1 g
- Component: Temperature sensor clip
- Material: Stainless steel
- Mounting type: Pipe mounting
- Product type
Temperature sensor clip
- Material
Stainless steel
- Dim
(L x W x H) 11 x 10 x 13.2 mm
- Length
11 mm
- Height
13.2 mm
- Width
10 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3191109 Hebotec TFC4 10 Temperature sensor clip
User & Safety Instructions
User & Safety Instructions 3191109 Hebotec TFC4 10 Temperature sensor clip
Description

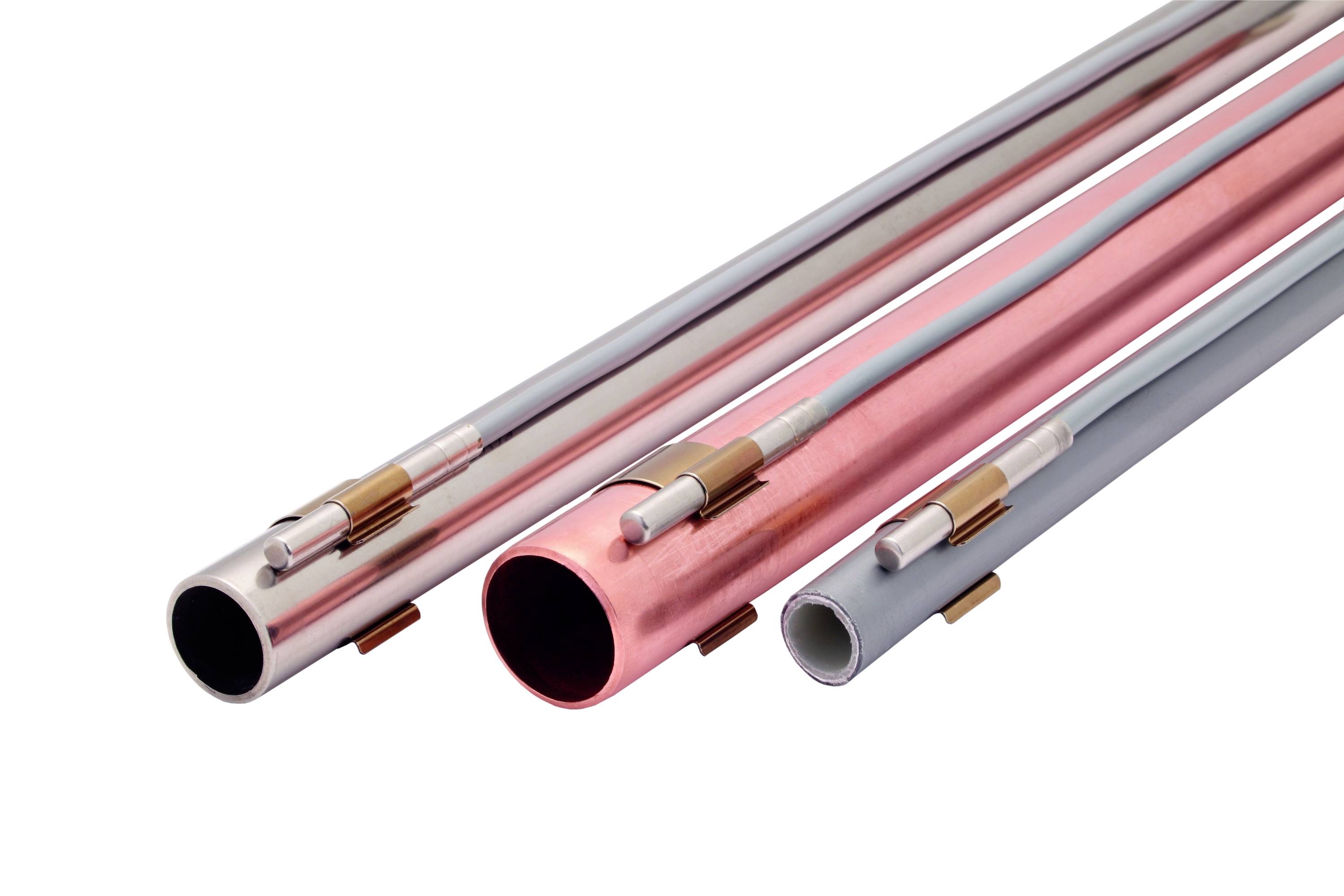

The temperature sensor clip (TFC) is designed for quick and tool-free mounting. It was developed for all contact sensors and pipe cable sensors with a diameter of 4 or 6 mm. In the media supply, the TFC is installed as a component for indirect temperature measurement on supply lines. The intelligent design of the TFC guarantees even in the event of high temperature fluctuations
A constant contact with the tube ensures high measurement accuracy. This significantly reduces installation and service costs.
For all PT100, PT1000 and NTC sensors with a diameter of 4 or 6 mm.
BENEFITS:
• Save time and money with easy, quick and tool-free installation
• High contact force with great flexibility, thus short response time and precise measurement results
• Stainless steel has a high resistance to external influences and to aging.
TECHNICAL DATA
• Material: Stainless steel 1.4310
This text is machine translated.
A constant contact with the tube ensures high measurement accuracy. This significantly reduces installation and service costs.
For all PT100, PT1000 and NTC sensors with a diameter of 4 or 6 mm.
BENEFITS:
• Save time and money with easy, quick and tool-free installation
• High contact force with great flexibility, thus short response time and precise measurement results
• Stainless steel has a high resistance to external influences and to aging.
TECHNICAL DATA
• Material: Stainless steel 1.4310
This text is machine translated.
