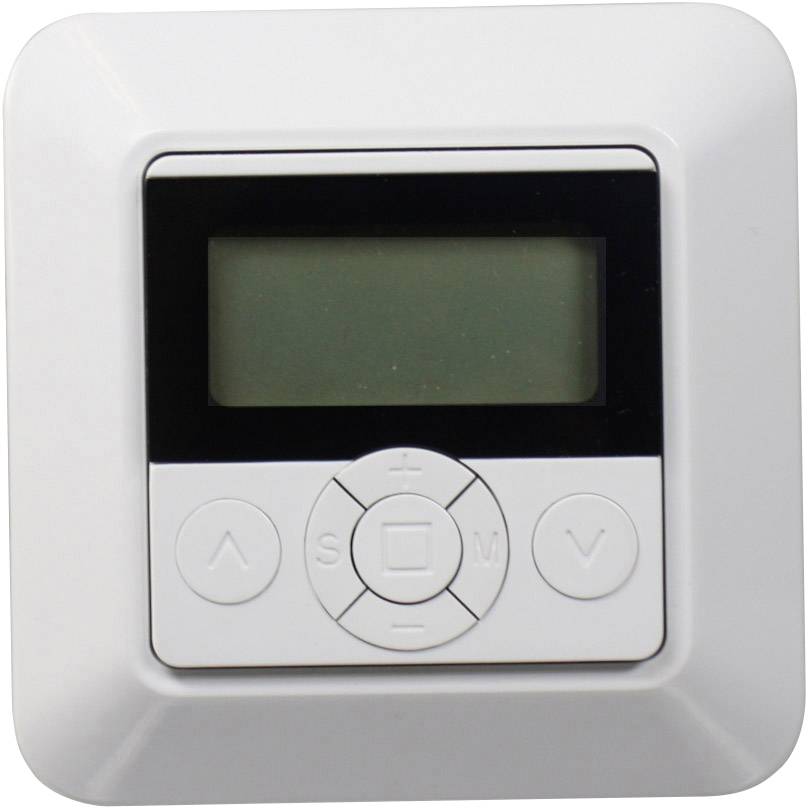

Heicko HR120034G2 Wall-mount switch
EAN:
Part number:
Item no:
Highlights & Details
Key switch with timer switch, flush-mounted, 230 V/AC
- "Up and down" flush-mounted switch
- For tubular motors with display and timer function
- Suitable for all common flush-mounted sockets
Technical specifications
- Color: White RAL 9003

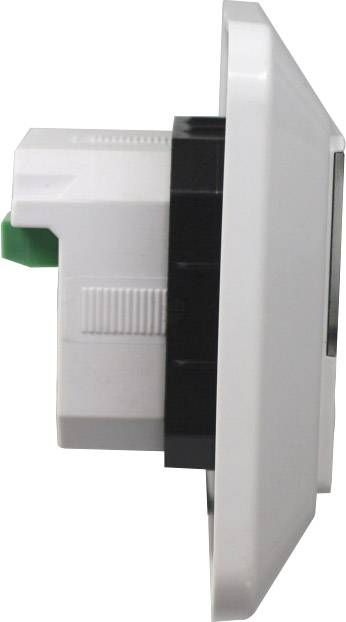

- Installation depth: approx. 35 mm
- Product type
Wall-mount switch
- Factory colour
White
- Operating voltage
230 V / AC
- Mounting type
Flush mount
- Hub
Not required
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2205470 Heicko HR120034G2 Wall-mount switch
Description
Heicko timer switch for controlling all common tubular motors (with two control cables UP/DOWN). Each time can be assigned to individual days or different weekday divisions on 8 program slots. You will find a detailed description in the supplied operating instructions.
The clock and display are supplied via the mains connection. If the current fails, the power is supplied via a button cell (power reserve up to approx. 4 weeks). The plastic outer frame can be easily removed to integrate the watch into another switch range with an appropriate intermediate frame.
This text is machine translated.
The clock and display are supplied via the mains connection. If the current fails, the power is supplied via a button cell (power reserve up to approx. 4 weeks). The plastic outer frame can be easily removed to integrate the watch into another switch range with an appropriate intermediate frame.
This text is machine translated.
Hints
There must be a direct current connection to the tubular motor.
