Heidemann HE238275 Wireless door bell Complete set
EAN:
Part number:
Item no:
Highlights & Details
Radio controlled gong-SET HX FLASH LIGHT WHITE + HX wireless distance expansion
- Radio range up to 200 m (radio gong HX)
- With flash light function
- Radio range up to 100 m (distance extension HX)
- Several distance expansions can be combined
Technical specifications
- Sender IP55
- Transmitter: 1 x 3 V battery CR2032, receiver 2 x 1.5 V C batteries.
- Product type
Wireless door bell
- Component
Complete set
200 m
- Tunes
8
- Volume
90 dBa
- Factory colour
White
- Frequency
433 MHz
- Coding option
Autodidactic
- Type
Doorbell button
- Transmitter dimensions
34 x 96 x 20 mm
- Receiver size
140 x 90 x 40 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1665160 Heidemann HE238275 Wireless door bell Complete set
User & Safety Instructions 1665160 Heidemann HE238275 Wireless door bell Complete set
User & Safety Instructions 1665160 Heidemann HE238275 Wireless door bell Complete set
Description

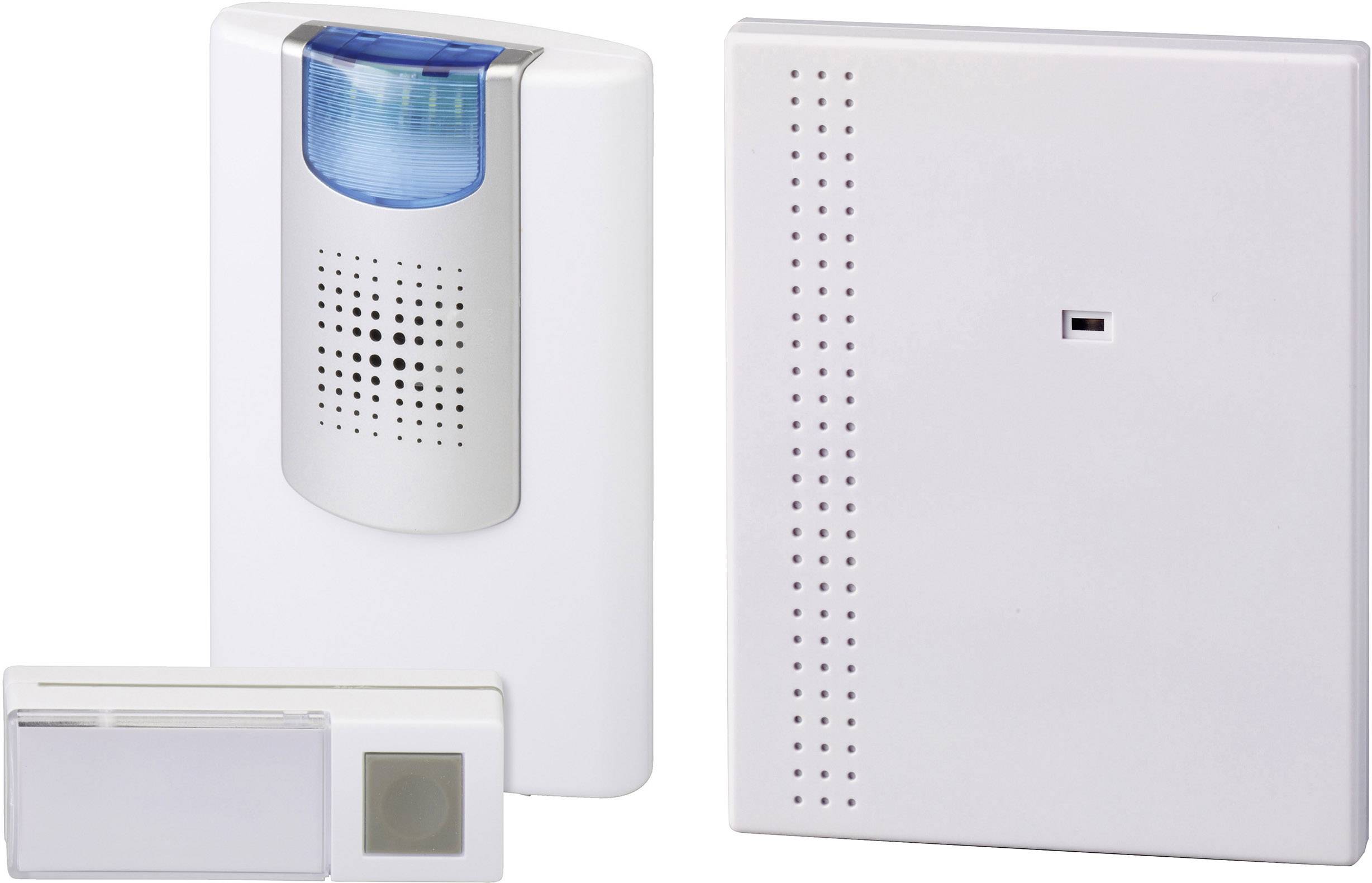

Radio gong HX:
Remote gong Set with acoustic and visual call-signalling (Flashlight). The transmitter has a range of up to 200 meters and can be screwed down outdoors. Suits for connection at available door-bell. 8 melodies and 256 self-learning frequencies.
Distance extension HX:
By combination of several HX wireless distance expansions, you will obtained a huge random range of HX wireless gong sets / HX radio receiver.
This text is machine translated.
Remote gong Set with acoustic and visual call-signalling (Flashlight). The transmitter has a range of up to 200 meters and can be screwed down outdoors. Suits for connection at available door-bell. 8 melodies and 256 self-learning frequencies.
Distance extension HX:
By combination of several HX wireless distance expansions, you will obtained a huge random range of HX wireless gong sets / HX radio receiver.
This text is machine translated.
Scope of delivery
- Transmitter incl. 1 x button cell CR2032
- Receiver
- Distance extension HX
- User manual.
Hints
Required 2 x 1.5 V Baby Batteries for the receiving operation.
The quoted range refers to open space conditions, means no solid objects between transmitter and receiver. Any wall, ceiling or other structure between transmitter and receiver results in a decrease in range.
