Heitronic DL5501 23232 Recess bracket IP20 Chrome (glossy)

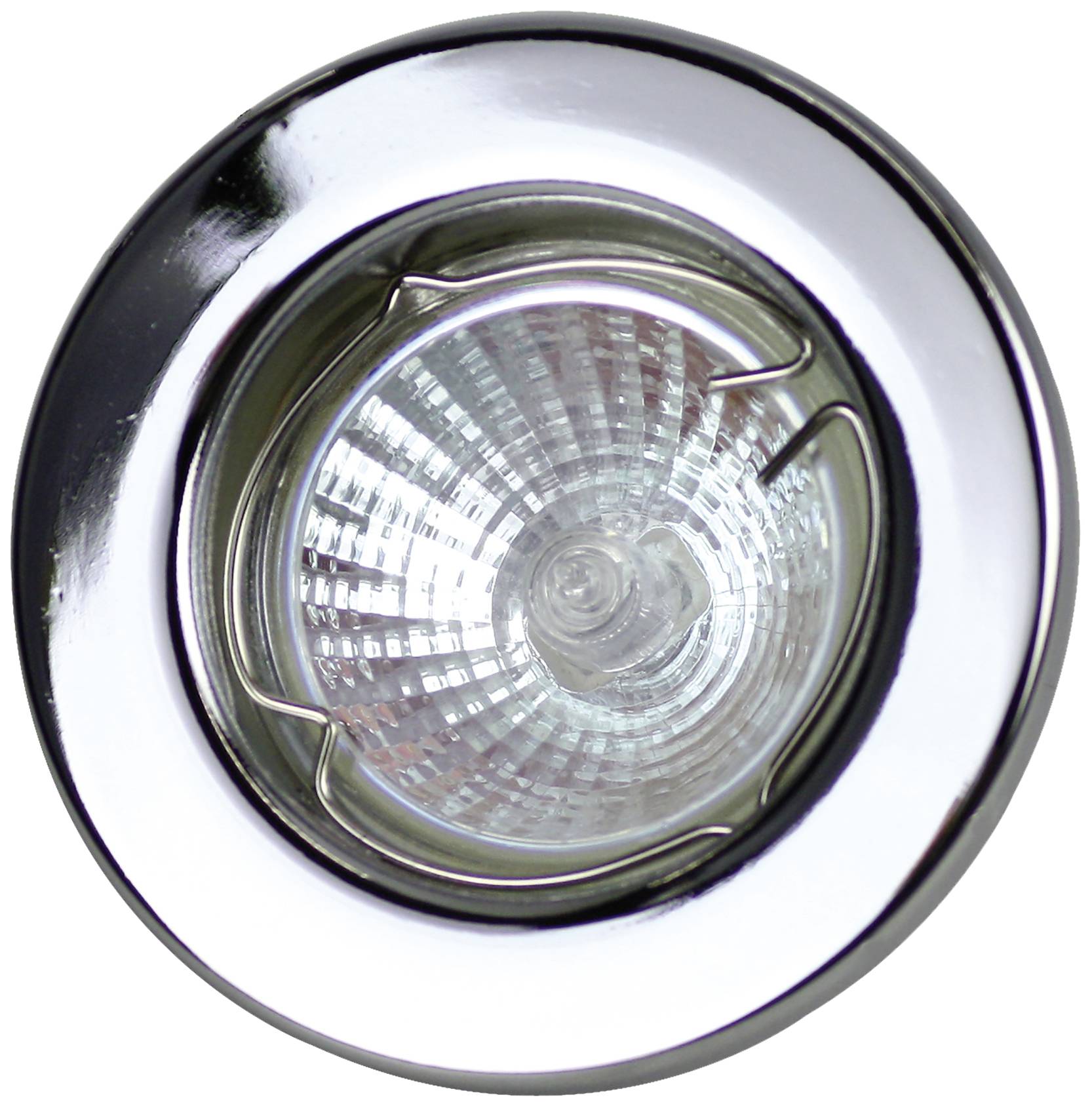

Round, silver recessed light with clear, ribbed glass, shows a modern ceiling light from below.

Round, silver recessed light with clear, ribbed glass, shows a modern ceiling light from below.

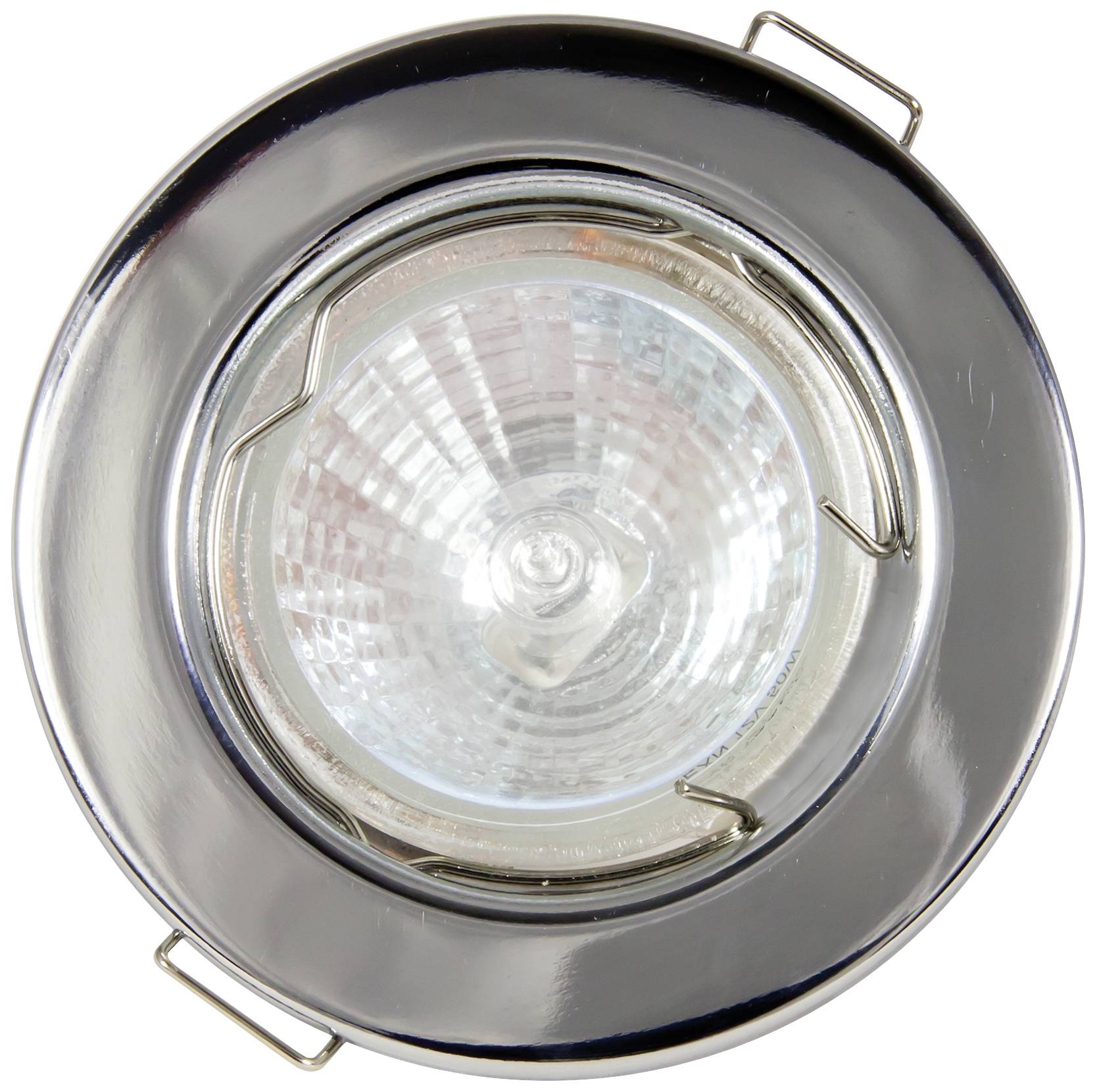

A silver, round ceiling light with a clear glass cover, viewed from above. Designed for installation as a spotlight.

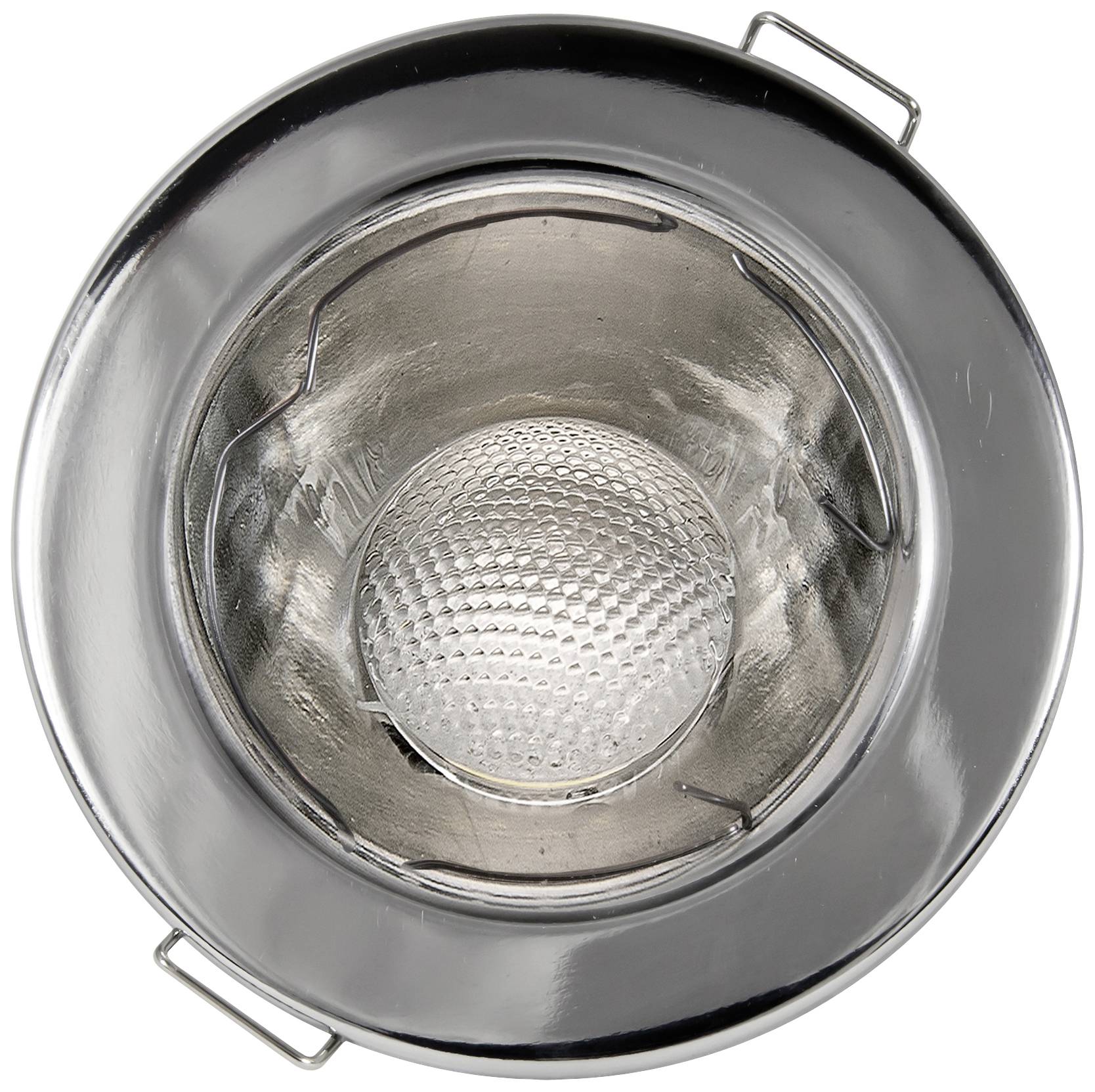

A round, silver recessed light with a structured glass diffuser in the centre. It is made of metal and has two mounting brackets.

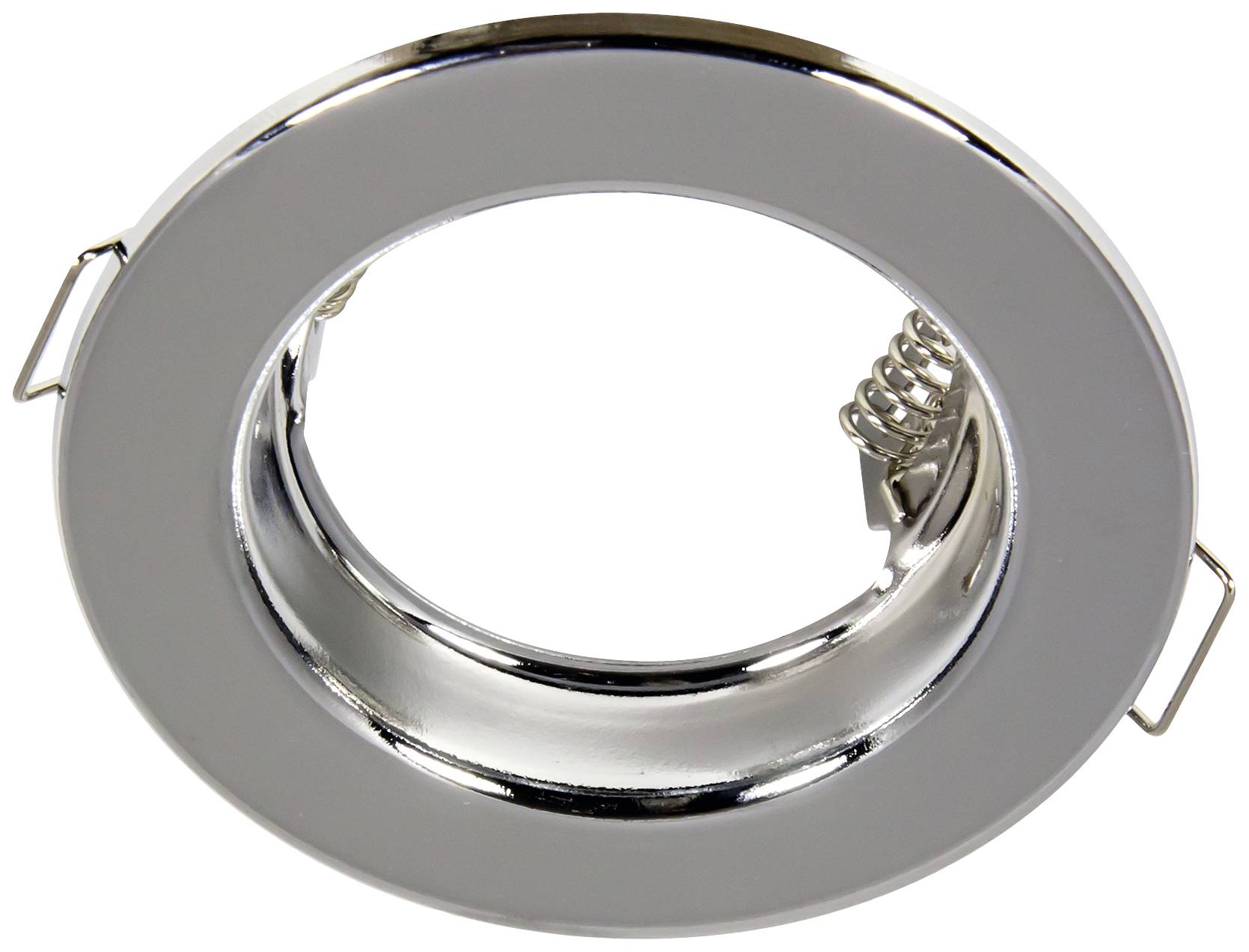

A round, silver light frame with mountings and springs for installing ceiling spotlights.

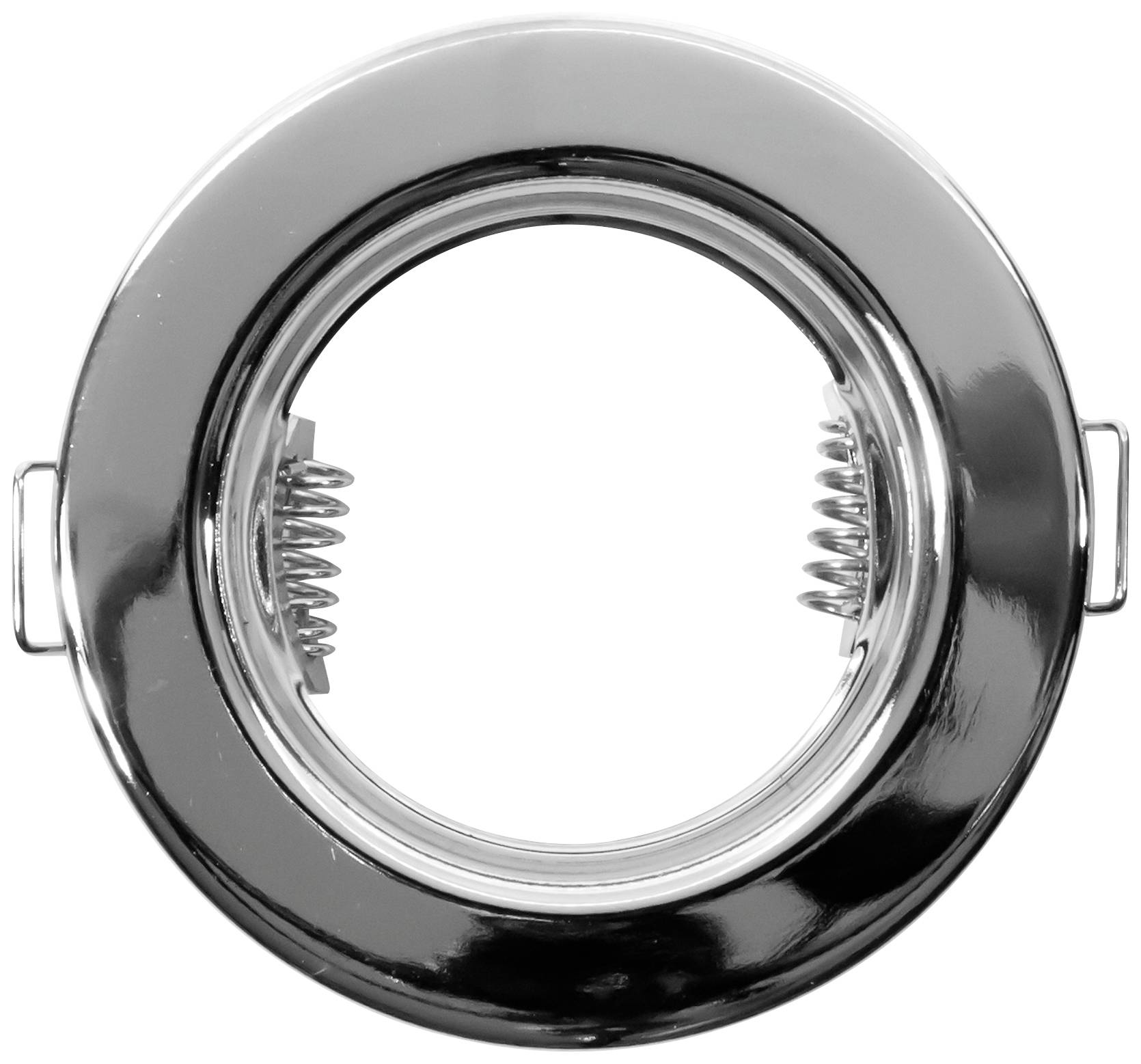

Round, silver metal component with internal spring mechanism, likely a mounting frame for lighting or technical equipment.

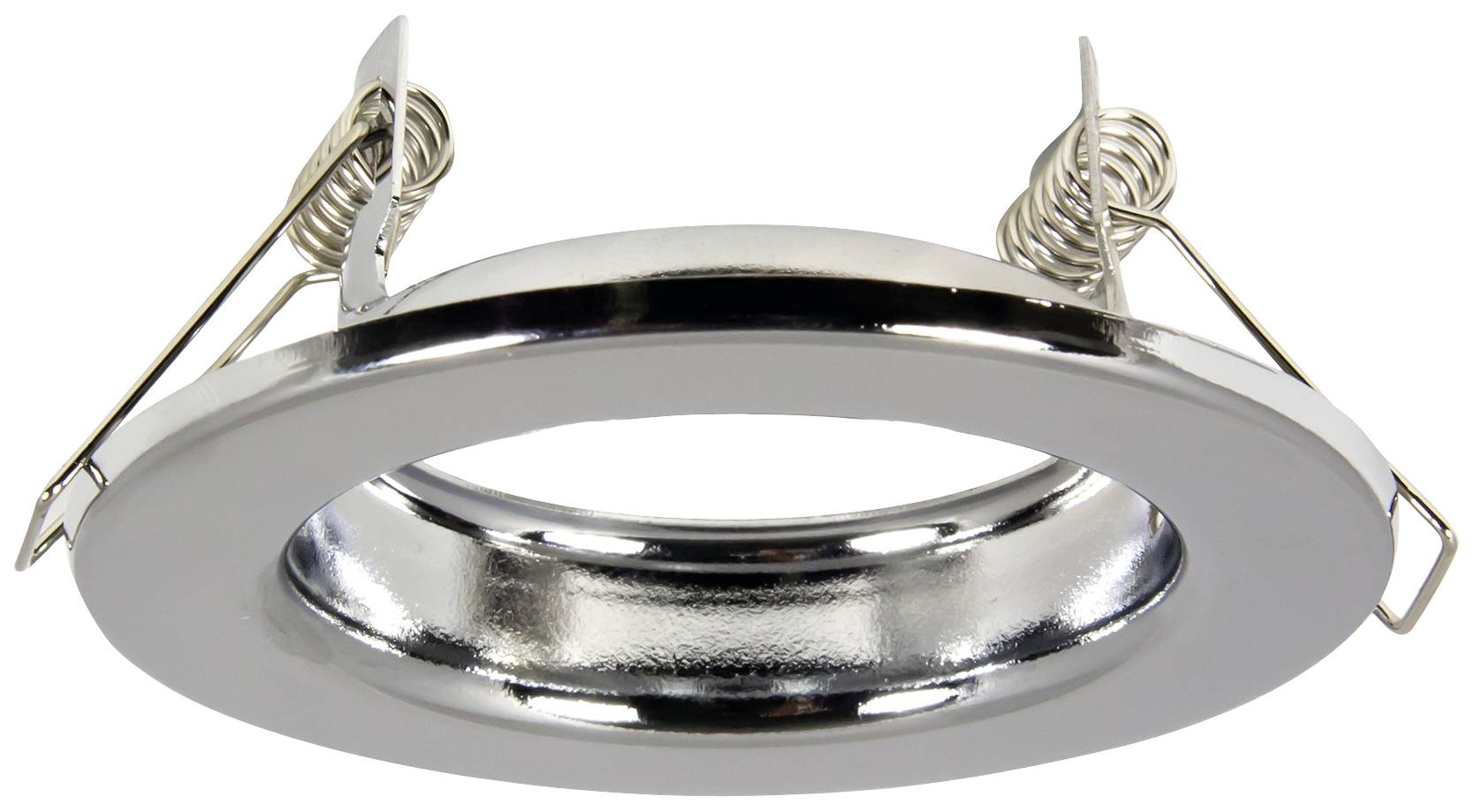

A silver, circular recessed housing with spring clips for LED ceiling spotlights. Secured with wood against spring tension.

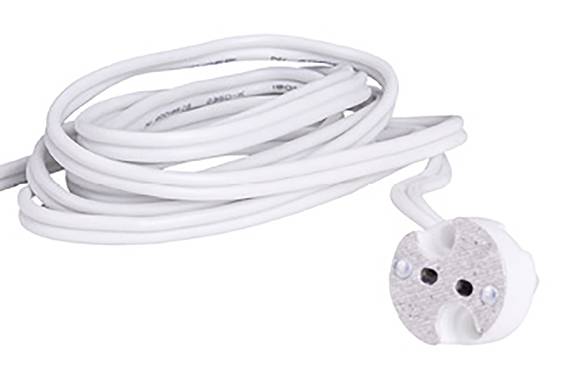

White electrical lamp socket with attached cable, suitable for incandescent bulbs.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Mounting frame DL5501 chrome

Circular rigidly Socket: GU5,3 Power for LED max. 5W
This text is machine translated.

Technical specifications

Dim: (Ø x H) 80 mm x 65 mm

Product type: Recess bracket

Factory colour: Chrome (glossy)

: n.rel.

No. of bulbs: 1

Type: Circular

Operating voltage: 12 V

Recess diameter: 55 mm

Recess depth: 60 mm

Weight: 41 g

Cable length: 10 cm

Rating per bulb: 5 W

Material: Steel

Height: 65 mm

(Ø): 80 mm

: IP20

Protection class: III

: GU5.3

Light bulb included: No

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2638227 Heitronic DL5501 23232 Recess bracket IP20 Chrome (glossy)

User & Safety Instructions

User & Safety Instructions 2638227 Heitronic DL5501 23232 Recess bracket IP20 Chrome (glossy)

Warranty Terms

Warranty Terms 2638227 Heitronic DL5501 23232 Recess bracket IP20 Chrome (glossy)

Features

Casing made of sheet steelVoltage: 12VPower: Max. 35W halogen, LED max. 7WFor GU5.3 lampsRigid designWith 100 mm connecting cable + free endsFor Indoor use.

Scope of delivery

Mounting frame DL5501
User manual.

Description

Features

Casing made of sheet steelVoltage: 12VPower: Max. 35W halogen, LED max. 7WFor GU5.3 lampsRigid designWith 100 mm connecting cable + free endsFor Indoor use.

Scope of delivery

Mounting frame DL5501
User manual.
