Heitronic DL6801 23240 Recess bracket IP44 White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

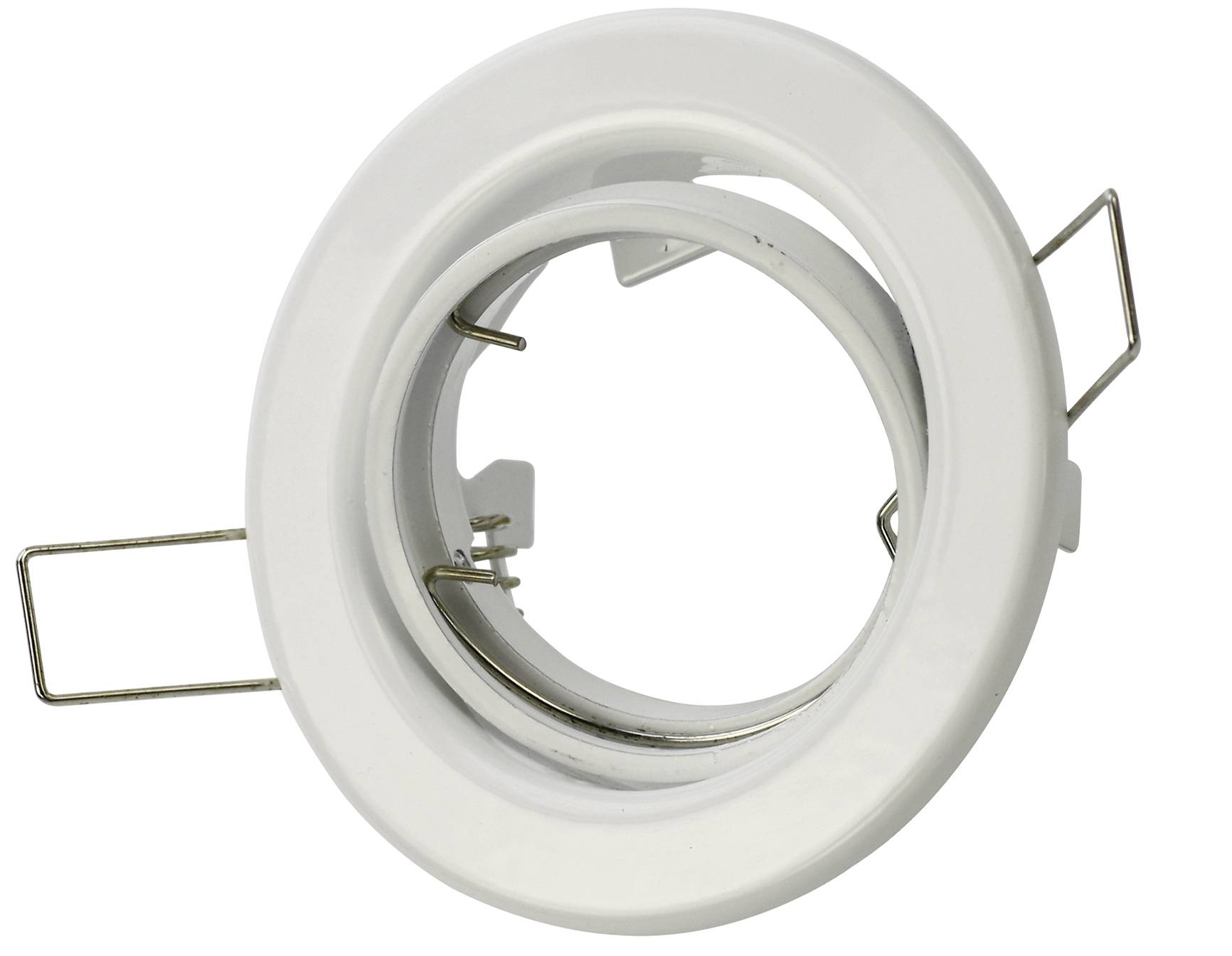

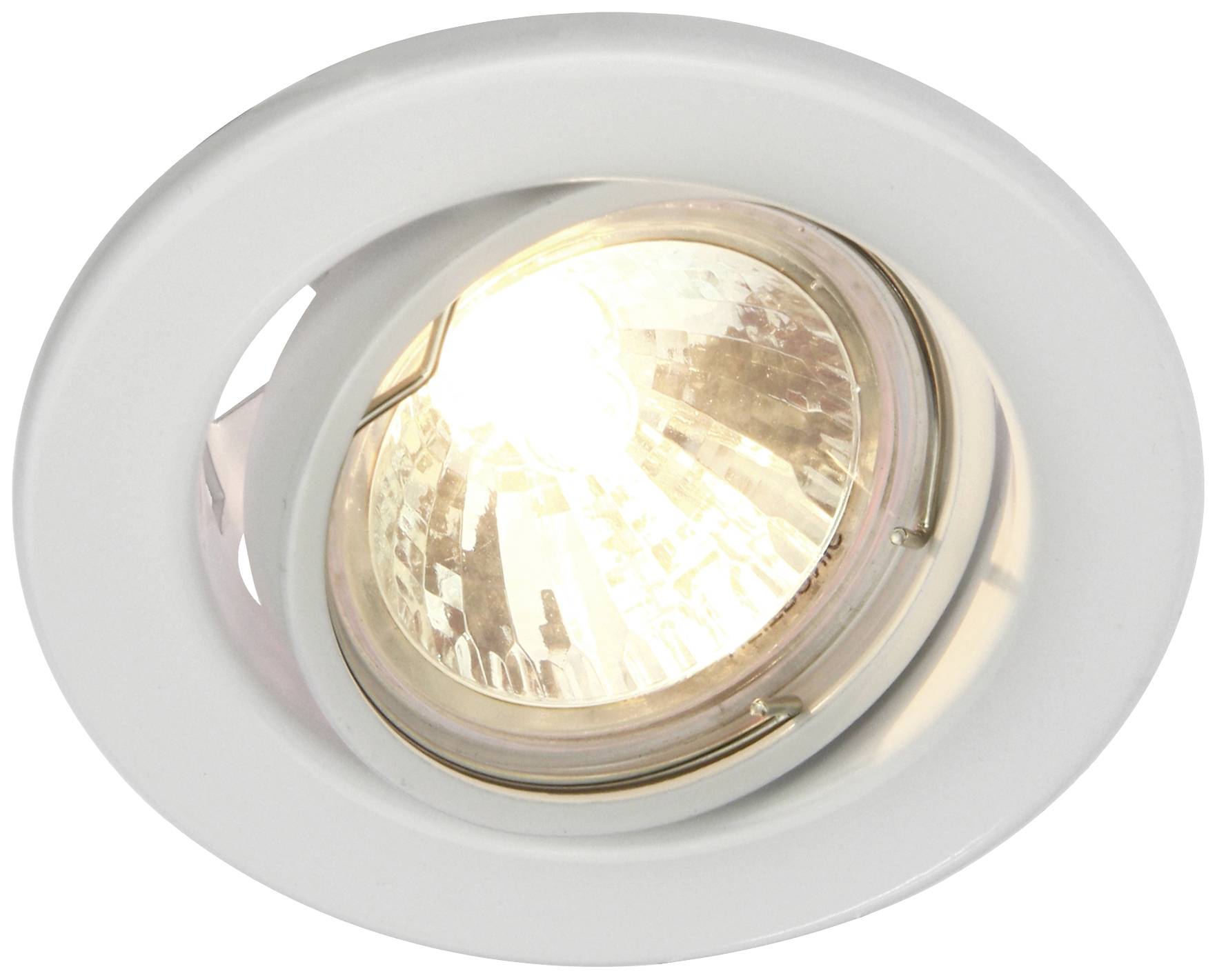

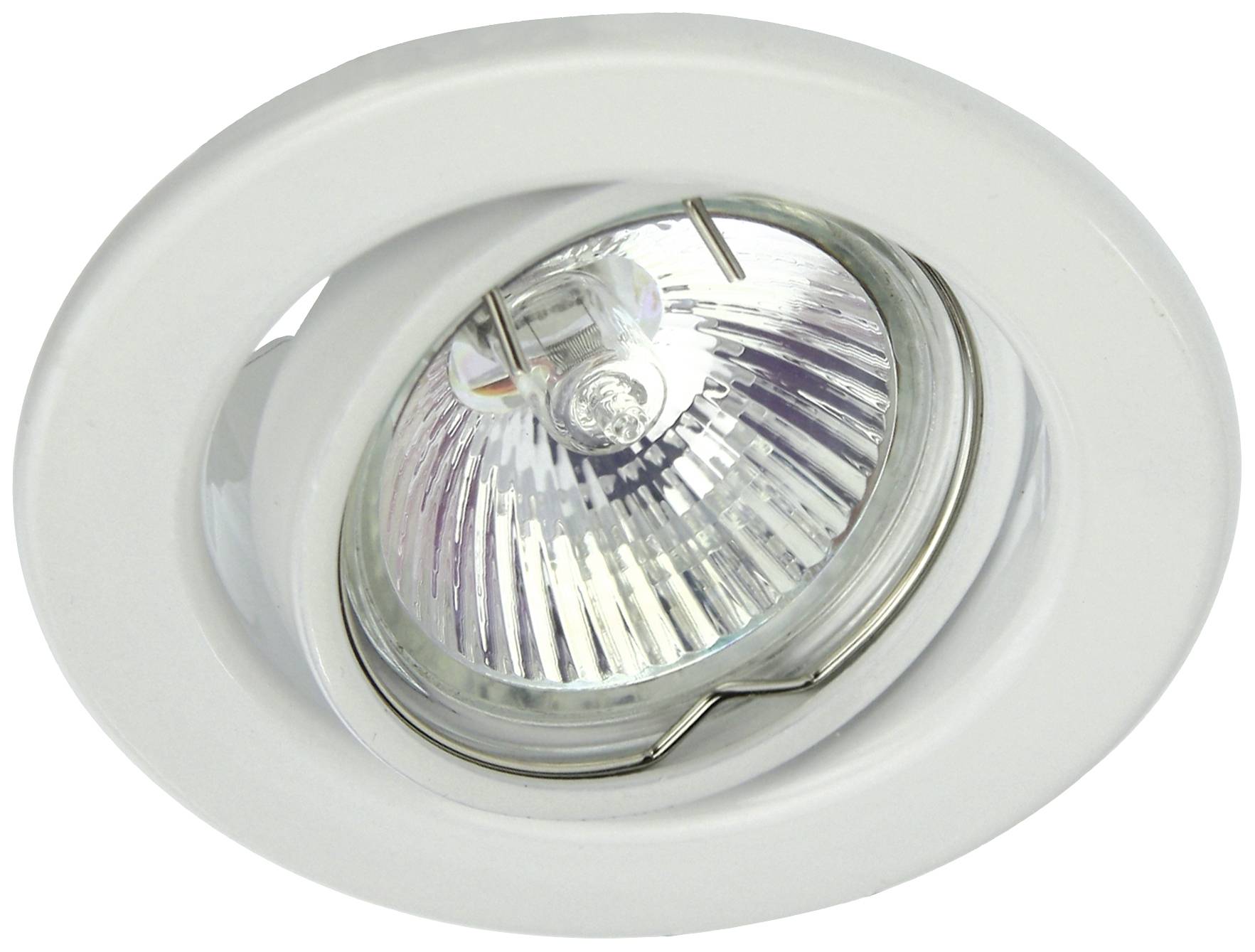

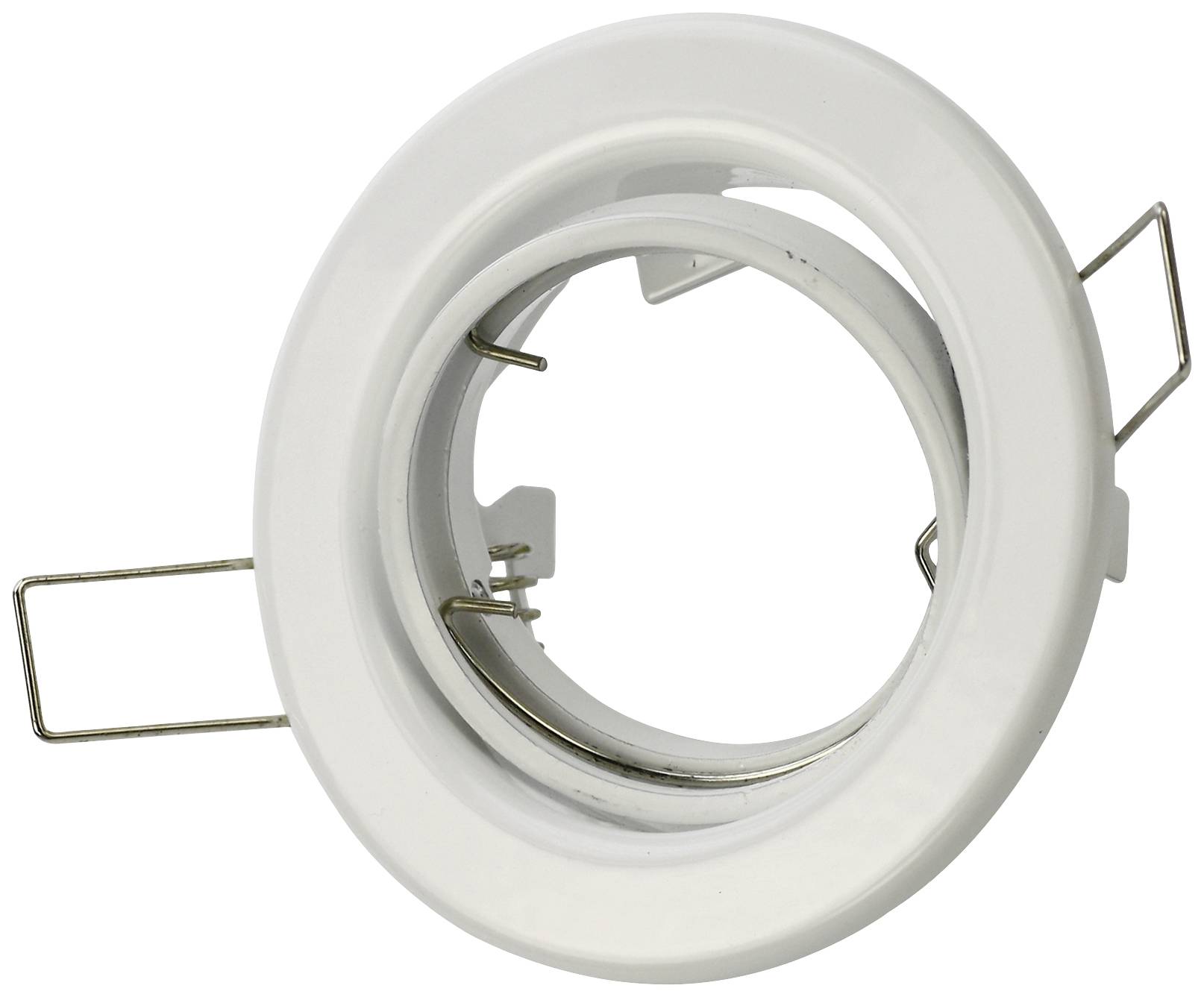

Panel-mounted emitter DL6801 white
- Circular pivoting 30° Suitable for GU5.3 LED max. 5W100 mm cable and AMP plug
- This text is machine translated.
Technical specifications
- Dim
(Ø x H) 90 mm x 64 mm
- Product type
Recess bracket
- Factory colour
White
n.rel.
- No. of bulbs
1
- Type
Circular
- Operating voltage
12 V
- Recess diameter
68 mm
- Recess length
60 mm
- Weight
344 g
- Cable length
10 cm
- Material
Steel
- Height
64 mm
- (Ø)
90 mm
IP44
- Protection class
II
- Light bulb included
Yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2638223 Heitronic DL6801 23240 Recess bracket IP44 White
User & Safety Instructions
User & Safety Instructions 2638223 Heitronic DL6801 23240 Recess bracket IP44 White
Warranty Terms
Warranty Terms 2638223 Heitronic DL6801 23240 Recess bracket IP44 White
Description
Features
- Casing made of steelVoltage: 12VChangeable bulbFor GU5.3 bulb max. 35 Watt halogen or 15 Watt LEDWith 100 mm connection cable + AMP plugPivoting spotlight 30 degreesFor Indoor use.
Scope of delivery
- Panel-mounted emitter DL6801
- User manual.
