Heitronic DUPLEX VO-501425 LED floodlight
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Heitronic LED twin floodlight DUPLEX
- Total luminous flux= 1200 lm
- Colour temperature= 6500 K
Technical specifications
- Dim. (W x H x D) Solar panel 181 x 186.1 x 128.7 mm
- Product type
LED floodlight
- Bulb type
LED (monochrome)
6500 K
- Total luminous flux
1200 lm
- PIR detection angle (horizontal)
160°
- Coverage max. (width)
10 m
- Adjustable on-time (min.)
10 s
- Adjustable on-time (max.)
60 s
- Light features
Battery-powered
Incl. motion detector
- Protection class
III
IP54
- Factory colour
Black
- Material
Acrylonitrile butadiene styrene
PC

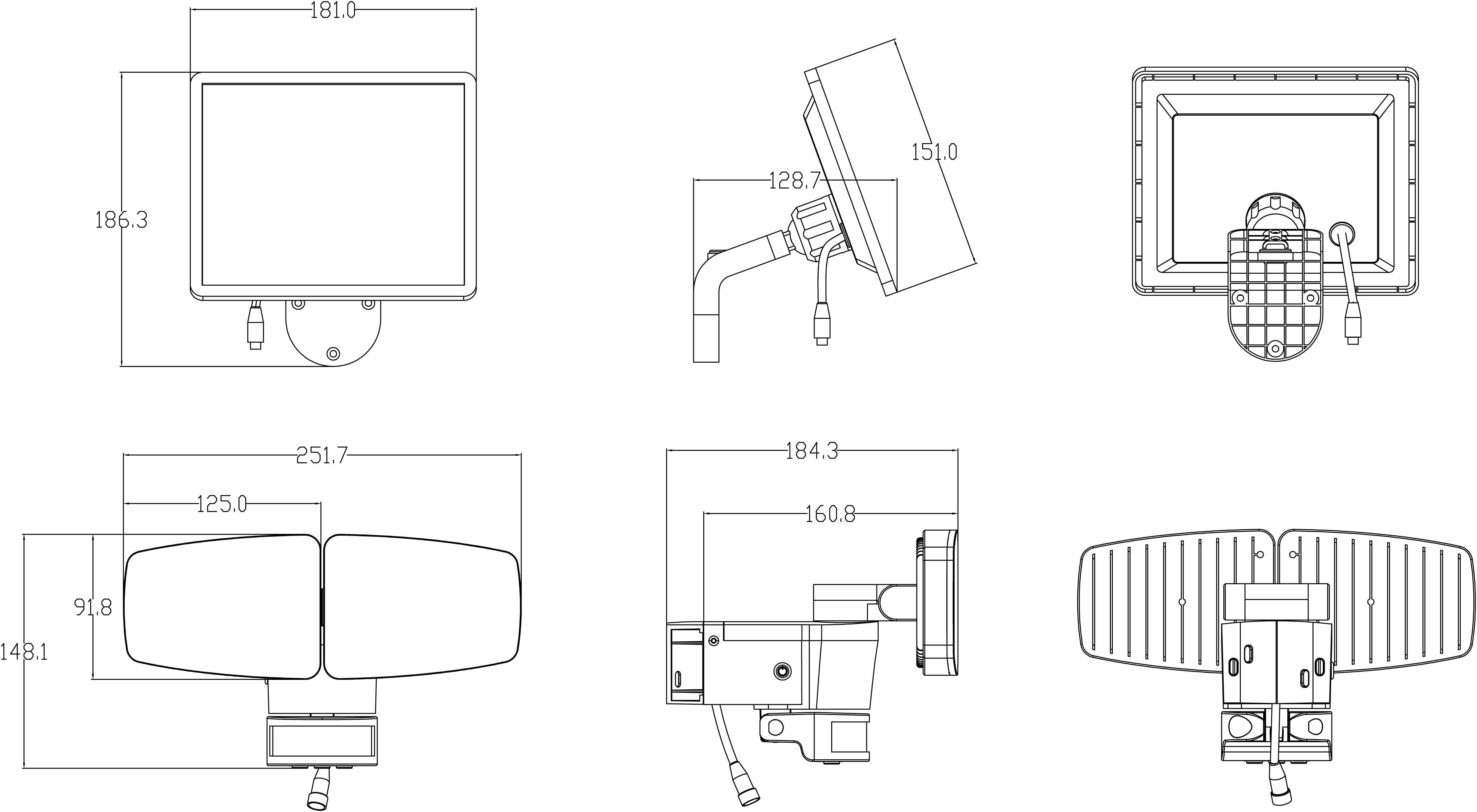

- Dim
(W x H x D) 251.7 x 148.1 x 184.3 mm
n.rel.
- Light bulb included
Yes
- Width
251.7 mm
- Height
148.1 mm
- Depth
184.3 mm
Documents & Downloads
Datasheet
Datasheet 3219895 Heitronic DUPLEX VO-501425 LED floodlight
User & Safety Instructions
User & Safety Instructions 3219895 Heitronic DUPLEX VO-501425 LED floodlight
Description

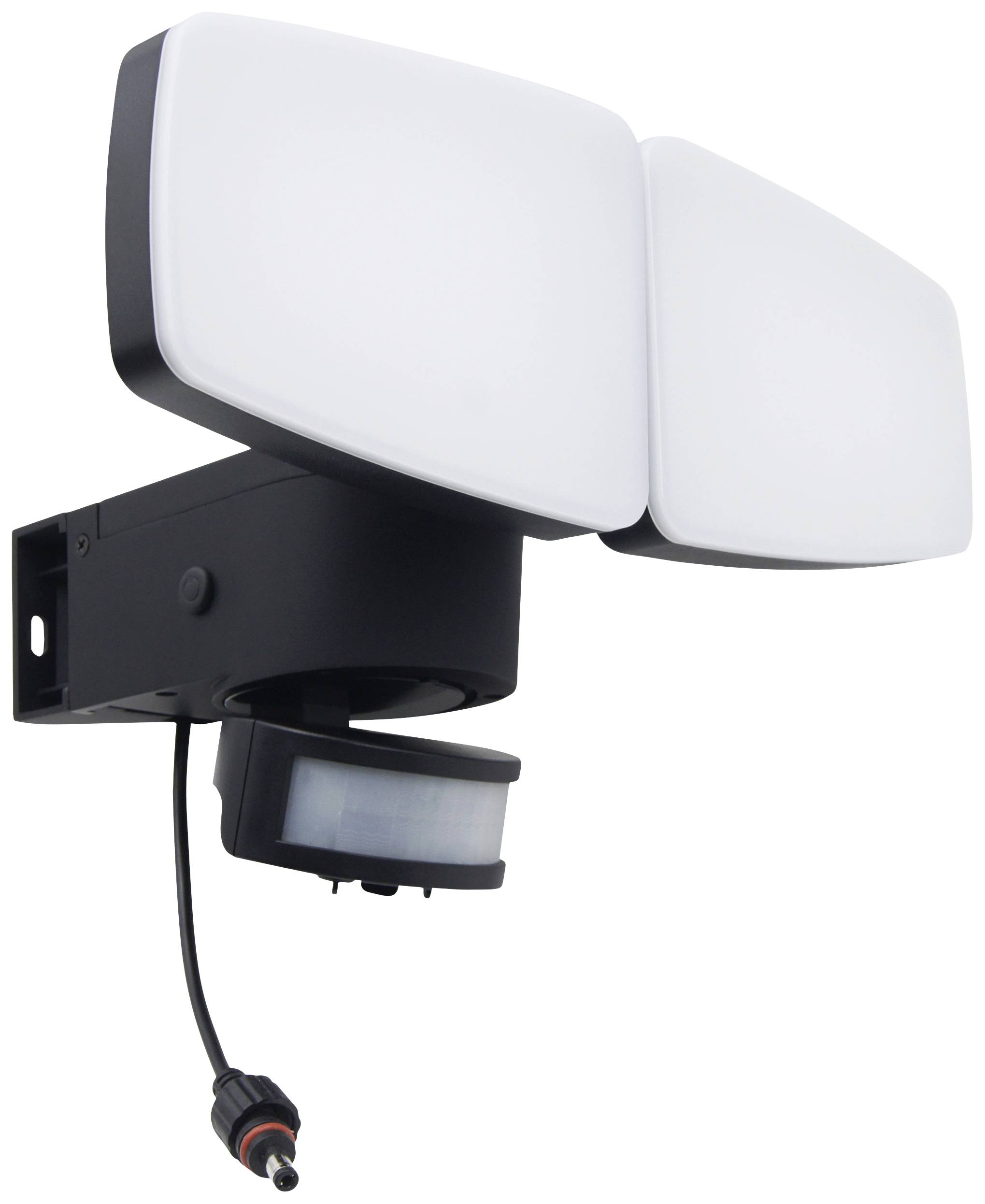

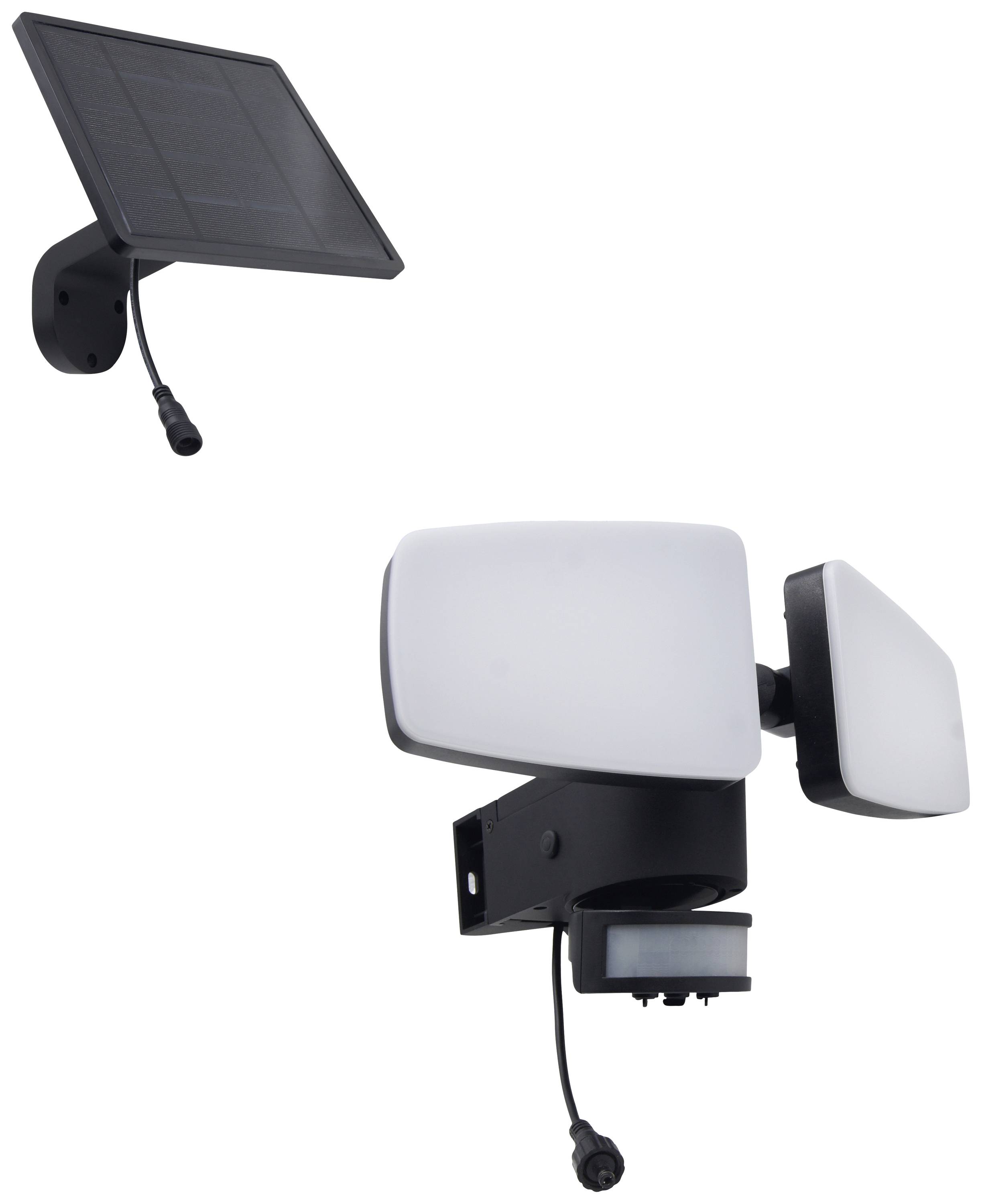

Heitronic LED double floodlight DUPLEX with two moving LED panels for optimum alignment.
This text is machine translated.
This text is machine translated.
Features
- IP54 Protection class for splash-water protection
- Wide range of applications

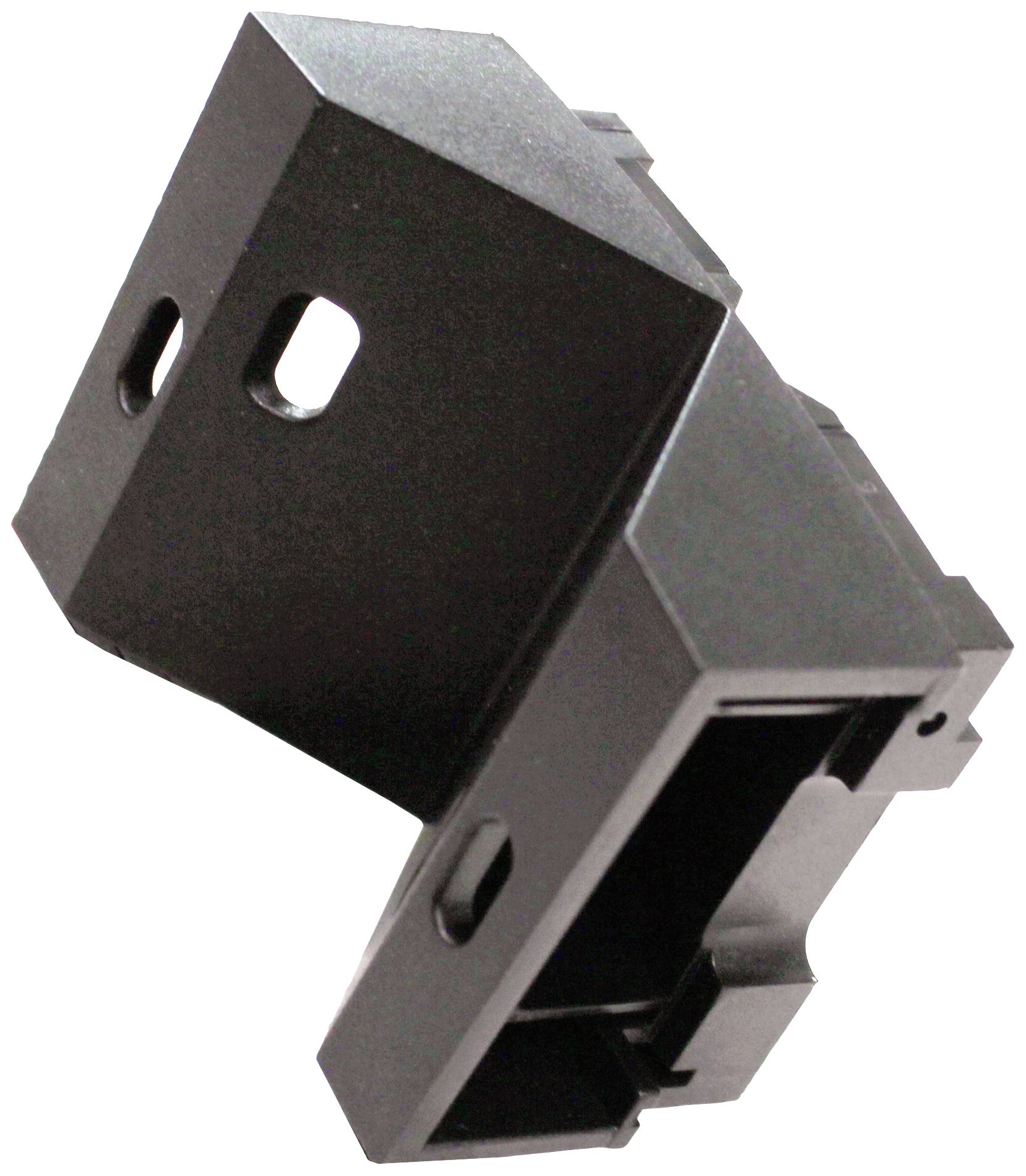

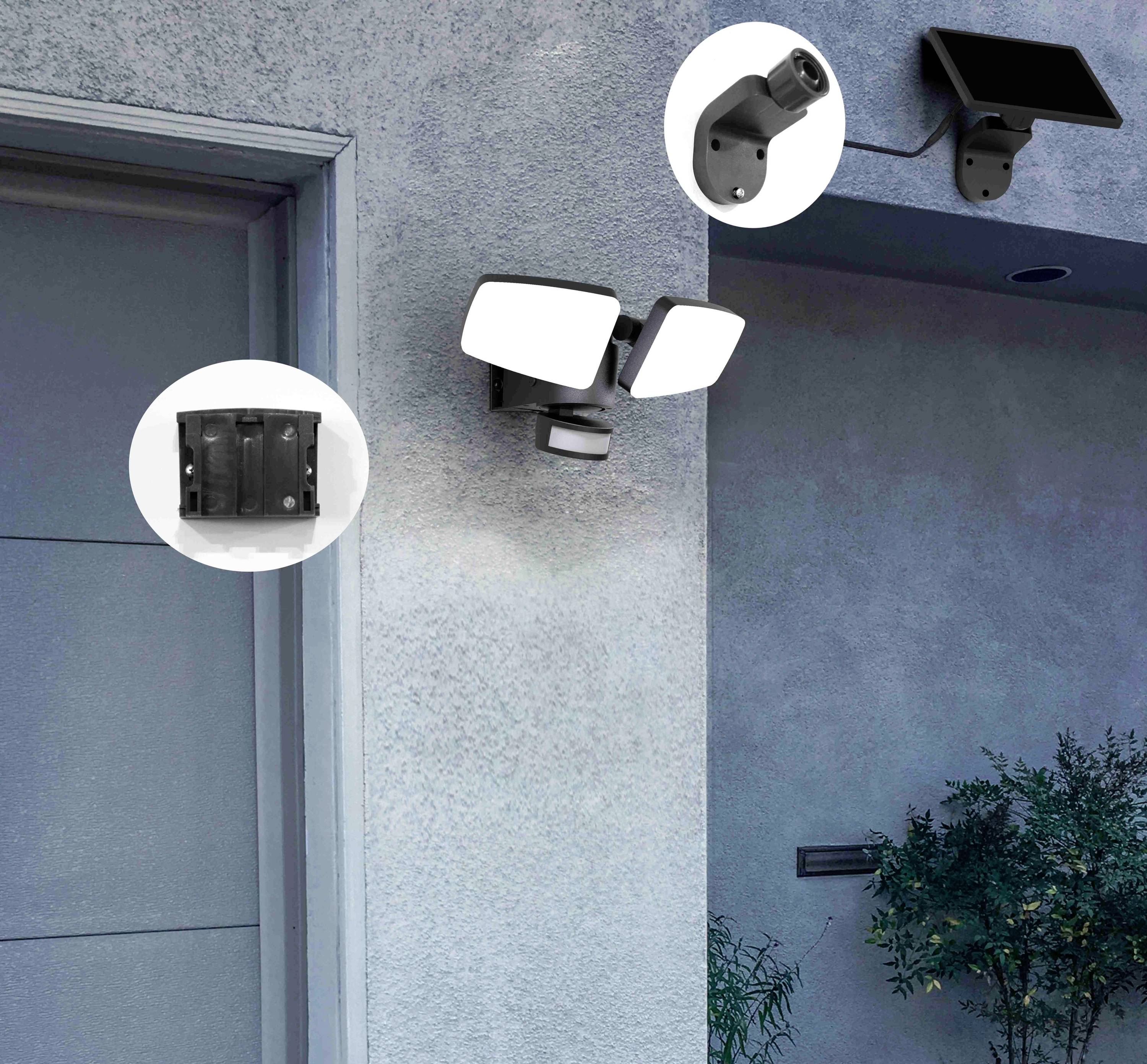

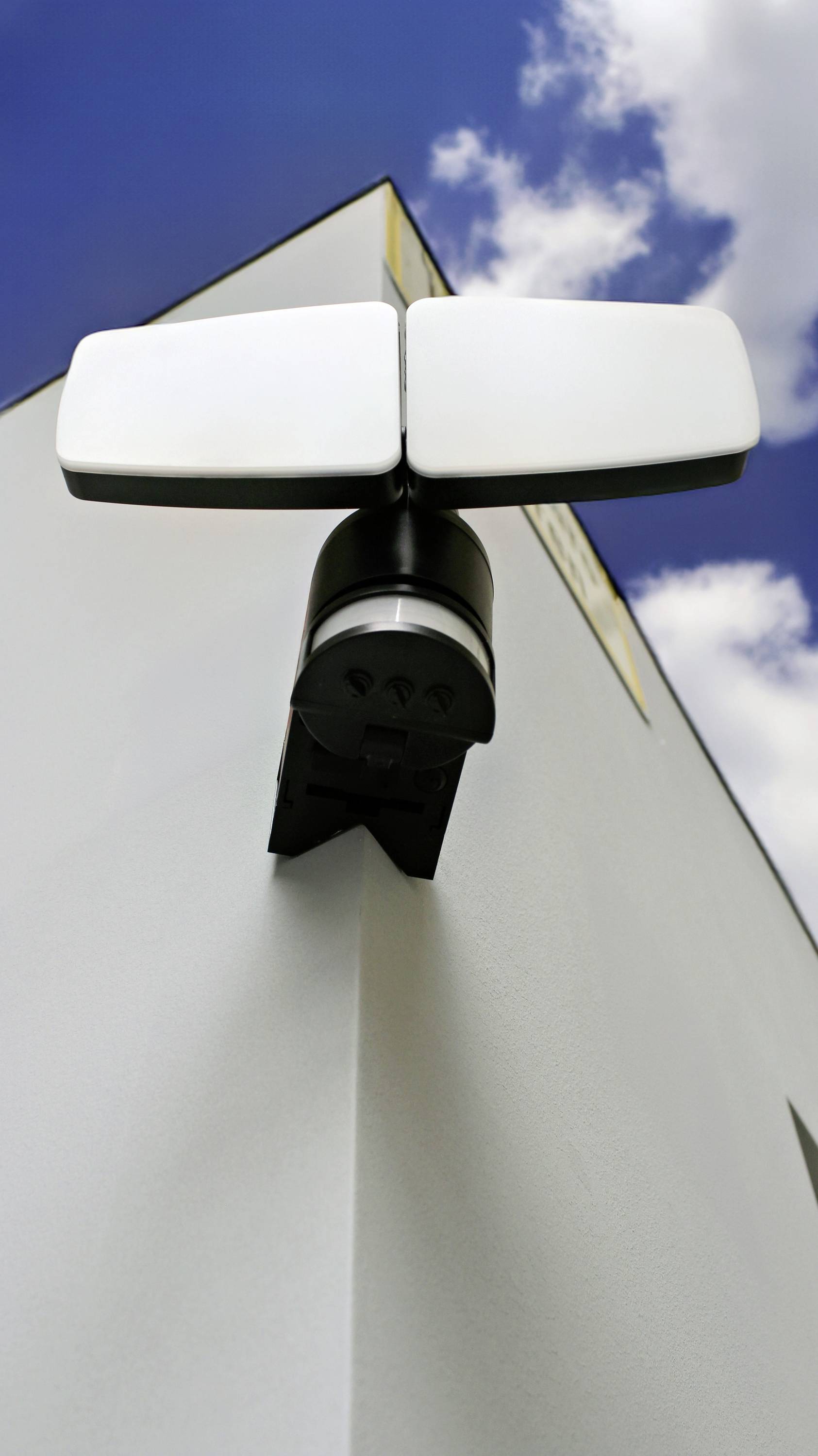

- Optional corner mounting for illumination of two areas

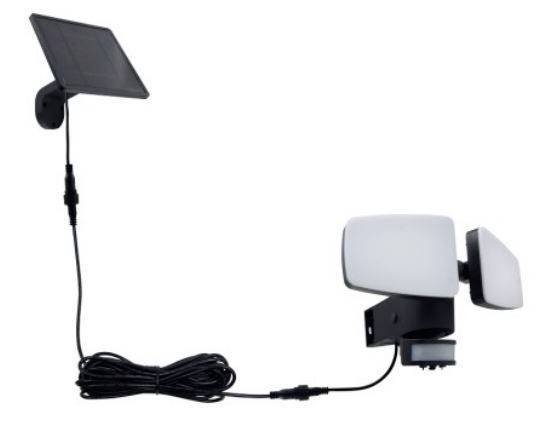

- Direct connection to the solar panel (5.5 V, 600 mA) or optionally via the enclosed 10 m extension cable

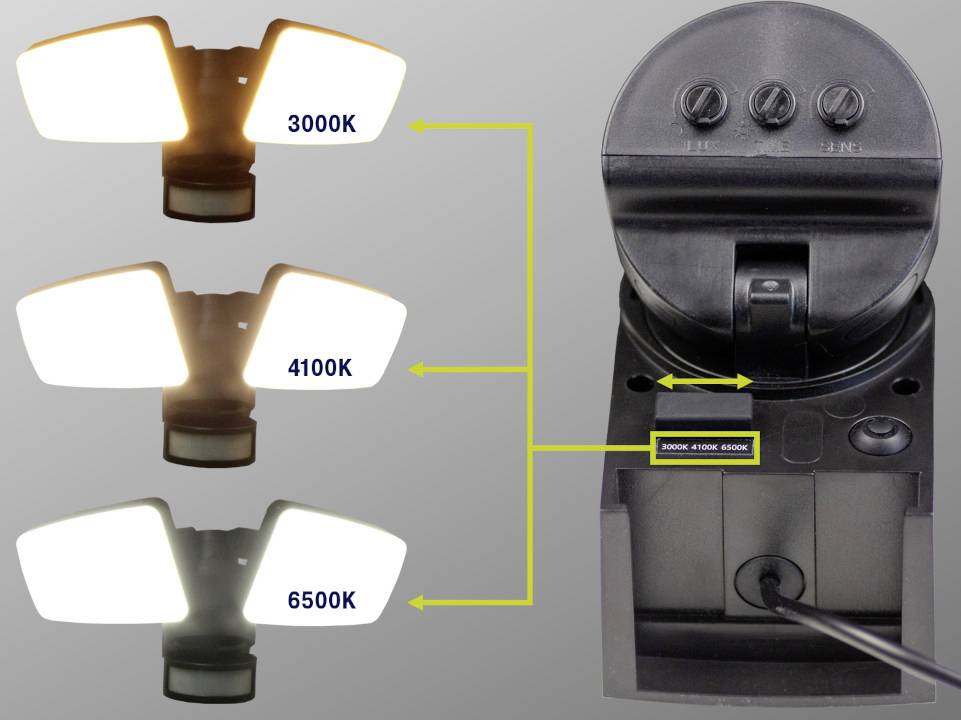

- Adjustable light colors via switch at the lamp 3000 K/4100 K/6500 K
- Housing and diffuser made of PC, black or transparent

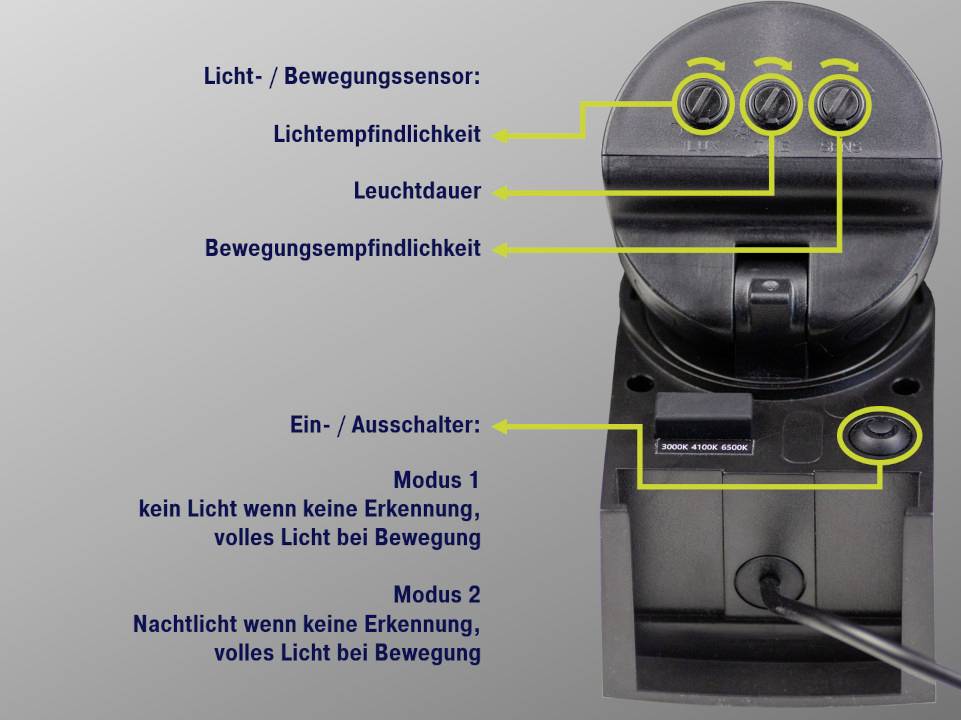

- Motion switch with 160° detection up to 10 m, duty cycle 10 to 60 seconds, 10 to 10,000 Lux
- Li-ion battery 3.7 V, 4400 mAh integrated in the spotlight
- Response brightness 10 to 10000 Lux
- Operating time with full charge: Approx. 1 hour at full lighting, approx. 20 hours with night light modes

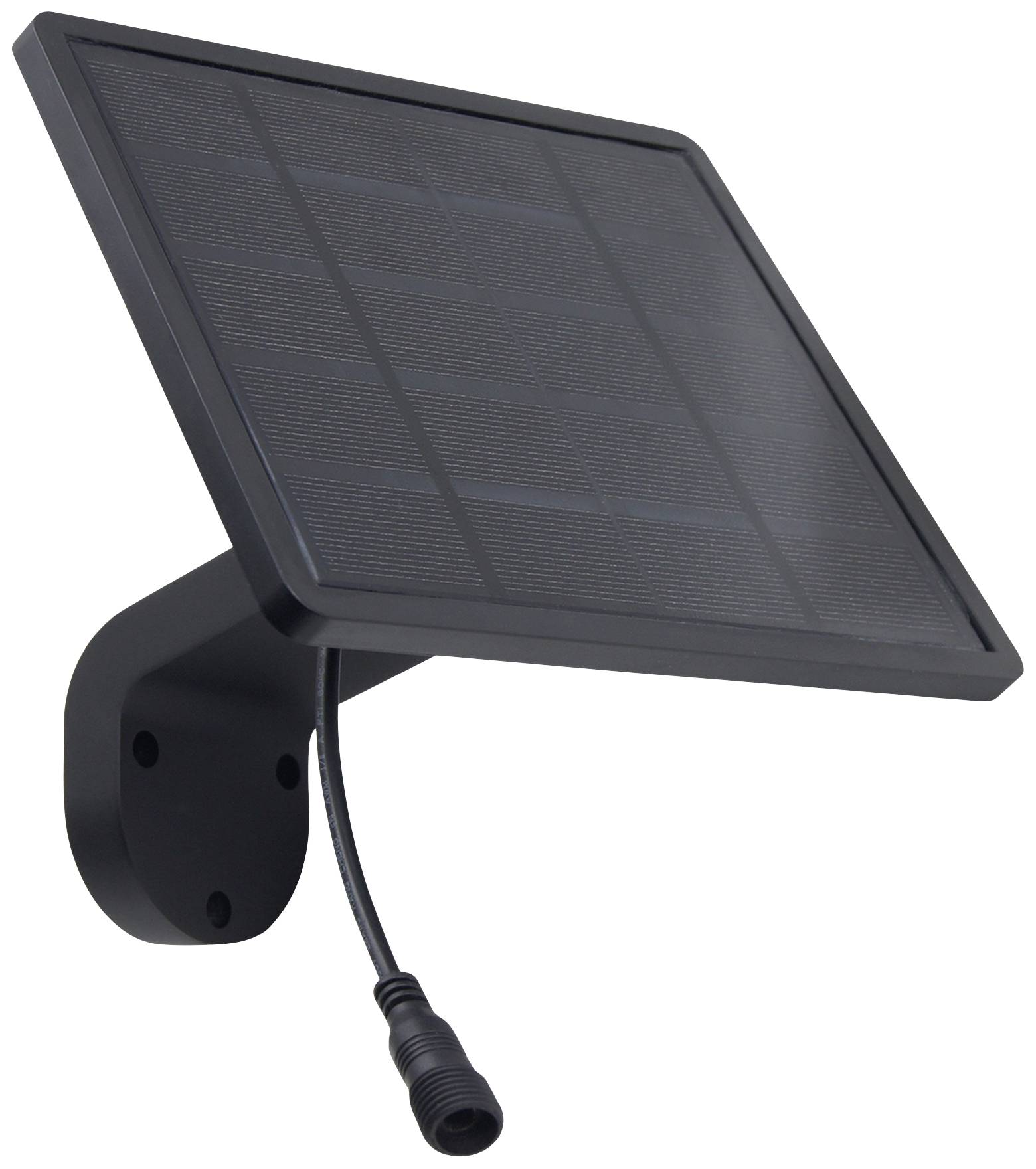

- Solar panel for charging floodlight.
Scope of delivery

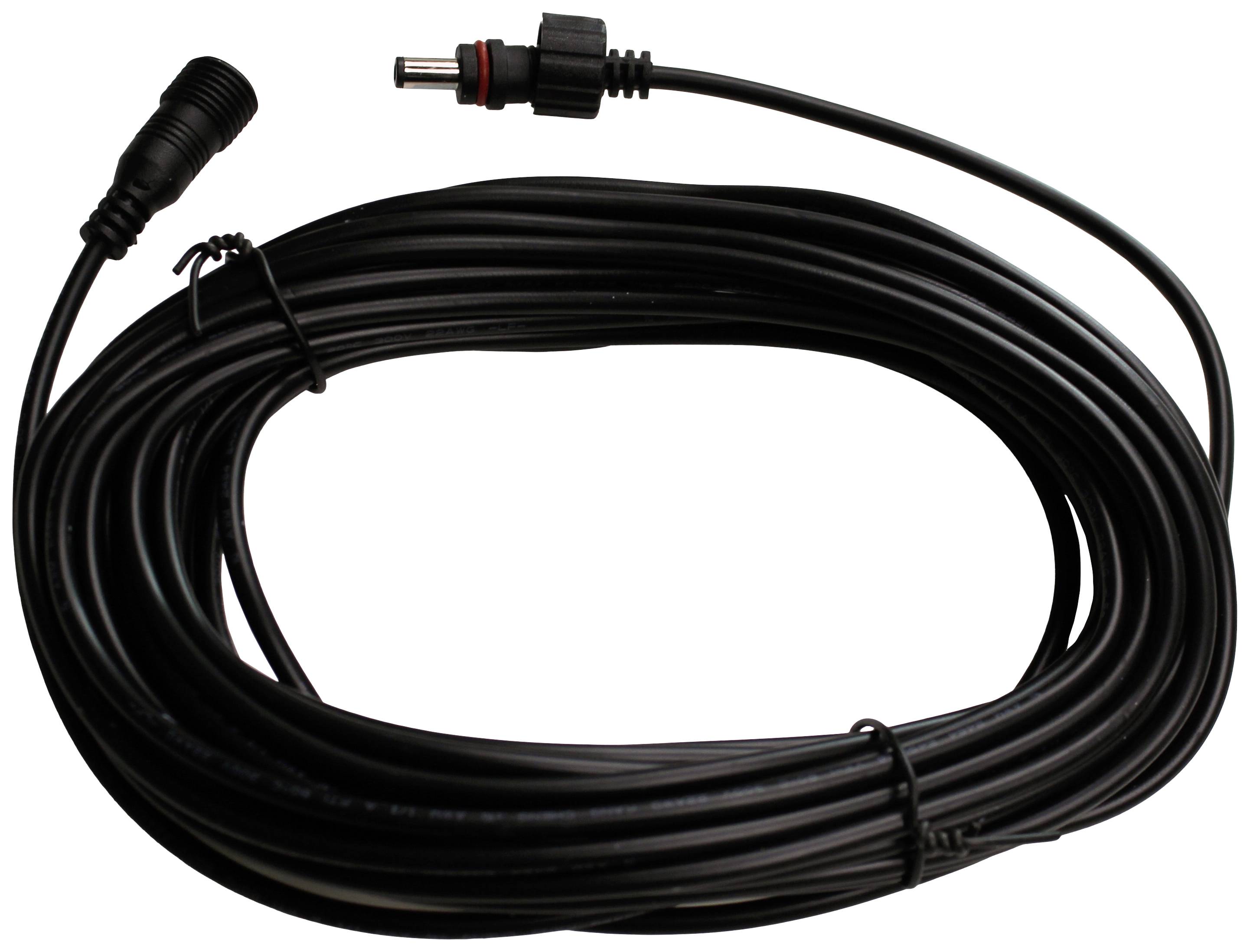

- Incl. 10 m extension cable for connecting the floodlight and the solar panel.
