Hekatron Genius Plus X Modell 2020+Basis X Wireless smoke detector incl. 10-year battery, Wireless retrofit battery-powe
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Hekatron Wireless smoke detector Genius Plus X Modell 2020+Basis X 31-5000030-02-01+31-5200001-11-02 incl. 10-year battery, Wireless retrofit
- Optimised alert for young and old
- Compatible with the new Genius Port via radio
- Acoustic "smartsonic" transmission technology
- Up to 30 smoke detectors can be networked
Technical specifications
- Smoke sensors:
- Protection class: IP40
- Colour: White satin matt, similar to RAL 9003
- Operating temperature: 0 °C to 55 °C
- Radio module:
- Radio frequency: 868 MHz
- Range 100 m max.
- Battery life-span: Typically 10 years supply via smoke detector
- Weight: 10 g
- Product type
Wireless smoke detector
- Power supply (LOV)
battery-powered
- Detector features
incl. 10-year battery
Wireless retrofit
- SPL
85
- Dim
(Ø x H) 104 mm x 48 mm
- Certification
EN14604
VdS-certified
Q-Label
- Content
1 Set
- Height
48 mm
- (Ø)
104 mm
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3307932 Hekatron Genius Plus X Modell 2020+Basis X Wireless smoke detector incl. 10-year battery, Wireless retrofit battery-powe
User & Safety Instructions
User & Safety Instructions 3307932 Hekatron Genius Plus X Modell 2020+Basis X Wireless smoke detector incl. 10-year battery, Wireless retrofit battery-powe
Warranty Terms
Warranty Terms 3307932 Hekatron Genius Plus X Modell 2020+Basis X Wireless smoke detector incl. 10-year battery, Wireless retrofit battery-powe
Description

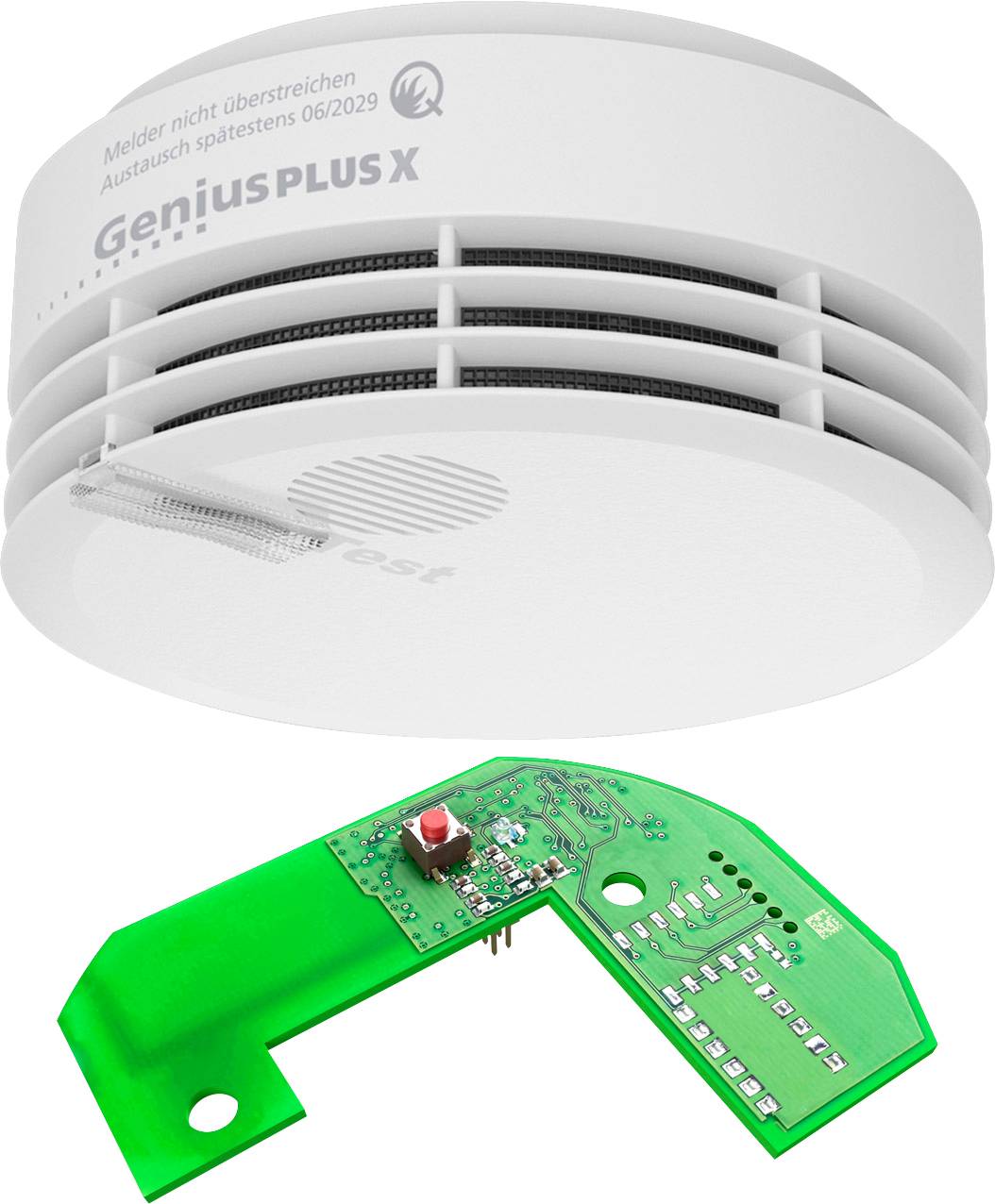

Set consists of: Smoke detector Genius Plus X and radio module Basis X
Smoke detector Genius Plus X
This smart, wireless smoke detector fulfills the highest demands in terms of quality and reliability. This is also confirmed by the results of the "Stiftung Warentest" and the "G+H Lestertest".
Developed in one of the most modern fire protection laboratories in Europe, it meets the highest test criteria of vfdb 14-01 and is therefore permitted to carry the coveted Q-mark as one of the few smoke detectors in Germany. The Genius Plus X can be equipped with the Basic X and Pro X radio modules.
Genius Plus X is the result of a consistent advancement of the successful Genius HX. The Premium smoke detector speaks for smartphones and other smoke detectors and guarantees the earliest possible alarm even in case of larger and multi-level objects.
Basic X radio module for Genius Plus X
Radio module for wireless networking of several smoke detectors Genius Plus X or Genius HX® with each other for a signal of an alarm over the entire area.
This text is machine translated.
Smoke detector Genius Plus X
This smart, wireless smoke detector fulfills the highest demands in terms of quality and reliability. This is also confirmed by the results of the "Stiftung Warentest" and the "G+H Lestertest".
Developed in one of the most modern fire protection laboratories in Europe, it meets the highest test criteria of vfdb 14-01 and is therefore permitted to carry the coveted Q-mark as one of the few smoke detectors in Germany. The Genius Plus X can be equipped with the Basic X and Pro X radio modules.
Genius Plus X is the result of a consistent advancement of the successful Genius HX. The Premium smoke detector speaks for smartphones and other smoke detectors and guarantees the earliest possible alarm even in case of larger and multi-level objects.
Basic X radio module for Genius Plus X
Radio module for wireless networking of several smoke detectors Genius Plus X or Genius HX® with each other for a signal of an alarm over the entire area.
This text is machine translated.
Features
- Smoke sensors:
- Maximum sustainability thanks to environmentally friendly production
- Optimised alert for forwarding alarm and fault forwarding via radio to the new Genius Port
- 10 years no battery purchase or battery replacement
- Extensive analysis possibilities thanks to Genius Home and Pro APP
- Intuitive detection of the state through multi-colored LED
- Bedroom suitable thanks to night time interference suppression
- Tested only 1 times a year thanks to permanent self-monitoring
- Optionally wireless networking can be done with the radio modules Basis X, Pro or Pro X
- Service support with pollution forecast for the next 15 months
- Radio module:
- Fast alarm forwarding and alarm localization
- Power supply via Genius Plus X, typical battery life of 10 years
- VdS 3515, VdS G 215027
- Fire protection made in Germany
- Repeater for transfer of alarm
- Identification code.
Scope of delivery
- Smoke detector Genius Plus X
- Fitting Material
- User manual
- Radio module base X
- Rubber rings to secure the wireless module
- Quick guide.
Hints
Please note that the battery is fixed in the smoke detector and cannot be replaced.
