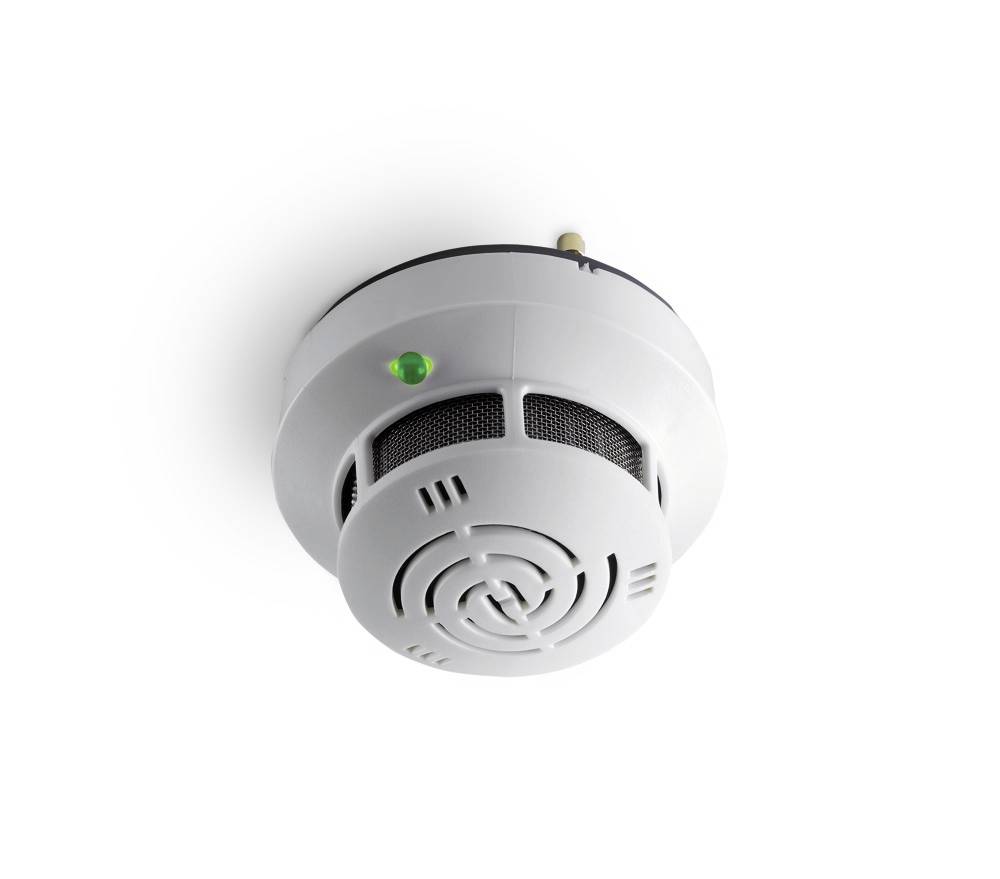

Hekatron ORS 142 K Smoke detector (Ø x D) 80 mm x 33 mm
EAN:
Part number:
Item no:
Technical specifications
- Effective principle: Optical
- Optical message: Yes
- Acoustic message: No.
- Response temperature 70 °C
- Smoke detector: Yes
- Mounting type: Installation
- Self-adhesive: No.
- Separate base required: Yes
- Suitable for duct mounting: Yes
- Primary power supply: Mains operation
- Voltage type of supply voltage: DC
- Supply voltage DC 18..28 V
- With voltage display: Yes
- Number of contacts as NC contacts: 1
- Voltage type of the operating voltage: DC
- Operating voltage DC 18..28 V
- Colour: white
- RAL number (similar): 9010
- Protection class (IP) IP40
- Explosion-tested version: No.
- IFTTT support available: No.
- Height/depth 33 mm
- Diameter 80 mm
- VdS approved: No.
- Product type
Smoke detector
- Dim
(Ø x D) 80 mm x 33 mm
- Content
1 pc(s)
- Depth
33 mm
- (Ø)
80 mm
- Factory colour
White
IP40
- Mounting type
Recess-mount
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795824 Hekatron ORS 142 K Smoke detector (Ø x D) 80 mm x 33 mm
Description
Optical smoke detector for monitoring ventilation cables, controlling fire and smoke dampers and other applications.
This text is machine translated.
This text is machine translated.
Hints
The smoke detector itself must never be connected directly to 230 V alternating current!
A suitable Hekatron power supply unit or central alarm unit is required for supplying power from the 230 V home network.
