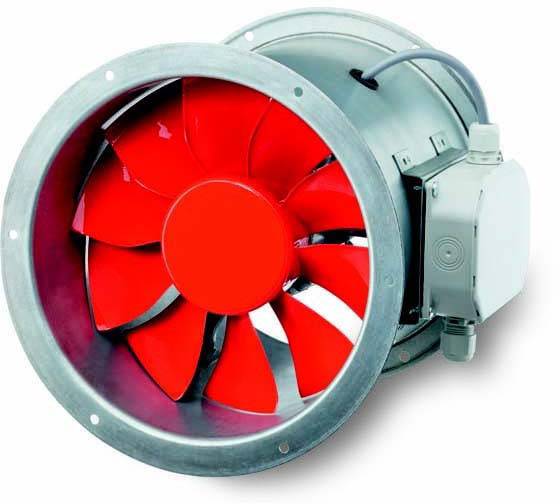

Image similar
Helios Ventilatoren 00390 Axial fan 400 V 2110 m³/h 250 mm
EAN:
Part number:
Item no:
Technical specifications
- Connection: Flange
- Design: Axial high performance fan
- Electrical connection: Terminals
- Suitable for electronic control: Yes
- Suitable for frequency control: no.
- Suitable for low current control: no.
- Suitable for transformer control: Yes
- Channel diameter 250 mm
- Max. Air temperature 60 °C.
- With thermal protection: Yes
- 2 speed motor: Yes
- Pole-switchable: Yes
- Housing material: Steel, treated
- Product type
Axial fan
- Nominal voltage
400 V
- Air flow rate
2110 m³/h
- Ventilation features
Adjustable
- Suitable for pipe Ø
250 mm
IP55
- Material
Steel
- Dim
(Ø x L) 305 mm x 300 mm
- Length
300 mm
- (Ø)
305 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292505 Helios Ventilatoren 00390 Axial fan 400 V 2110 m³/h 250 mm
Description
Axial high-performance fan cylindrical tube sleeve, flange on both sides, directly driven. Cylindrical tube made of galvanized sheet steel, enclosed with impeller, flange molded on both sides, hole pattern according to DIN 24155. With external terminal box. Impeller with high-performance characteristics with profiled plastic blades, aerodynamically optimized for application, dynamically balanced. Three-phase short-circuit rotor motor, with Dahlander winding (pole-switchable), closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
