Helios Ventilatoren 05889 In-line extractor 230 V 310 m³/h 180 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
In-line extractor
- Nominal voltage
230 V
50 W
- Rotational speed
2780 U/min
- Air flow rate
310 m³/h
- Suitable for pipe Ø
180 mm
- Max. temperature
50 °C
- Material
Plastic
- Weight
3.85 kg
- Dim
(L x W x H) 260 x 240 x 195 cm
- Width
240 cm
- Height
195 cm
- Length
260 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297485 Helios Ventilatoren 05889 In-line extractor 230 V 310 m³/h 180 mm
Description

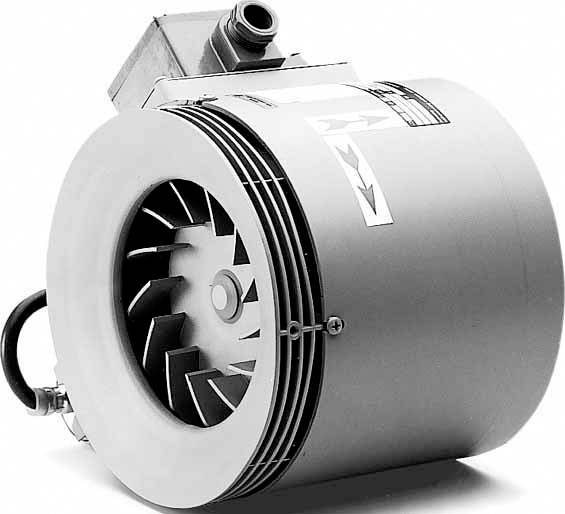

Radial pipe fan RADAX RR for direct mounting in the pipe system. High-performance radial impeller with backward curved blades made of plastic. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Single-phase AC capacitor motor Closed construction, maintenance and non-interference free, sealed, low-noise ball bearings with long-term lubrication, winding impregnated with moisture protection.
