Helios Ventilatoren 05890 Duct extractor fan 230 V 560 m³/h 200 mm
EAN:
Part number:
Item no:
Technical specifications
- Design: Radial-pipe fan
- Frequency: 50 Hz
- Channel diameter 200 mm
- Medium temperature: 50 °C.
- Product type
Duct extractor fan
- Nominal voltage
230 V
- Air flow rate
560 m³/h
- Suitable for pipe Ø
200 mm
IP54
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292446 Helios Ventilatoren 05890 Duct extractor fan 230 V 560 m³/h 200 mm
Description

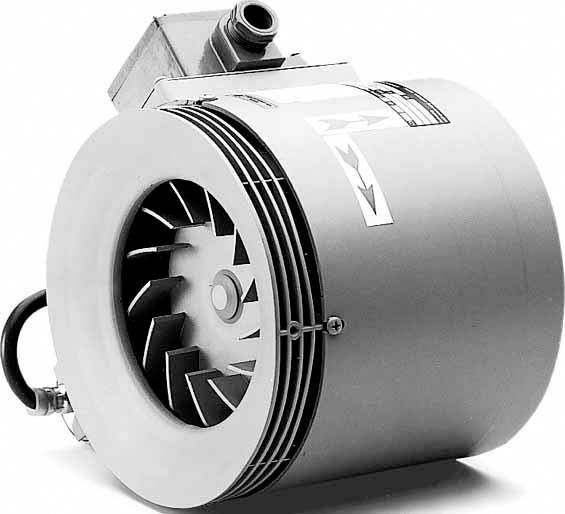

Radial pipe fan RADAX RR for direct mounting in the pipe system. Housing made of high-quality, unbreakable and antistatic plastic. Surface resistance less than 1 GOhm. Explosion protection E exe II 2G, increased safety. EC-type test certificate according to ATEX present. High-performance radial impeller with backward curved blades made of plastic. Vibration-free running through dynamic balancing according to quality grade G 6.3 VDI 2060 and DIN ISO 1940. Single-phase AC capacitor motor Closed construction, maintenance and non-interference free, sealed, low-noise ball bearings with long-term lubrication, winding impregnated with moisture protection.
