Helios Ventilatoren 06457 Radial extractor 1170 m³/h 200 mm
EAN:
Part number:
Item no:
Technical specifications
- Height: 408 mm
- Width 474 mm
- Protection class (IP) IP55
- Material of housing: Steel
- Length: 470 mm
- With thermal protection: Yes
- Power consumption 0.2 kW
- Connection: Flange
- Electrical connection: Connection terminals
- Air quantity unloaded: 1170 m³/h.
- Connection voltage 400 V
- DC motor: No.
- Indirect drive: No.
- Max. Air temperature 100°C.
- 2 speed engine: Yes
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Outlet duct diameter 200 mm
- Product type
Radial extractor
0.2 kW
- Air flow rate
1170 m³/h
- Suitable for pipe Ø
200 mm
- Max. temperature
100 °C
- Material
Steel
- Dim
(L x W x H) 470 x 474 x 408 mm
- Width
474 mm
- Height
408 mm
- Length
470 mm
- Depth
470 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552876 Helios Ventilatoren 06457 Radial extractor 1170 m³/h 200 mm
Description

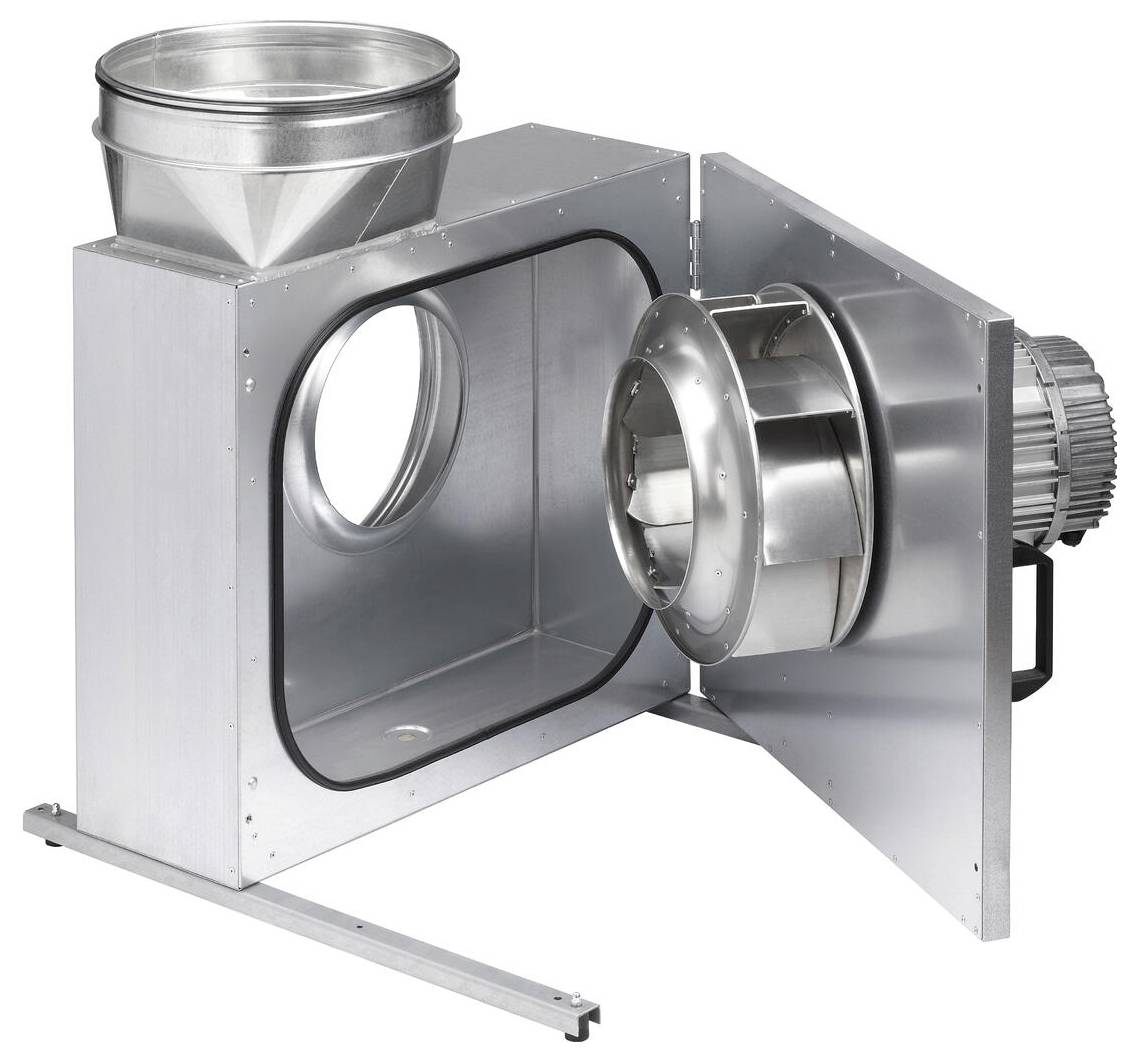

Noise-enclosed radial fan with rotating motor impeller unit and motor lying outside the air flow. Double-walled housing made of zinc-plated steel sheet, soundproofed by lining with 30 mm thick mineral wool insulation material plates. Suction and pressure side pipe connection nozzle with rubber lip seal matched to standard diameter. Fully hinged fan door for inspection and cleaning. Inclusive Stable mounting rails with four vibration dampers. Condensate drain and drip protection with open door as standard. High-power radial impeller with backward curved blades made of aluminum. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Three-phase motor with star/delta connection, closed design, maintenance-free, with thermal contact, sealed Low-noise ball-bearing with long-term lubrication.
