Helios Ventilatoren 06458 Radial extractor 1620 m³/h 250 mm
EAN:
Part number:
Item no:
Technical specifications
- Height: 446 mm
- Width 520 mm
- Protection class (IP) IP55
- Material of housing: Steel
- Length: 470 mm
- With thermal protection: Yes
- Power consumption 0.3 kW
- Connection: Flange
- Electrical connection: Connection terminals
- Air quantity unloaded: 1620 m³/h.
- Connection voltage 230 V
- DC motor: No.
- Indirect drive: No.
- Max. Air temperature 100°C.
- Motor with 2 speeds: No.
- Suitable for electronic control: Yes
- Suitable for frequency control: No.
- Suitable for low current control: No.
- Suitable for transformer control: Yes
- Outlet duct diameter 250 mm
- Product type
Radial extractor
0.3 kW
- Air flow rate
1620 m³/h
- Suitable for pipe Ø
250 mm
- Max. temperature
100 °C
- Material
Steel
- Dim
(L x W x H) 470 x 520 x 446 mm
- Width
520 mm
- Height
446 mm
- Length
470 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552878 Helios Ventilatoren 06458 Radial extractor 1620 m³/h 250 mm
Description

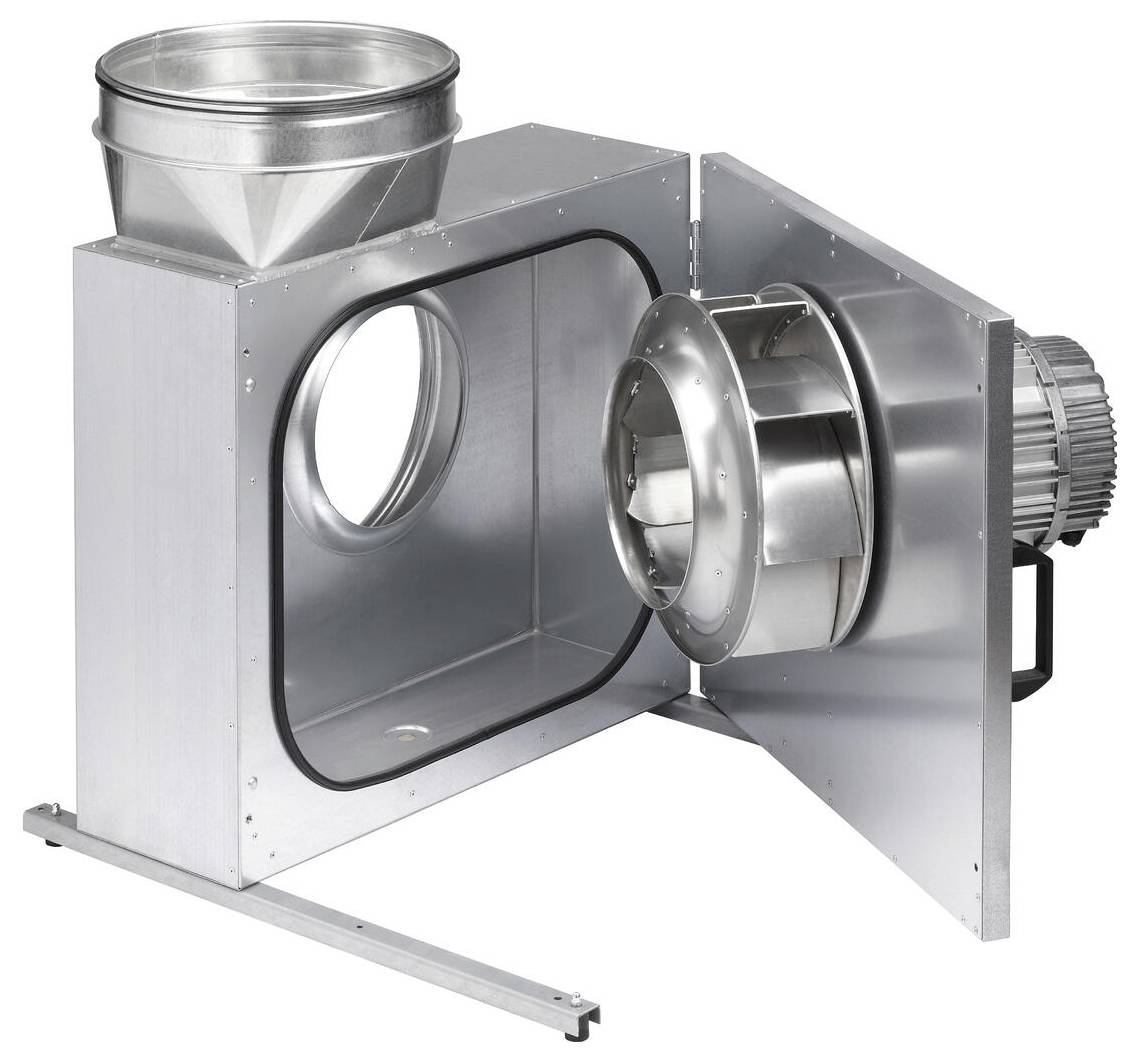

Noise-enclosed radial fan with rotating motor impeller unit and motor lying outside the air flow. Double-walled housing made of zinc-plated steel sheet, soundproofed by lining with 30 mm thick mineral wool insulation material plates. Suction and pressure side pipe connection nozzle with rubber lip seal matched to standard diameter. Fully hinged fan door for inspection and cleaning. Inclusive Stable mounting rails with four vibration dampers. Condensate drain and drip protection with open door as standard. High-power radial impeller with backward curved blades made of aluminum. Vibration-free operation thanks to dynamic balancing according to quality level G 6.3 VDI 2060 and DIN ISO 1940. Single-phase alternating current capacitor motor, closed type, maintenance-free, with thermal contacts built into the winding, variable speed through voltage reduction, sealed, low-noise ball bearings with long-term lubrication, not reversible.
